Description

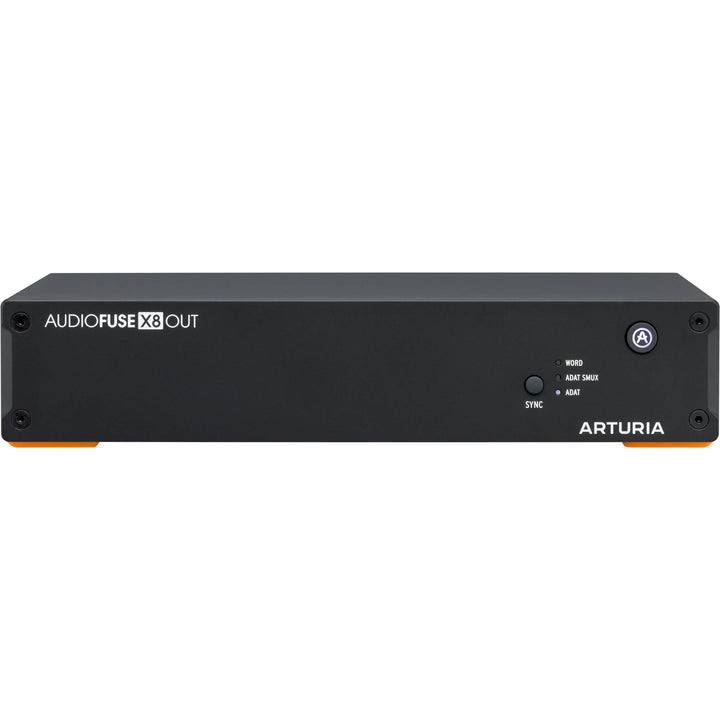

The Arturia AudioFuse X8 Out is an 8-channel ADAT-to-analog output expander that adds eight DC-coupled 1/4" TRS outputs to any ADAT-equipped audio interface. Two ADAT optical inputs support standard 8-channel operation at 44.1/48 kHz or 4-channel SMUX mode at 88.2/96 kHz. Cirrus Logic DACs deliver 24-bit conversion with 120.5 dB dynamic range. Word clock BNC input ensures tight synchronization with your main interface. The half-rack aluminum chassis includes removable rack ears for mounting alongside other half-rack modules.
Conversion
- DAC: 24-bit Cirrus Logic
- Sample rates: Up to 96 kHz
- Dynamic range: 120.5 dB
- Channels: 8 at 44.1/48 kHz, 4 at 88.2/96 kHz (SMUX)

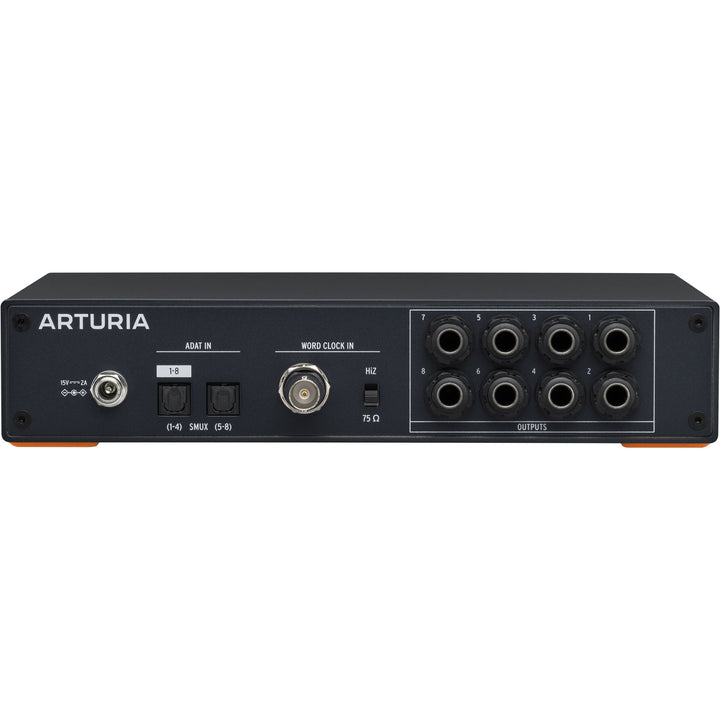

Connectivity
- Analog outputs: 8x DC-coupled 1/4" TRS
- Digital inputs: 2x ADAT optical
- Clock: Word clock BNC input
Specifications
- Dimensions: 221 x 216 x 48 mm (8.70 x 8.50 x 1.89 in)
- Weight: 1.38 kg (3.04 lbs)
- Chassis: Half-rack aluminum with removable rack ears
In the Box
- Arturia AudioFuse X8 OUT
- Power supply with worldwide adapters
- Rack ear set and connecting plate
- Registration card
- Quick start guide
