Description

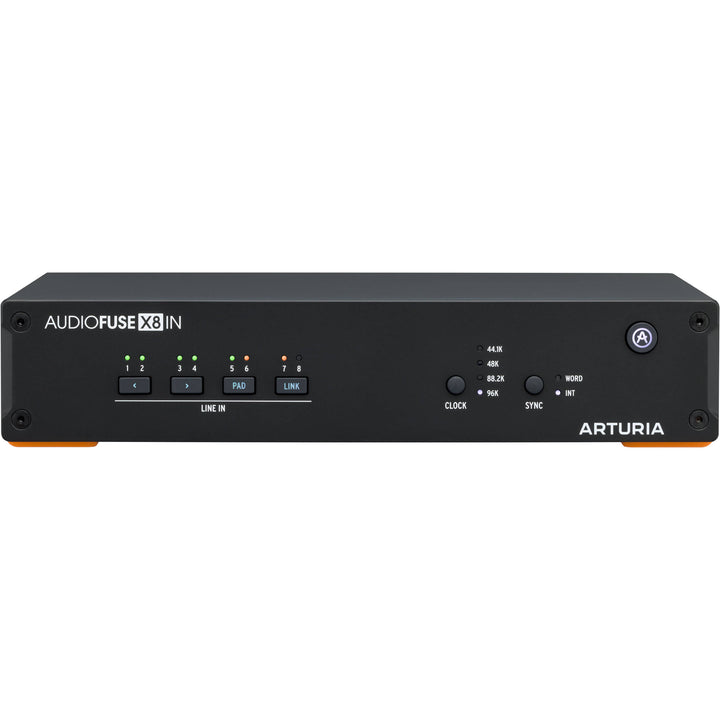

The Arturia AudioFuse X8 In is an 8-channel analog-to-ADAT input expander that adds eight balanced 1/4" TRS line inputs to any ADAT-equipped audio interface. Per-channel pad switches (-12 dB) accommodate hot signals, and front-panel VU meters provide visual level monitoring for each channel. Two ADAT optical outputs support standard 8-channel operation at 44.1/48 kHz or 4-channel SMUX at 88.2/96 kHz. AKM ADCs deliver 24-bit conversion with 119 dB dynamic range. Word clock BNC input keeps the unit synchronized with your master clock. The half-rack aluminum chassis includes removable rack ears.
Conversion
- ADC: 24-bit AKM
- Sample rates: Up to 96 kHz
- Dynamic range: 119 dB
- Channels: 8 at 44.1/48 kHz, 4 at 88.2/96 kHz (SMUX)
Connectivity
- Analog inputs: 8x balanced 1/4" TRS with per-channel -12 dB pad
- Digital outputs: 2x ADAT optical
- Clock: Word clock BNC input
- Metering: Front-panel VU meters (per channel)
Specifications
- Dimensions: 221 x 216 x 48 mm (8.70 x 8.50 x 1.89 in)
- Weight: 1.41 kg (3.11 lbs)
- Chassis: Half-rack aluminum with removable rack ears
In the Box
- Arturia AudioFuse X8 IN
- Power supply with worldwide adapters
- Rack ear and connecting plate
- Registration card
- Quick start guide
