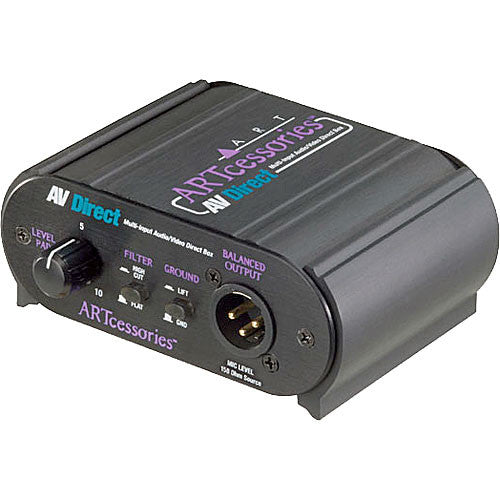

AV DI Box

The AV Direct from ART is a direct box with a very specific purpose. It is the ideal solution for any situation where stereo iPods, notebook computers, consumer DVD players, HiFi equipment, or video machines have to be connected to a single XLR microphone level input.

Unlike standard "gender bender" cables or DI boxes, the AV Direct can accept virtually any input connection and output level (including amplified speaker outputs) and offers remote level control, ideal for setting the volume of a component at the source, rather than in an AV room, audio closet or installation rack.

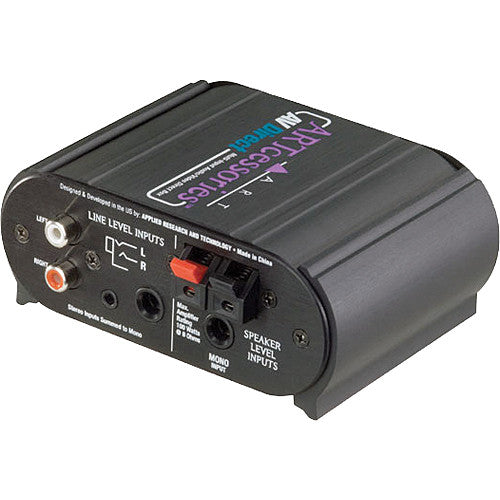

The AV Direct has stereo RCA, 3.5mm and 1/4" TRS line level inputs as well as a 1/4" and bare wire pressure clip speaker level inputs. A switchable high-cut filter and ground lift allow the AV Direct to effectively filter out any extraneous noise.

The speaker-level inputs are heavily padded and transformer isolated from the XLR output, allowing amplified speaker level (up to 100 watts at 8 ohms) to be tapped off, and sent to a microphone level input. A 20 Hz to 20 kHz frequency response ensures the AV Direct will function seamlessly with any high-quality audio source.
