Description

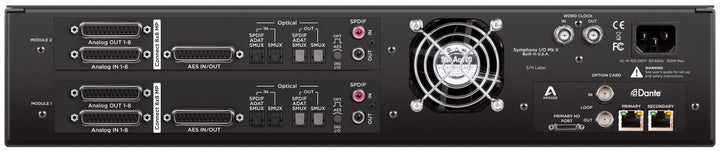

The Apogee Symphony I/O Mk II 8x8 MP + 8x8 MP is a 2U rackmount multichannel audio interface built on the Symphony I/O Mk II chassis, configured here with two 8x8 MP modules, plus Dante network connectivity with DigiLink included. As delivered it provides 16 analog inputs and 16 analog outputs including 16 mic preamps, running through Apogee's flagship conversion.
Installed I/O Modules
- 8x8 MP: 8 mic/line/instrument inputs with digitally controlled preamps and +48V phantom power, 8 balanced line outputs, plus AES, ADAT, and S/PDIF digital I/O
- A second identical 8x8 MP module fills the other bay, doubling those counts
Connectivity
A Dante option card puts the interface I/O on a Gigabit Ethernet network, patched from Audinate's Dante Controller, which suits installations and multi-room facilities where audio has to travel beyond an analog or Thunderbolt run. The card also carries DigiLink connectivity for Pro Tools HDX and HD Native systems.
Chassis and Control
The Symphony I/O Mk II chassis holds Apogee's flagship conversion, a front-panel color touchscreen for input selection, gain, metering, and monitor control at the rack, and two module bays for up to 32 channels. Because the I/O is modular, the same chassis can be re-specified later as the room's channel count changes. Apogee's Symphony Control software mirrors the hardware controls on the computer, and the optional Apogee Control hardware remote adds a physical level knob and assignable buttons.
Specifications
- Analog inputs: 16 mic/line across two 8x8 MP modules
- Analog outputs: 16 line across two 8x8 MP modules
- Mic preamps: 16 digitally controlled, +48V phantom power
- Digital I/O: AES, ADAT, and S/PDIF
- Connectivity: Dante over Gigabit Ethernet, plus DigiLink for Pro Tools HD
- Conversion: Apogee flagship AD/DA, 24-bit / up to 192 kHz
- Expansion: two module bays, up to 32 channels per chassis
- Display: front-panel color touchscreen
- Rack size: 2U
- Dimensions: 450 x 292 x 89 mm (17.75" x 11.5" x 3.5"); 482.6 mm (19") wide with rack ears fitted
- Weight: approximately 8 kg (17.6 lb) for the chassis; total weight depends on installed modules
- Power: 90 to 240V AC, 150W internal supply
In the Box
- Symphony I/O Mk II 8x8 MP + 8x8 MP with Dante connectivity
- IEC power cable
- Quick start guide
Thunderbolt, DigiLink, DB25, and network cables sold separately.
