Description

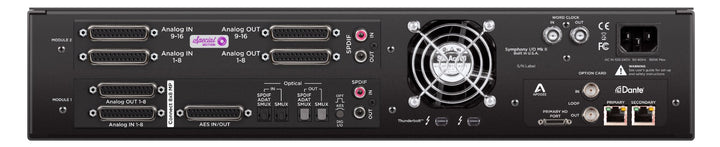

The Apogee Symphony I/O Mk II 8x8 MP + 16x16 SE is a 2U rackmount multichannel audio interface built on the Symphony I/O Mk II chassis, configured here with an 8x8 MP module and a 16x16 SE module, plus both Thunderbolt 3 and Dante connectivity. As delivered it provides 24 analog inputs and 24 analog outputs including 8 mic preamps, running through Apogee's flagship conversion.
Installed I/O Modules
- 8x8 MP: 8 mic/line/instrument inputs with digitally controlled preamps and +48V phantom power, 8 balanced line outputs, plus AES, ADAT, and S/PDIF digital I/O
- 16x16 SE: 16 balanced line inputs and 16 balanced line outputs on DB25, using Apogee's Special Edition conversion with the ESS 9822pro A/D converter
Connectivity
Thunderbolt 3 and Dante cards are both installed. The unit works as a native Thunderbolt 3 interface on a Mac or Windows computer and as a Dante endpoint on a Gigabit Ethernet network, and the Dante card also provides DigiLink for Pro Tools HDX and HD Native systems.
Chassis and Control
The Symphony I/O Mk II chassis holds Apogee's flagship conversion, a front-panel color touchscreen for input selection, gain, metering, and monitor control at the rack, and two module bays for up to 32 channels. Because the I/O is modular, the same chassis can be re-specified later as the room's channel count changes. Apogee's Symphony Control software mirrors the hardware controls on the computer, and the optional Apogee Control hardware remote adds a physical level knob and assignable buttons.
Specifications
- Analog inputs: 24 total: 8 mic/line on the 8x8 MP module plus 16 line on the 16x16 SE module
- Analog outputs: 24 total: 8 on the 8x8 MP module plus 16 on the 16x16 SE module
- Mic preamps: 8 digitally controlled, +48V phantom power
- Digital I/O: AES, ADAT, and S/PDIF
- Connectivity: Thunderbolt 3 (Mac or Windows), Dante over Gigabit Ethernet, plus DigiLink for Pro Tools HD
- Conversion: Apogee flagship AD/DA, 24-bit / up to 192 kHz
- Expansion: two module bays, up to 32 channels per chassis
- Display: front-panel color touchscreen
- Rack size: 2U
- Dimensions: 450 x 292 x 89 mm (17.75" x 11.5" x 3.5"); 482.6 mm (19") wide with rack ears fitted
- Weight: approximately 8 kg (17.6 lb) for the chassis; total weight depends on installed modules
- Power: 90 to 240V AC, 150W internal supply
Thunderbolt 3, DigiLink, DB25, and network cables sold separately.
