Apogee Symphony I/O Mk II 32x32 SE Thunderbolt/Pro Tools HD Interface
Chassis
I/O Module 1
I/O Module 2
Thunderbolt Card
Option Card
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description

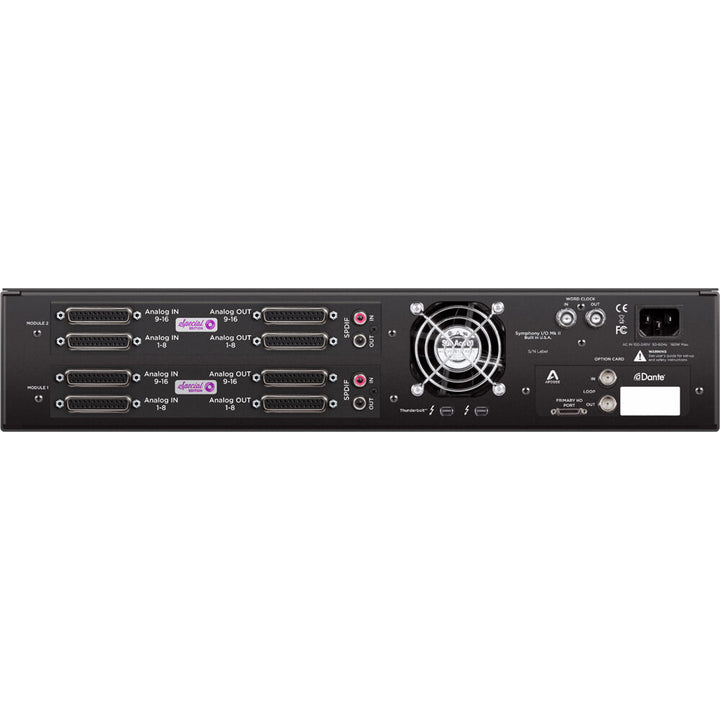

The Apogee Symphony I/O Mk II 32x32 SE is a 2U rackmount multichannel audio interface built on the Symphony I/O Mk II chassis, configured here with two 16x16 SE modules, plus both Thunderbolt and Pro Tools HD connectivity. As delivered it provides 32 analog inputs and 32 analog outputs, running through Apogee's flagship conversion.
Installed I/O Modules
- 32x32 SE: two 16x16 SE modules filling both bays, giving 32 balanced line inputs and 32 balanced line outputs on DB25 with Special Edition conversion
Connectivity
Thunderbolt and Pro Tools HD cards are both installed, so one unit serves a Mac over Thunderbolt and a Pro Tools HDX or HD Native rig over DigiLink. Rooms that track to Pro Tools HD and mix in a native DAW can switch hosts without re-cabling the analog I/O.
Chassis and Control
The Symphony I/O Mk II chassis holds Apogee's flagship conversion, a front-panel color touchscreen for input selection, gain, metering, and monitor control at the rack, and two module bays for up to 32 channels. Because the I/O is modular, the same chassis can be re-specified later as the room's channel count changes. Apogee's Symphony Control software mirrors the hardware controls on the computer, and the optional Apogee Control hardware remote adds a physical level knob and assignable buttons.
Specifications
- Analog inputs: 32 line
- Analog outputs: 32 line
- Connectivity: Thunderbolt (Mac) and DigiLink for Pro Tools HDX and HD Native
- Conversion: Apogee flagship AD/DA, 24-bit / up to 192 kHz
- Expansion: two module bays, up to 32 channels per chassis
- Display: front-panel color touchscreen
- Rack size: 2U
- Dimensions: 450 x 292 x 89 mm (17.75" x 11.5" x 3.5"); 482.6 mm (19") wide with rack ears fitted
- Weight: approximately 8 kg (17.6 lb) for the chassis; total weight depends on installed modules
- Power: 90 to 240V AC, 150W internal supply
In the Box
- Symphony I/O Mk II 32x32 SE with Thunderbolt + Pro Tools HD connectivity
- IEC power cable
- Quick start guide
Thunderbolt, DigiLink, DB25, and network cables sold separately.
