Description

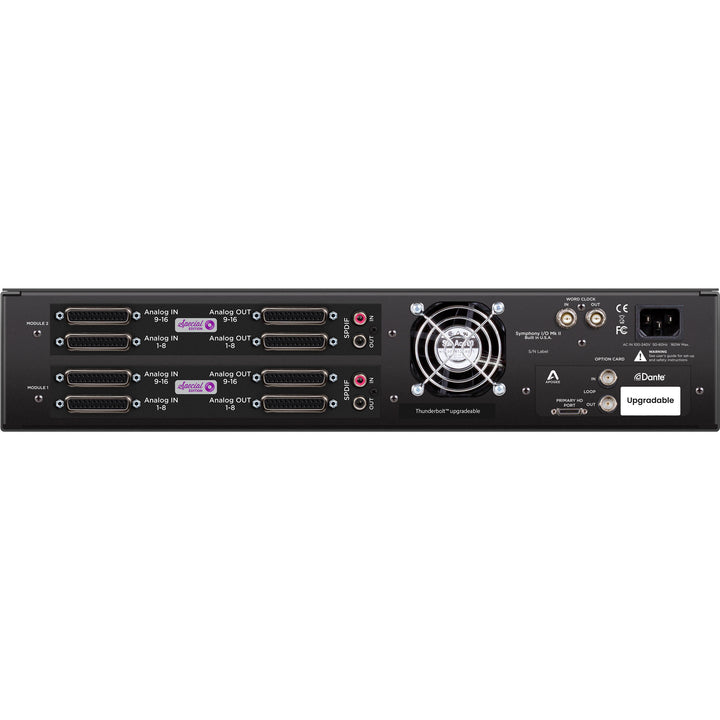

The Apogee Symphony I/O Mk II 32x32 SE is a 2U rackmount multichannel audio interface built on the Symphony I/O Mk II chassis, configured here with two 16x16 SE modules, plus Pro Tools HD connectivity over DigiLink. As delivered it provides 32 analog inputs and 32 analog outputs, running through Apogee's flagship conversion.
Installed I/O Modules
- 32x32 SE: two 16x16 SE modules filling both bays, giving 32 balanced line inputs and 32 balanced line outputs on DB25 with Special Edition conversion
Connectivity
A Pro Tools HD option card connects the interface over DigiLink to Pro Tools HDX and HD Native systems, so it works as a Pro Tools HD interface without a Thunderbolt host. Input and monitoring settings remain available on the front-panel touchscreen.
Chassis and Control
The Symphony I/O Mk II chassis holds Apogee's flagship conversion, a front-panel color touchscreen for input selection, gain, metering, and monitor control at the rack, and two module bays for up to 32 channels. Because the I/O is modular, the same chassis can be re-specified later as the room's channel count changes. Apogee's Symphony Control software mirrors the hardware controls on the computer, and the optional Apogee Control hardware remote adds a physical level knob and assignable buttons.
Specifications
- Analog inputs: 32 line
- Analog outputs: 32 line
- Connectivity: DigiLink for Pro Tools HDX and HD Native
- Conversion: Apogee flagship AD/DA, 24-bit / up to 192 kHz
- Expansion: two module bays, up to 32 channels per chassis
- Display: front-panel color touchscreen
- Rack size: 2U
- Dimensions: 450 x 292 x 89 mm (17.75" x 11.5" x 3.5"); 482.6 mm (19") wide with rack ears fitted
- Weight: approximately 8 kg (17.6 lb) for the chassis; total weight depends on installed modules
- Power: 90 to 240V AC, 150W internal supply
In the Box
- Symphony I/O Mk II 32x32 SE with Pro Tools HD connectivity
- IEC power cable
- Quick start guide
Thunderbolt, DigiLink, DB25, and network cables sold separately.
