Description

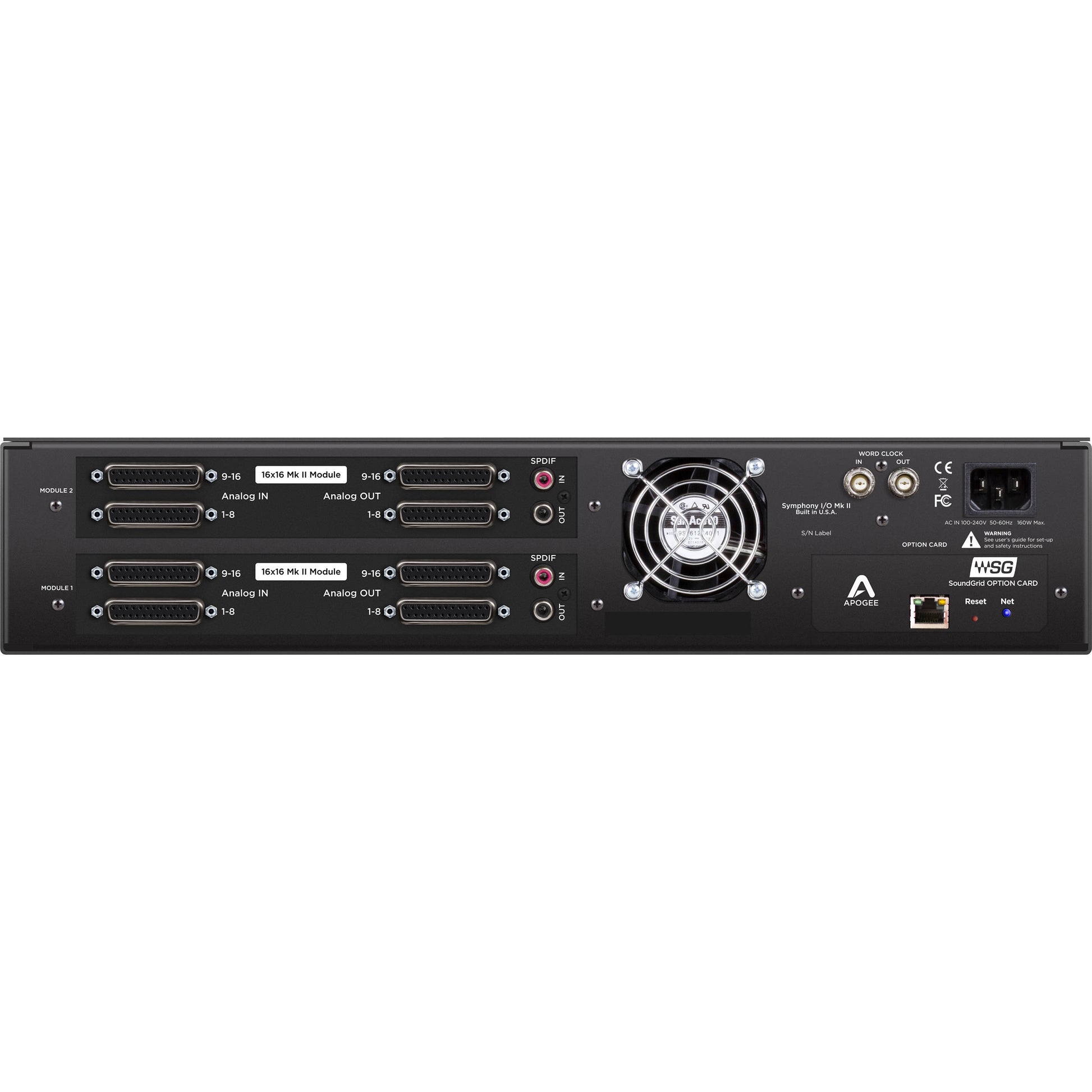

The Apogee Symphony I/O Mk II 32x32 is a 2U rackmount multichannel audio interface built on the Symphony I/O Mk II chassis, configured here with two 16x16 modules, plus Waves SoundGrid network connectivity. As delivered it provides 32 analog inputs and 32 analog outputs, running through Apogee's flagship conversion.
Installed I/O Modules
- 32x32: two 16x16 modules filling both bays, giving 32 balanced line inputs and 32 balanced line outputs on DB25
Connectivity
A Waves SoundGrid card connects the interface to a SoundGrid network over Ethernet, for use with SoundGrid servers and SoundGrid-based live and studio systems. Audio is distributed on the network rather than tied to a single host computer.
Chassis and Control
The Symphony I/O Mk II chassis holds Apogee's flagship conversion, a front-panel color touchscreen for input selection, gain, metering, and monitor control at the rack, and two module bays for up to 32 channels. Because the I/O is modular, the same chassis can be re-specified later as the room's channel count changes. Apogee's Symphony Control software mirrors the hardware controls on the computer, and the optional Apogee Control hardware remote adds a physical level knob and assignable buttons.
Specifications
- Analog inputs: 32 line
- Analog outputs: 32 line
- Connectivity: Waves SoundGrid over Ethernet
- Conversion: Apogee flagship AD/DA, 24-bit / up to 192 kHz
- Expansion: two module bays, up to 32 channels per chassis
- Display: front-panel color touchscreen
- Rack size: 2U
- Dimensions: 450 x 292 x 89 mm (17.75" x 11.5" x 3.5"); 482.6 mm (19") wide with rack ears fitted
- Weight: approximately 8 kg (17.6 lb) for the chassis; total weight depends on installed modules
- Power: 90 to 240V AC, 150W internal supply
In the Box
- Symphony I/O Mk II 32x32 with Waves SoundGrid connectivity
- IEC power cable
- Quick start guide
Thunderbolt, DigiLink, DB25, and network cables sold separately.
