Description
The Apogee Symphony I/O Mk II 2x6 SE + 2x6 SE is a 2U rackmount multichannel audio interface built on the Symphony I/O Mk II chassis, configured here with two 2x6 SE modules, plus both Thunderbolt and Pro Tools HD connectivity. As delivered it provides 4 analog inputs and 12 analog outputs, running through Apogee's flagship conversion.

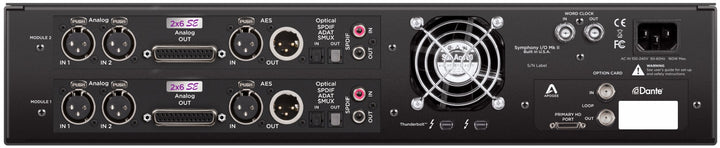

Installed I/O Modules
- 2x6 SE: 2 analog inputs and 6 analog outputs with Special Edition conversion, plus AES and optical digital I/O
- A second identical 2x6 SE module fills the other bay, doubling those counts
Connectivity
Thunderbolt and Pro Tools HD cards are both installed, so one unit serves a Mac over Thunderbolt and a Pro Tools HDX or HD Native rig over DigiLink. Rooms that track to Pro Tools HD and mix in a native DAW can switch hosts without re-cabling the analog I/O.
Chassis and Control
The Symphony I/O Mk II chassis holds Apogee's flagship conversion, a front-panel color touchscreen for input selection, gain, metering, and monitor control at the rack, and two module bays for up to 32 channels. Because the I/O is modular, the same chassis can be re-specified later as the room's channel count changes. Apogee's Symphony Control software mirrors the hardware controls on the computer, and the optional Apogee Control hardware remote adds a physical level knob and assignable buttons.
Specifications
- Analog inputs: 4 line across two 2x6 SE modules
- Analog outputs: 12 line across two 2x6 SE modules
- Digital I/O: AES and optical
- Connectivity: Thunderbolt (Mac) and DigiLink for Pro Tools HDX and HD Native
- Conversion: Apogee flagship AD/DA, 24-bit / up to 192 kHz
- Expansion: two module bays, up to 32 channels per chassis
- Display: front-panel color touchscreen
- Rack size: 2U
- Dimensions: 450 x 292 x 89 mm (17.75" x 11.5" x 3.5"); 482.6 mm (19") wide with rack ears fitted
- Weight: approximately 8 kg (17.6 lb) for the chassis; total weight depends on installed modules
- Power: 90 to 240V AC, 150W internal supply
In the Box
- Symphony I/O Mk II 2x6 SE + 2x6 SE with Thunderbolt + Pro Tools HD connectivity
- IEC power cable
- Quick start guide
Thunderbolt, DigiLink, DB25, and network cables sold separately.
