Description

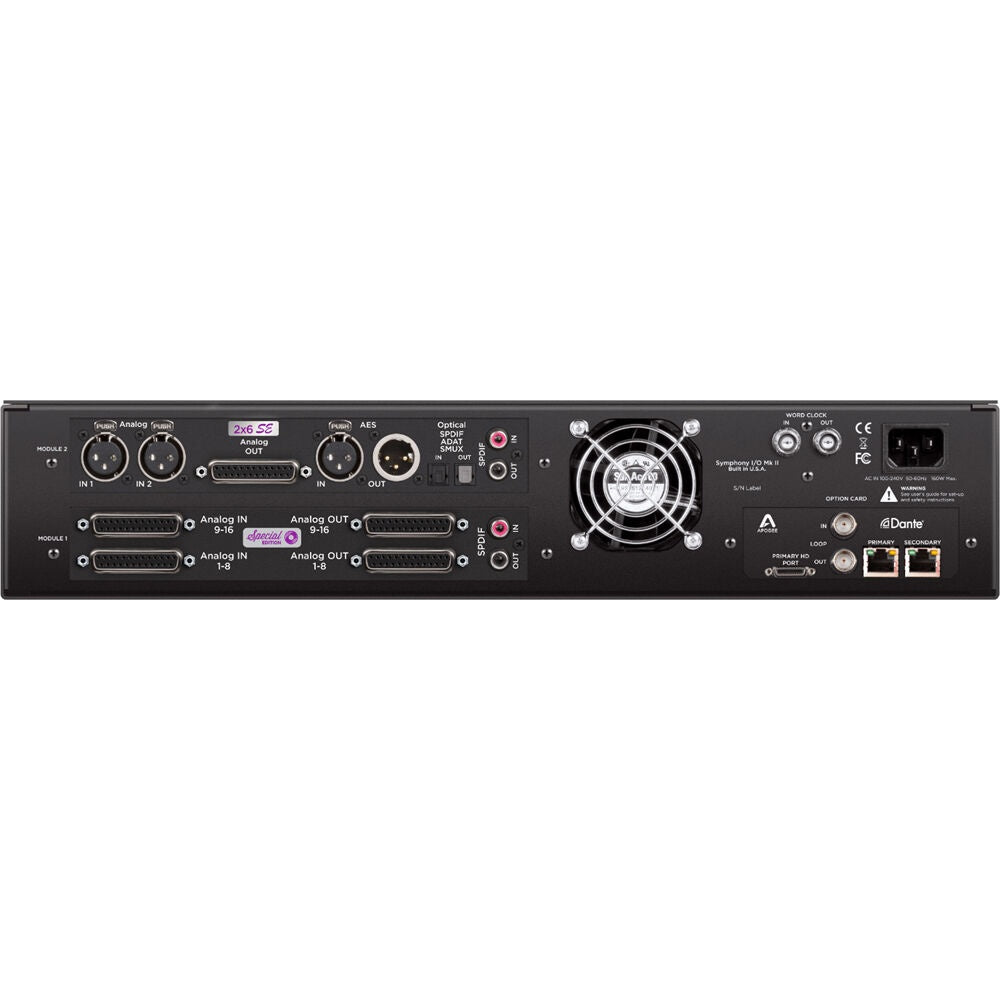

The Apogee Symphony I/O Mk II 16x16 SE + 2x6 SE is a 2U rackmount multichannel audio interface built on the Symphony I/O Mk II chassis, configured here with a 16x16 SE module and a 2x6 SE module, plus Dante network connectivity with DigiLink included. As delivered it provides 18 analog inputs and 22 analog outputs, running through Apogee's flagship conversion.
Installed I/O Modules
- 16x16 SE: 16 balanced line inputs and 16 balanced line outputs on DB25, using Apogee's Special Edition conversion with the ESS 9822pro A/D converter
- 2x6 SE: 2 analog inputs and 6 analog outputs with Special Edition conversion, plus AES and optical digital I/O
Connectivity
A Dante option card puts the interface I/O on a Gigabit Ethernet network, patched from Audinate's Dante Controller, which suits installations and multi-room facilities where audio has to travel beyond an analog or Thunderbolt run. The card also carries DigiLink connectivity for Pro Tools HDX and HD Native systems.
Chassis and Control
The Symphony I/O Mk II chassis holds Apogee's flagship conversion, a front-panel color touchscreen for input selection, gain, metering, and monitor control at the rack, and two module bays for up to 32 channels. Because the I/O is modular, the same chassis can be re-specified later as the room's channel count changes. Apogee's Symphony Control software mirrors the hardware controls on the computer, and the optional Apogee Control hardware remote adds a physical level knob and assignable buttons.
Specifications
- Analog inputs: 18 total: 16 line on the 16x16 SE module plus 2 line on the 2x6 SE module
- Analog outputs: 22 total: 16 on the 16x16 SE module plus 6 on the 2x6 SE module
- Digital I/O: AES and optical
- Connectivity: Dante over Gigabit Ethernet, plus DigiLink for Pro Tools HD
- Conversion: Apogee flagship AD/DA, 24-bit / up to 192 kHz
- Expansion: two module bays, up to 32 channels per chassis
- Display: front-panel color touchscreen
- Rack size: 2U
- Dimensions: 450 x 292 x 89 mm (17.75" x 11.5" x 3.5"); 482.6 mm (19") wide with rack ears fitted
- Weight: approximately 8 kg (17.6 lb) for the chassis; total weight depends on installed modules
- Power: 90 to 240V AC, 150W internal supply
In the Box
- Symphony I/O Mk II 16x16 SE + 2x6 SE with Dante connectivity
- IEC power cable
- Quick start guide
Thunderbolt, DigiLink, DB25, and network cables sold separately.
