Apogee Symphony I/O Mk II 16x16 SE Thunderbolt Interface
Chassis
I/O Module 1
I/O Module 2
Thunderbolt Card
Option Card
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description

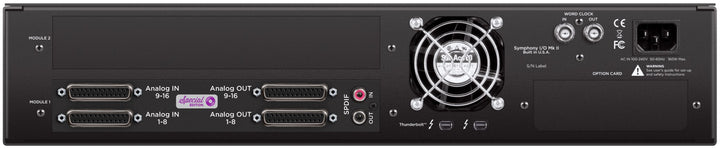

The Apogee Symphony I/O Mk II 16x16 SE is a 2U rackmount multichannel audio interface built on the Symphony I/O Mk II chassis, configured here with a 16x16 SE module, plus Thunderbolt connectivity for a Mac host. As delivered it provides 16 analog inputs and 16 analog outputs, running through Apogee's flagship conversion.
Installed I/O Modules
- 16x16 SE: 16 balanced line inputs and 16 balanced line outputs on DB25, using Apogee's Special Edition conversion with the ESS 9822pro A/D converter
Connectivity
Thunderbolt connects the interface to a Mac as a native audio device with low round-trip latency. Routing, input settings, and monitor control are handled in Symphony Control software or from the front-panel touchscreen.
Chassis and Control
The Symphony I/O Mk II chassis holds Apogee's flagship conversion, a front-panel color touchscreen for input selection, gain, metering, and monitor control at the rack, and two module bays for up to 32 channels. Because the I/O is modular, the same chassis can be re-specified later as the room's channel count changes. Apogee's Symphony Control software mirrors the hardware controls on the computer, and the optional Apogee Control hardware remote adds a physical level knob and assignable buttons.
Specifications
- Analog inputs: 16 line
- Analog outputs: 16 line
- Connectivity: Thunderbolt (Mac)
- Conversion: Apogee flagship AD/DA, 24-bit / up to 192 kHz
- Expansion: two module bays, up to 32 channels per chassis
- Display: front-panel color touchscreen
- Rack size: 2U
- Dimensions: 450 x 292 x 89 mm (17.75" x 11.5" x 3.5"); 482.6 mm (19") wide with rack ears fitted
- Weight: approximately 8 kg (17.6 lb) for the chassis; total weight depends on installed modules
- Power: 90 to 240V AC, 150W internal supply
In the Box
- Symphony I/O Mk II 16x16 SE with Thunderbolt connectivity
- IEC power cable
- Quick start guide
Thunderbolt, DigiLink, DB25, and network cables sold separately.
