Apogee Symphony I/O Mk II Connect 8x8 MP I/O Module
Chassis
I/O Module 1
I/O Module 2
Thunderbolt Card
Option Card

Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
Carriers sometimes charge far more for oversized freight to certain locations. In that rare case, we pay most of the extra and ask you to cover a small part.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description

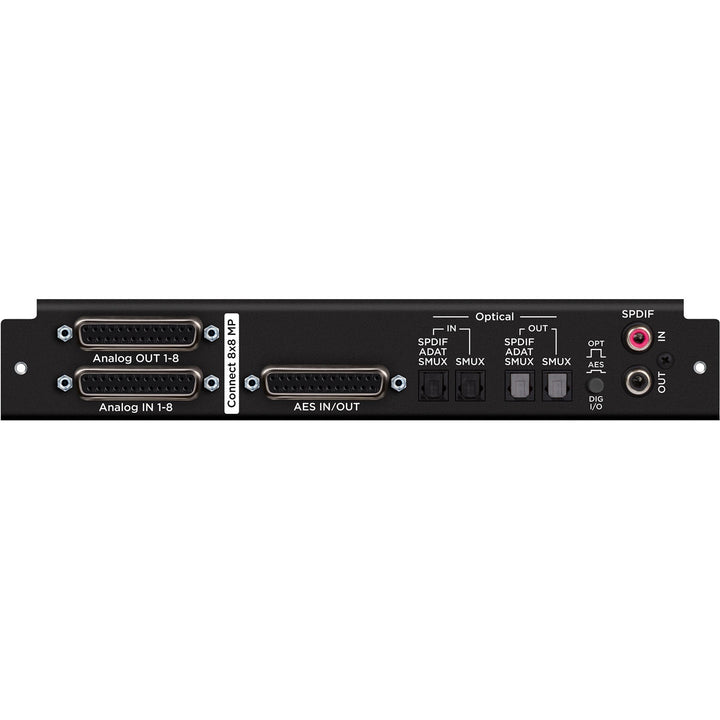

The 8x8 MP is an I/O module for the Apogee Symphony I/O Mk II with 8 mic/line inputs on digitally controlled preamps, 8 line outputs, and AES, ADAT, and S/PDIF digital I/O. It is the module to specify when the room needs microphone inputs rather than line-only conversion.
Digitally Controlled Preamps
Each of the 8 inputs has a mic preamp with +48V phantom power and stepped digital gain, set from the chassis touchscreen or Symphony Control software rather than from front-panel pots. Gain settings are therefore recallable with a session, which matters on multi-microphone sources such as a drum kit.
Specifications
- Analog inputs: 8 mic/line/instrument with digitally controlled preamps, +48V phantom power
- Analog outputs: 8 balanced line
- Digital I/O: AES, ADAT, and S/PDIF
- Conversion: 24-bit / up to 192 kHz
- Compatible with: Apogee Symphony I/O Mk II chassis
In the Box
- 8x8 MP I/O module
- Installation instructions
Symphony I/O Mk II chassis sold separately.
