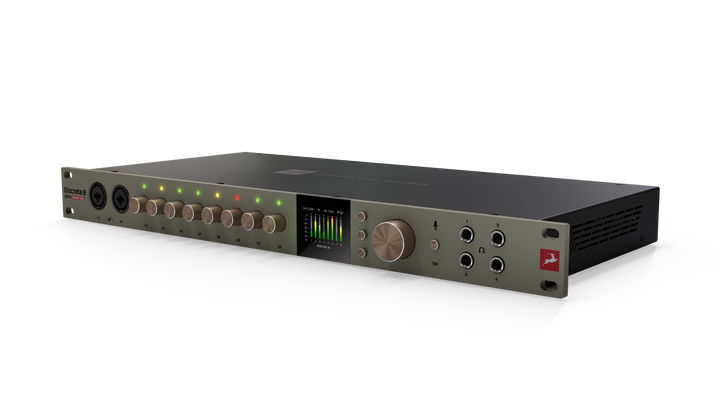

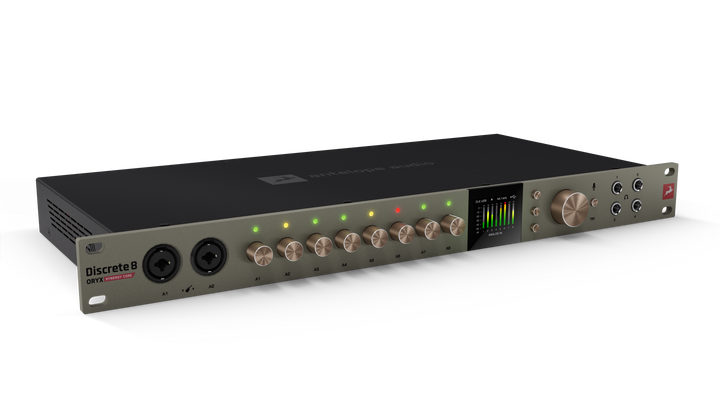

Discrete 8 Oryx Synergy Core

The Discrete 8 Oryx brings Antelope Audio’s latest innovations into a powerful, affordable studio hub for producers, engineers, and bands. Built for multi-instrument recording and hybrid workflows, it combines pristine conversion and clocking, console-grade preamps, real-time FX processing, advanced headphone tools, and expansive routing — all in one rack unit.

• Uncompromising Sound Quality – Latest-generation AD/DA converters with up to 130dB of dynamic range, backed by Antelope’s proprietary 64-bit AFC™ clocking for superior stereo imaging.
• World-Class Preamps – Eight discrete 6-transistor preamps with 75dB of gain, inspired by classic consoles, delivering ultra-clean recordings.
• Synergy Core Real-Time FX – Powered by 2 DSP + 1 FPGA chips, running 37 included effects (compressors, EQs, amps, mic pres) with imperceptible latency.
• Advanced Signal Processing – Four independent headphone outs, each with X-feed and calibration options for precise monitoring and natural stereo image.
• Advanced Routing – Virtual patch bay with simultaneous use of all analog and digital I/O, providing over 60 channels of flexible connectivity.

Experience Every Mix with Uncompromising Clarity

At the heart of the Discrete 8 Oryx are Antelope’s latest AD/DA converters (up to 130dB headroom) and fourth-generation 64-bit AFC™ clocking. Together, they deliver wider stereo imaging, depth, and detail that go far beyond the specs of the converter chips alone. Careful implementation and decades of clocking expertise ensure a sound that stands out in both recording and playback, beloved by audio professionals worldwide.

Record with Vintage Warmth and Modern Precision

The eight Discrete preamps are based on a six-transistor topology reminiscent of vintage consoles. With up to 75dB of gain and exceptionally low noise, they capture every nuance with clarity, making them equally suited for delicate ribbon mics and punchy drum recordings.

Shape Your Sound in Real Time Without Latency

Powered by 2 DSP and 1 FPGA, the onboard Synergy Core platform lets you run a collection of world-class analog-modeled effects — from compressors and EQs to amps and reverbs — in real time with zero perceptible latency. Perfect for giving vocalists polished monitoring chains or offloading CPU-intensive processing during tracking and live performance. 37 FX come included, with more available via the Antelope Software Store.

Transform Your Headphones into a True Soundstage

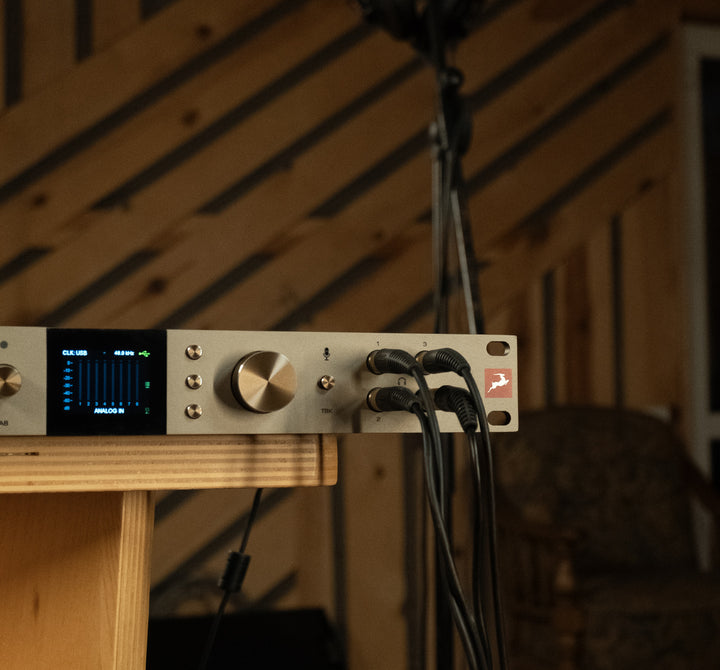

All four independent headphone outputs feature X-feed (crossfeed) to mimic speaker listening and built-in calibration for precise stereo imaging. Each performer can enjoy their own optimized mix with real-time FX, all handled directly by the interface without added latency.

Connect Everything and Work Without Limits

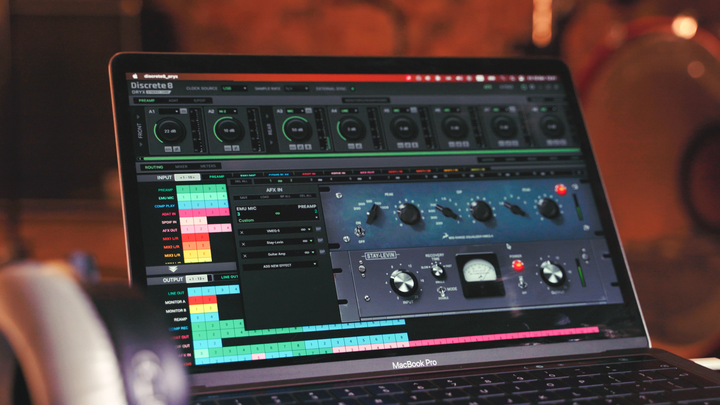

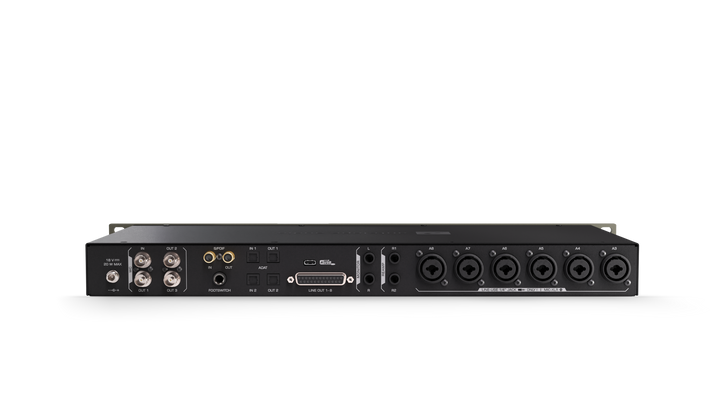

With 26×38 simultaneous connectivity — including 8 preamps, 8 DC-coupled line outs, ADAT, S/PDIF, reamp outs, monitor outs, and 4 headphone outs — the Discrete 8 Oryx serves as the centerpiece of any studio. Antelope’s intuitive virtual patch bay makes complex routing simple, letting you use every analog and digital channel at once for true hybrid flexibility.

Features

Conversion & Clocking

• Class-leading AD/DA conversion with up to 130dB of headroom.
• Recording, mixing, and playback at up to 24-bit/192kHz.
• Proprietary 64-bit AFC™ technology and Jitter Management deliver increased width, separation, and detail.

Connectivity

• 8 discrete 6-transistor preamps with 75dB of gain, supporting mic/line/Hi-Z inputs and 48V phantom power.
• 8 DC-coupled line outputs over D-Sub 25 and 8 DC-coupled line inputs.
• 2 reamp outputs on TRS ¼” jacks, usable as additional stereo monitor outs.
• USB 2.0 Type-C port with custom macOS and Windows drivers.
• Digital expansion via ADAT (16 ch) and S/PDIF (2 ch).
• 3 word clock outputs and 1 word clock input for synchronization.
• Footswitch input for dim/talkback control.
• 4 stereo headphone outputs with separate gain control.
• Dedicated stereo monitor output over TRS.

Workflow-Enhancing Features

• Direct monitoring with Synergy Core FX, processed in real-time with imperceptible latency.
• X-feed headphone crossfeed mode with calibration for speaker-like stereo imaging.
• Customizable presets for routing, levels, mixer, and effects.
• Adjustable monitoring mixes with volume, pan, and reverb.
• Front-panel talkback mic with dedicated control.

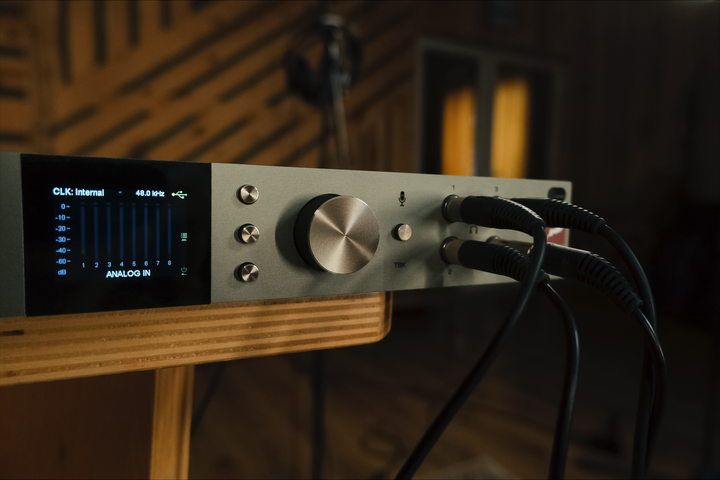

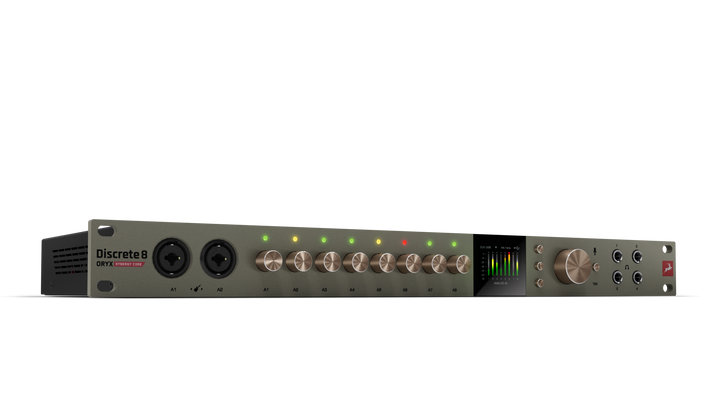

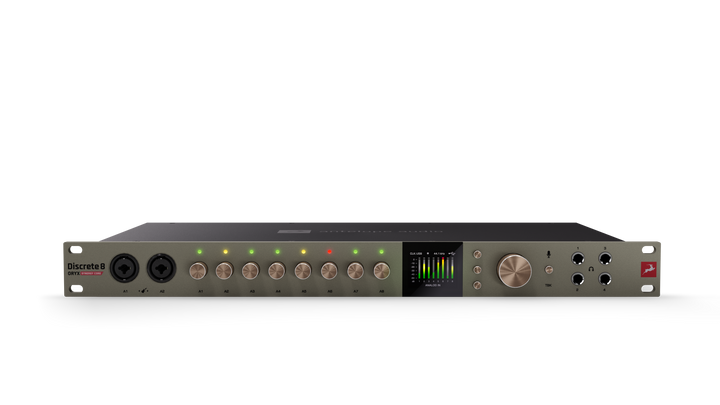

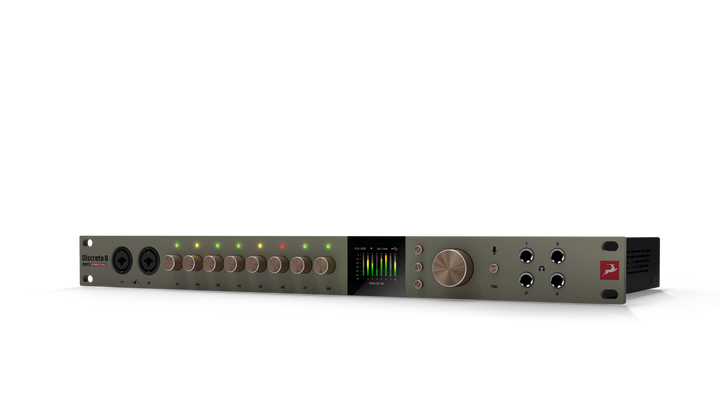

• Front color display and tactile relay-based gain knobs.
• Standalone operation without a computer.
• Remote control over networked computer.

Real-Time Effects Processing

• 37 included Synergy Core FX modeled after vintage analog gear.
• Powered by 2 DSP + 1 FPGA chips for real-time, zero-latency FX.
• Compatible with Antelope Edge microphones for real-time vintage mic emulations.

In-the-Box Content

• Discrete 8 Oryx interface
• Getting Started guide
• USB 2.0 Type-C cable
• USB-C to USB-A adapter
• External power supply unit

Included Synergy Core Real-Time FX

• 2 Preamps: Gyraf Gyratec IX, BA-31
• 4 Equalizers: including VEQ-1A, VMEQ-5
• 5 Compressors & Limiters: including Stay-Levin, FET-A76, VCA160
• 22 Guitar Amps & Cabs: including Bluelux 1x12, Tube Guitar Amp
• 2 Special Processors: Expander, Noise Gate
• 1 Reverb: Auraverb
• 1 Guitar Tuner: A-Tuner

Full List of Effects

• Gyraf Gyratec IX – Dual Tube Mic Preamp with HPF
• VCA160 – VCA Compressor / Limiter
• Stay-Levin – Vari-Mu Tube Compressor
• FET-A76 – FET Compressor / Limiting Amplifier
• VEQ-1A – 2-Band Tube EQ
• VMEQ-5 – 3-Band Tube Mid-Range EQ
• X903 – VCA Compressor / Limiter
• PowerFFC – Feed-Forward Compressor
• Clear Q – Parametric EQ
• Power EX – Expander
• VEQ-HLF – Tube 2-Band HPF / LPF
• Auraverb – Reverb
• BA-31 – Germanium Mic Preamp
• Power Gate – Noise Gate
• A-Tuner – Guitar Tuner
• Plexi 59 (UK), Bass SuperTube VR, Darkface 65 (US), Top30 (UK), Tweed Deluxe (US), Overange 120 (UK), BurnSphere (DE), Marcus II (US), Modern (US), Rock 75 (UK), Rock 22.10 (UK)
• Darkface 65 2x12, Top30 2x12, Modern 4x12, Green 2x12, Vintage 4x12, Green 4x12, Caliper 50 1x10, Bluelux 1x12, Clst 1x12, England 4x12, Bass Tube 1x15
