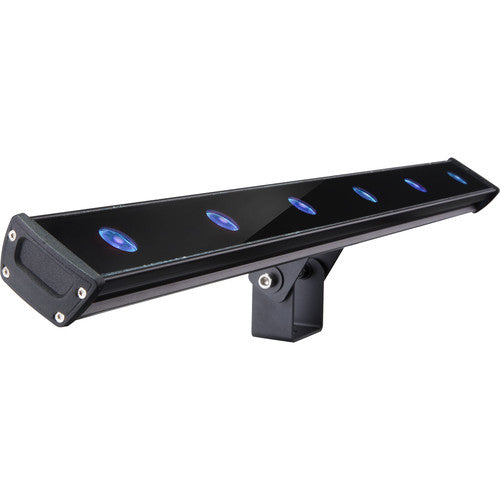

Antari UV-STRIP-510IP DarkFX Linear UV Fixture with 6 UV LED, 25 Degree Beam (IP65)

The Antari DarkFX Strip 510IP UV Wash is an outdoor-rated professional high-output UV LED wash strip, well suited for UV reactive material, art, amusement park displays, and signage with bright and vivid colors. The 6 x 1.9W high-power UV LEDs offer a peak wavelength of 365nm and a radiant flux output of 4500mW at full intensity (and minimal visible light). The fixture offers a 25° beam angle and is flicker-free for TV and film production. Special optics prevent wear degradation from high UV exposure. The aluminum extruded housing features a built-in adjustable bracket. A 22 AWG power/data bare-wire-end pigtail cable is attached on the back and connects to the Antari DarkFX Drive 4 fixture driver (sold separately), which is required for power and DMX control.

Note: Requires connection to separately sold DarkFX Drive 4 for power and DMX control

Features

• IP65 outdoor rated
• High-efficiency UV LEDs
• 25° beam angle
• 365nm peak wavelength
• Minimum visible light output
• Special optics to prevent wear degradation from high UV exposure
• 4500mW high-output at full intensity
• Flicker-free operation for TV and Film

Specifications

• Light Source: 6 x 1.9 W High Power UV LEDs
  20,000-Hour Average LED Life
• Photometrics: Optics: 25°
  Peak Wavelength: 365nm
  Radiant Flux Output: 4500 mW
• Control and Connectors: DarkFX Drive 4 Power/DMX Fixture Driver (Sold Separately)
  Cable Connection: 22 AWG Bare Wire Power/Data Combo Cable
• Power Requirements: Power Input: 20 to 24 VDC
  Power Consumption: 14 W Max
• Approvals: CE
• Ratings: IP65
• Dimensions: 23.9 x 2.1 x 4.0" / 60.6 x 5.4 x 10.1 cm
• Weight: 2.4 lb / 1.1 kg
