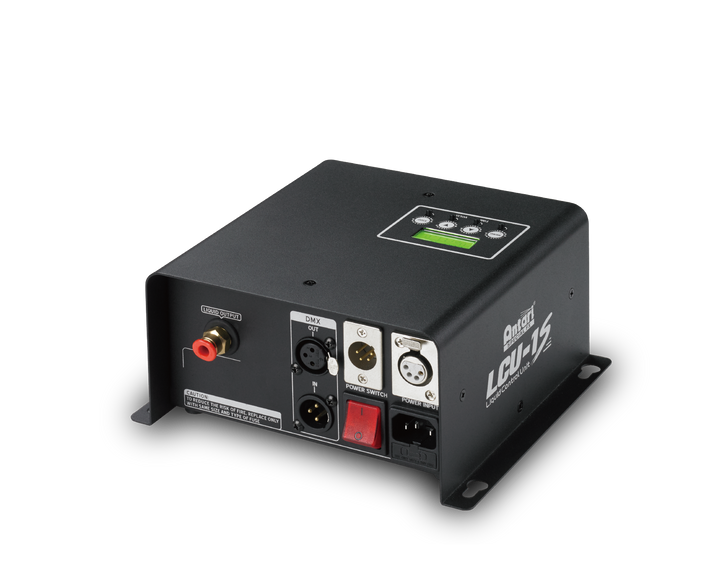

Antari LCU-1S 40W Liquid Control Unit for 4 Machines
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description
The latest LCU-1S comes with a LCD panel that allows the user to read and make settings with ease.
LCU-1S is preprogrammed for use with Z-1200II, S-100X, S-200X, and SW-250. Flow rates are adjusted to supply one unit at a time. An optional “Null” mode offers versatility for use with any model, running the pump at 100% output. It can supply up to a maximum of 4 units at a time.
LCU-1S can supply fluid to 35 meters long or 25 meters high at maximum, designed to meet most remote fluid supply applications.
Specifications
-
Input voltage: US model: AC 100-120V, 50/60Hz 0.35A
EU model: AC 220-240V, 50/60Hz 0.18A - Rated power: 40W
- Fluid consumption: 400 ml/min
- Compatible fluid: Antari Fluid
- Ambient temp. range: 5°C - 40°C (41°F - 104°F)
- Control: Manual, Timer, DMX 512
- DMX channels: 1 channel
-
Connection: IEC (Power)
XLR 3-pin (DMX) -
Optional accessories: Z-8 Timer Remote Control
SC-2 Remote Control -
Dimension: L 203 W 179 H 96 mm
(L 7.99 W 7.05 H 3.78 inch) - Weight: 3.3 kg (7.28 lbs)
