Description

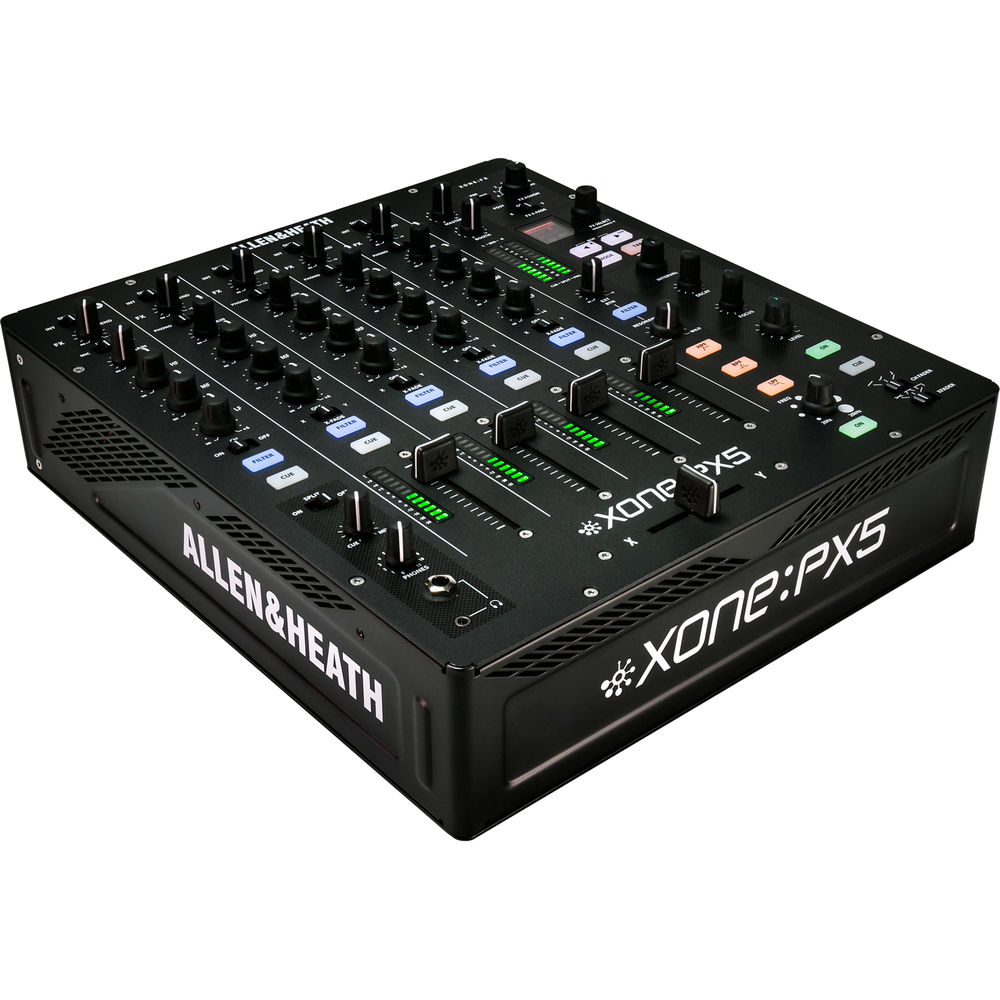

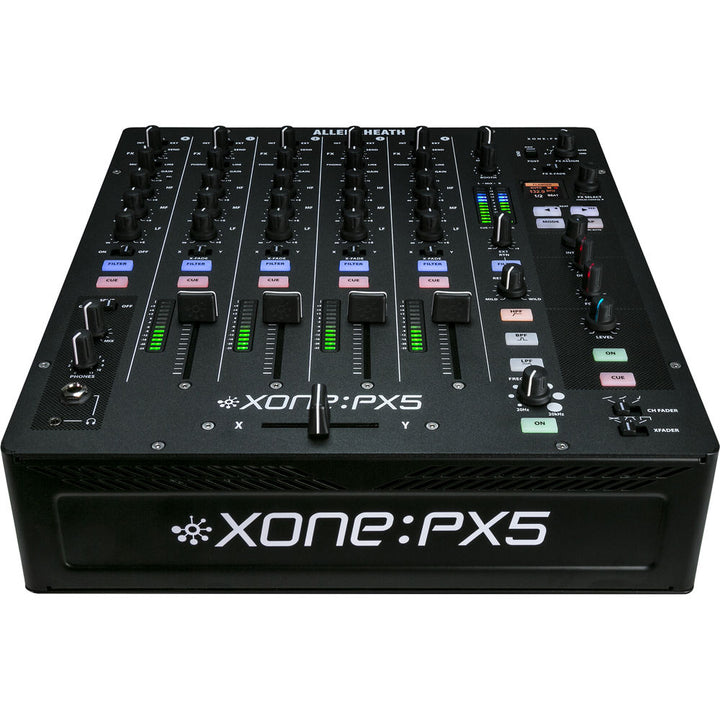

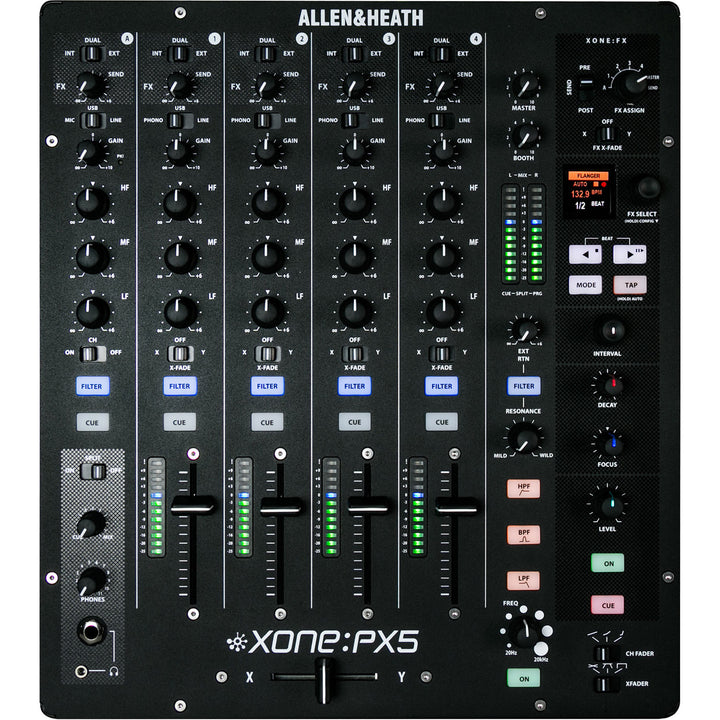

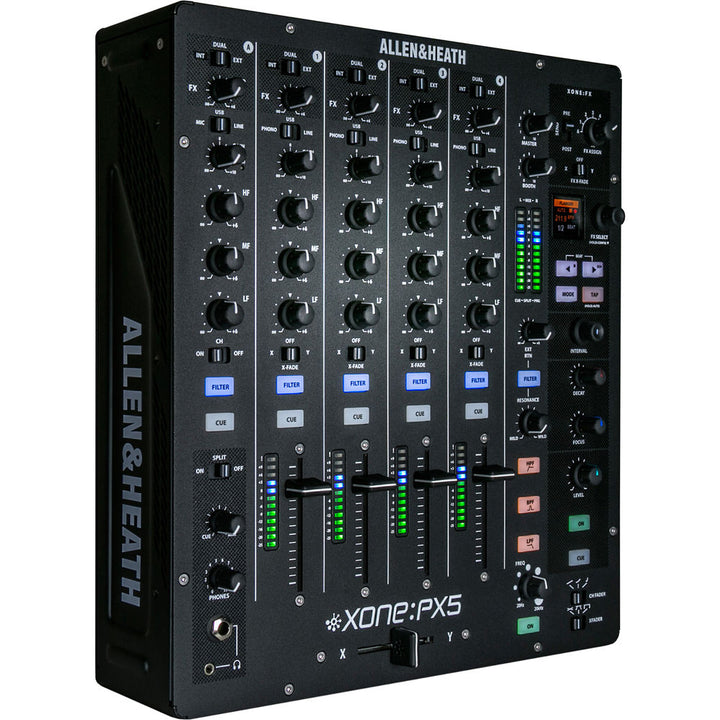

The XONE:PX5 is the only mixer in the XONE series with built-in digital effects, combining a 4+1 channel analog signal path with the Xone:Xcite FX suite and a 20-channel USB soundcard. Traktor Scratch Pro 3 certified and equipped with a MIDI clock engine with 5-pin DIN output, the PX5 bridges analog mixing with digital workflow in a compact, rack-width chassis.

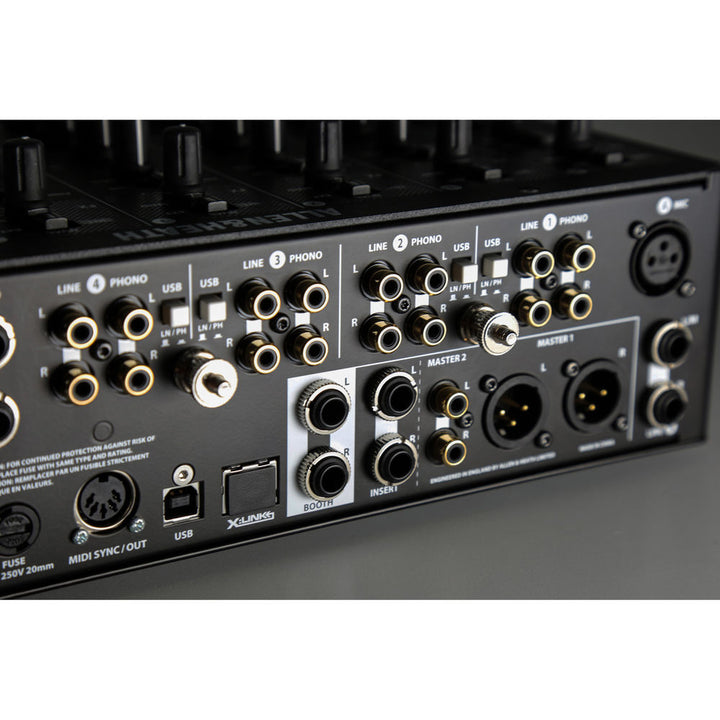

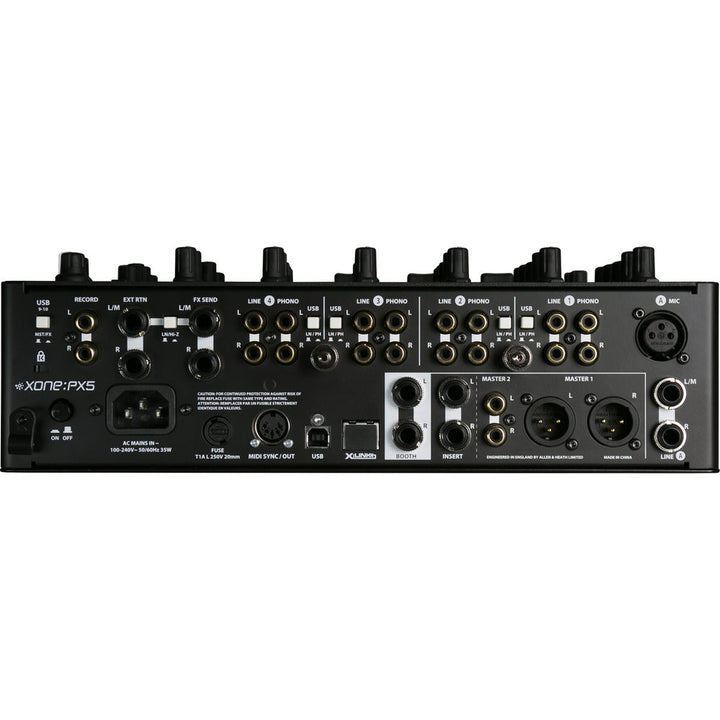

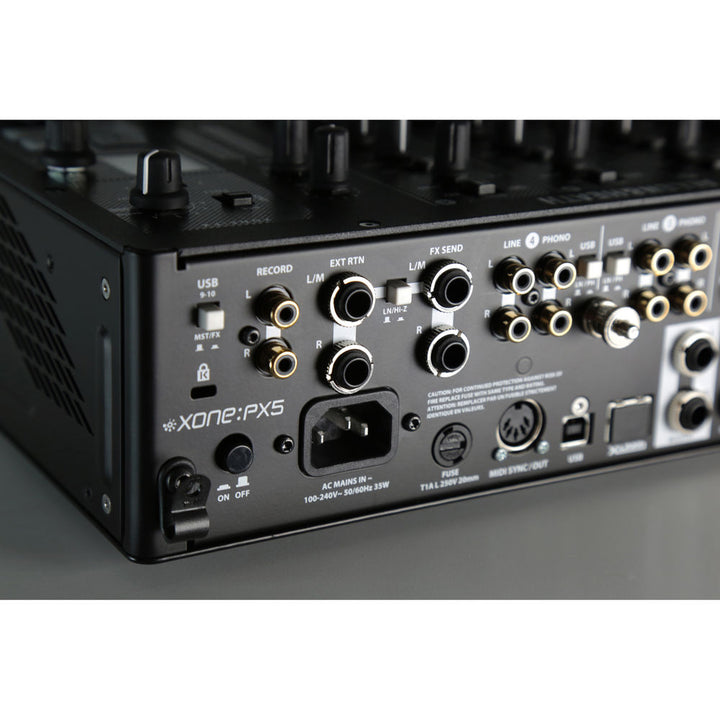

Inputs and Outputs

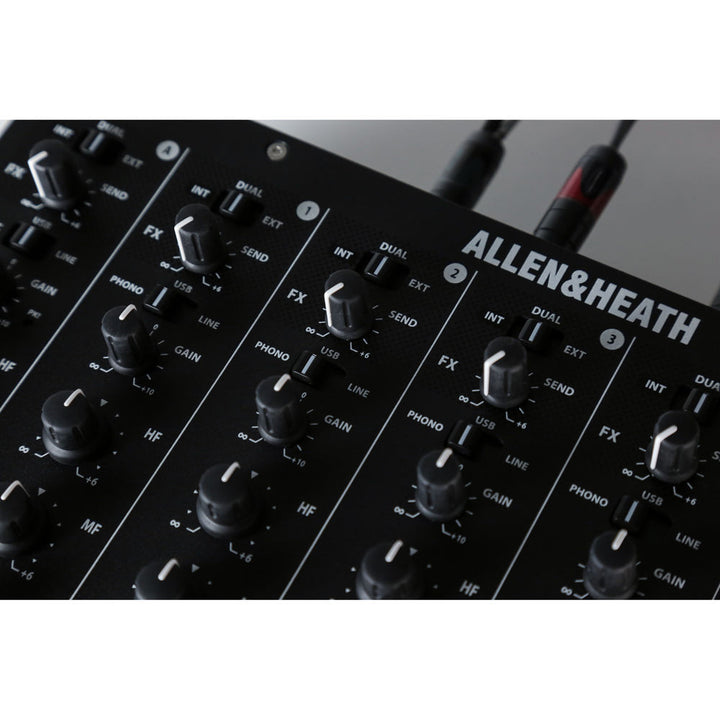

- 4 stereo Phono/Line/USB channels + 1 Mic/Aux/USB channel
- Phono: 4x RCA | Line: 4x RCA + 1x TRS | Mic: 1x XLR
- Master: 1x XLR | Master 2: 1x RCA | Booth: 1x TRS | Record: 1x RCA
- Send/Return: 1x TRS each | Master Insert: 1x TRS

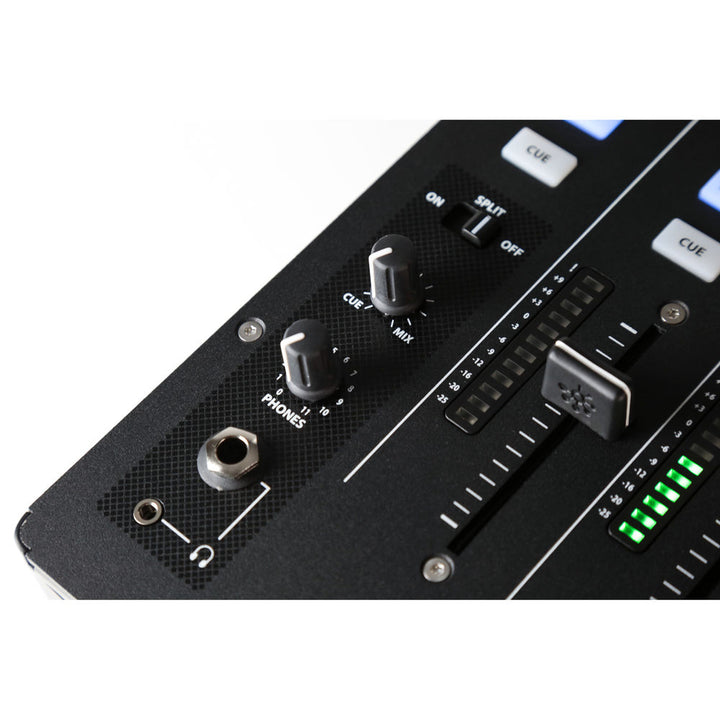

- Headphones: 1x 6.35 mm + 1x 3.5 mm with split cue
- X:Link: RJ45 for XONE controller integration
- MIDI Out: 1x 5-pin DIN
Mixing and Effects

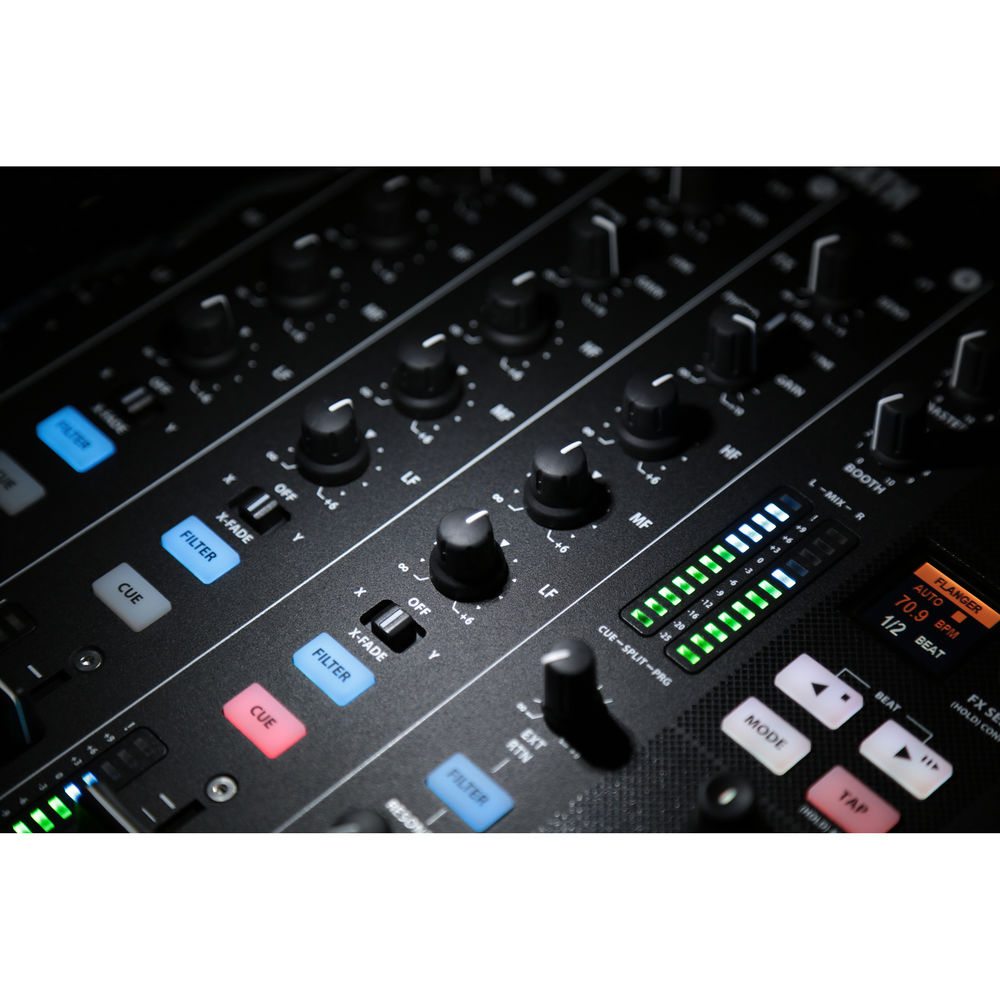

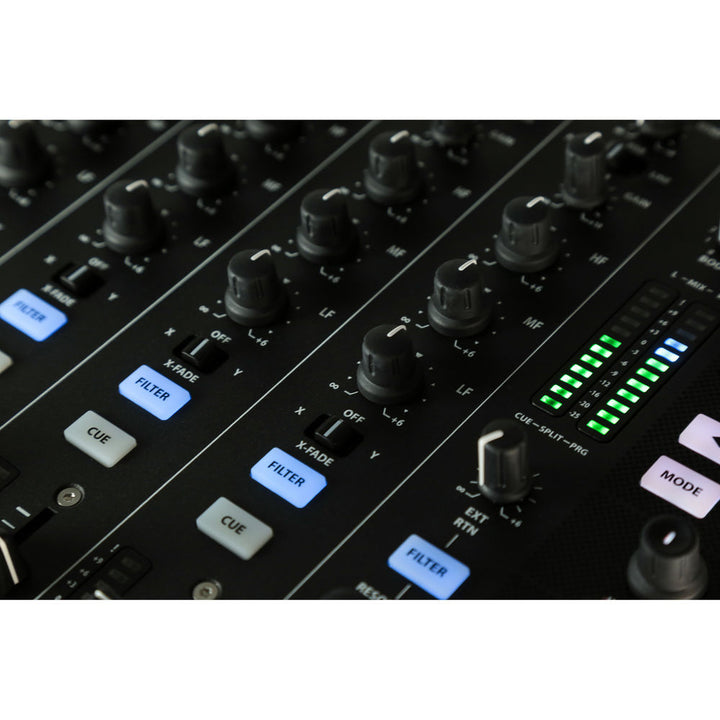

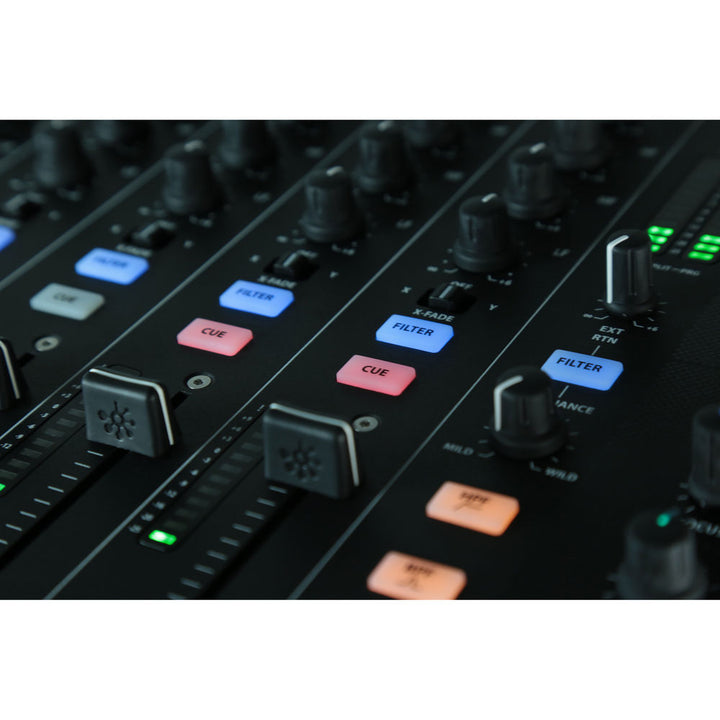

- 3-band isolator EQ with Total Kill on all bands

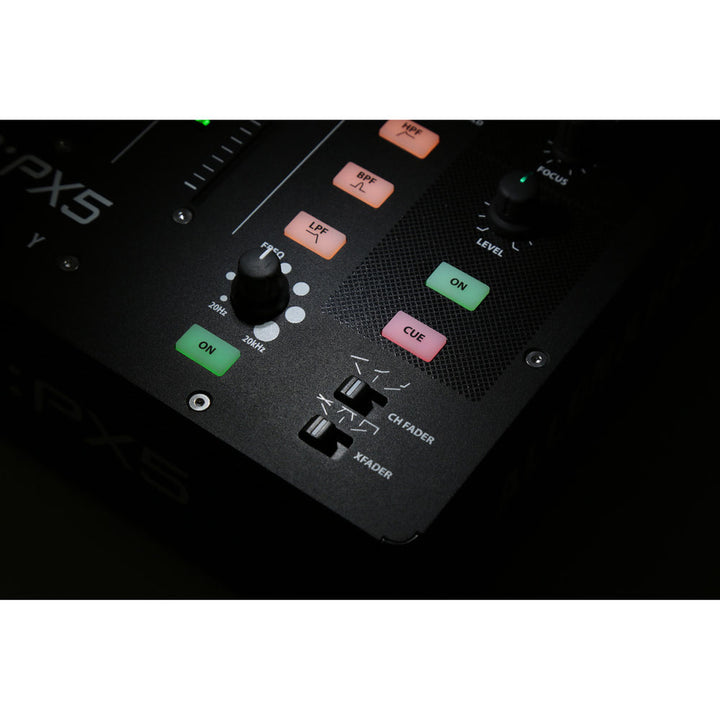

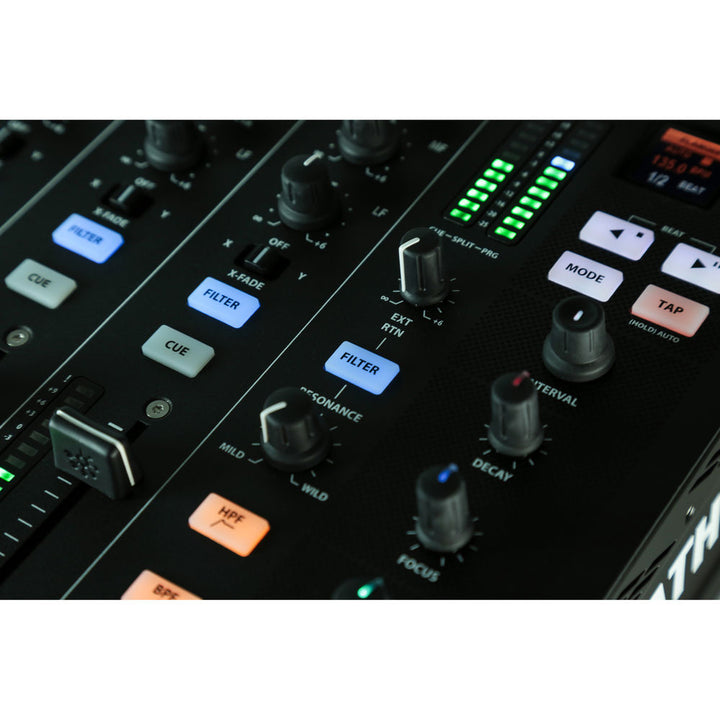

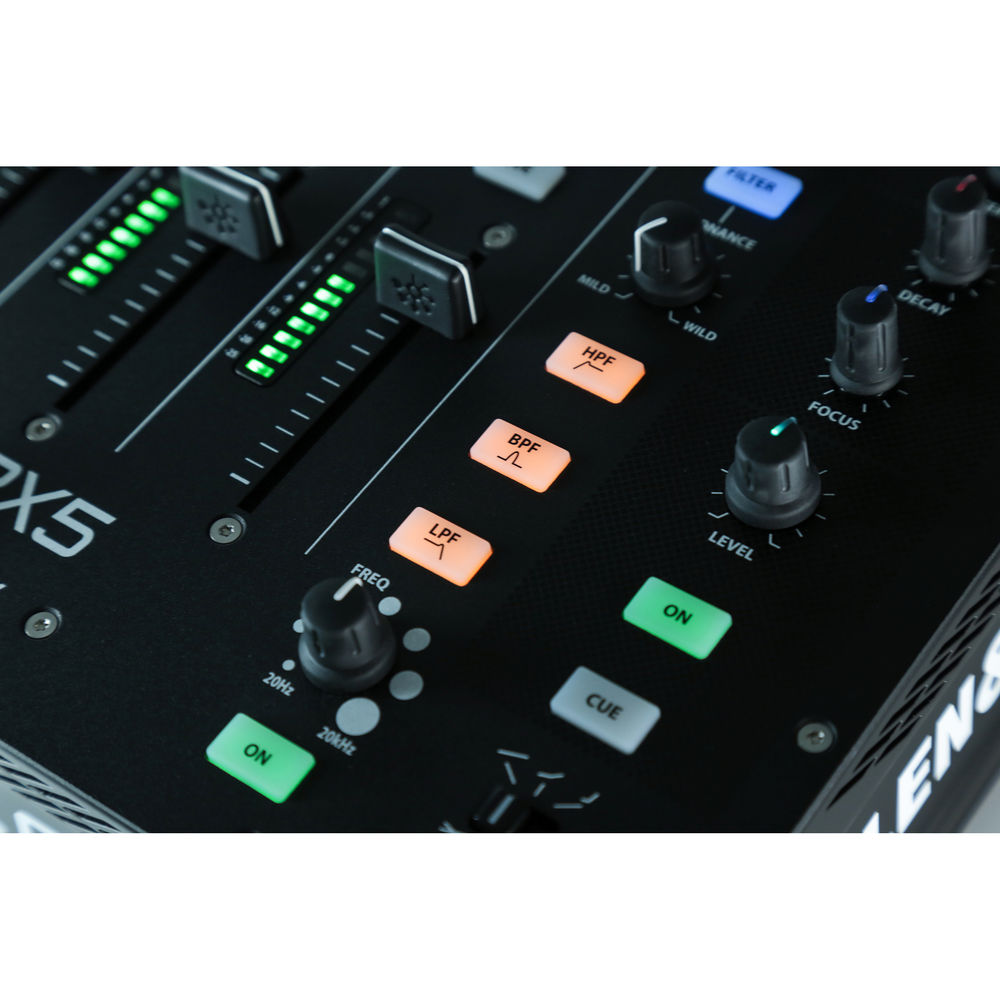

- 1x Xone:VCF (HPF/BPF/LPF) with adjustable frequency and resonance

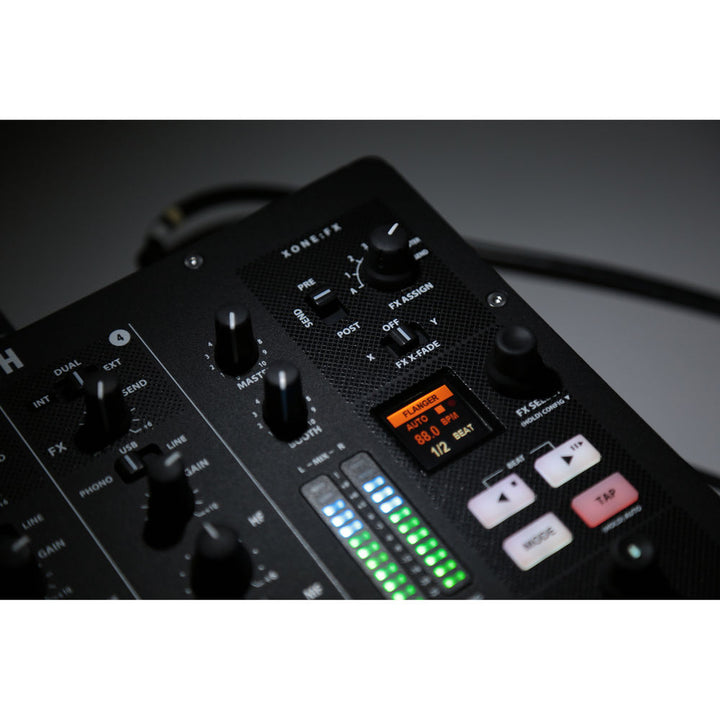

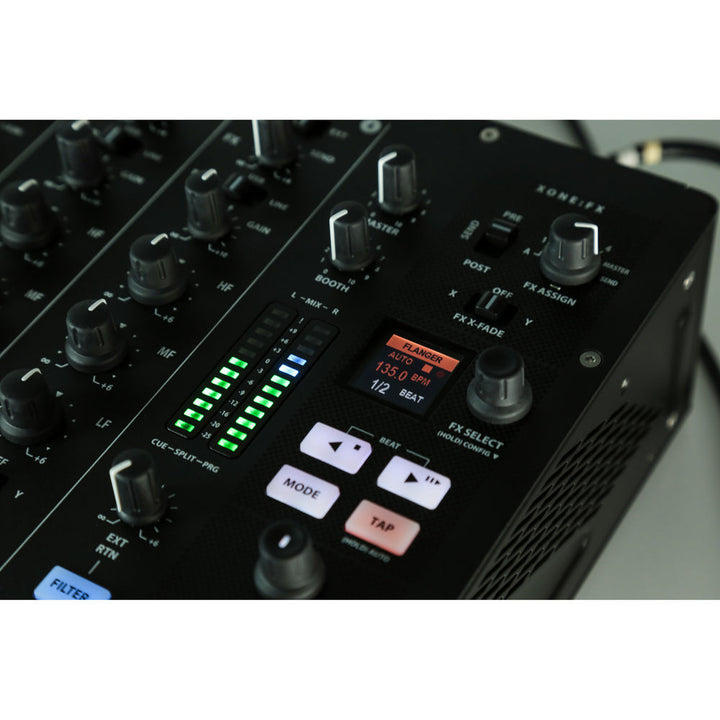

- Xone:Xcite FX suite — spectral delays, resonators, reverbs, modulators, flangers, and distortion
- Hybrid FX mode combines internal effects with the external Send/Return loop
- MIDI clock engine with start/stop and tap tempo
USB Soundcard
- 20-channel (10 in / 10 out), 24-bit, 44.1/48/88.2/96 kHz, USB 2.0
- Traktor Scratch Pro 3 certified
Specifications

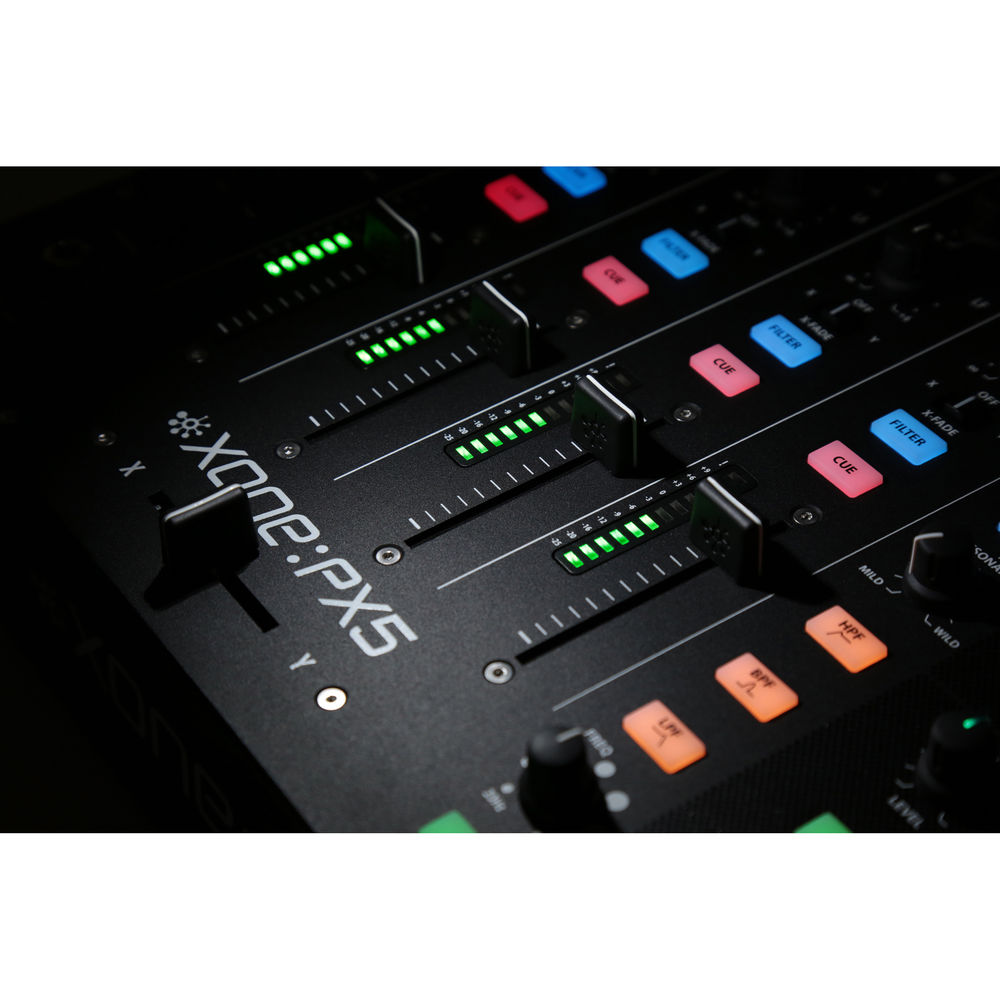

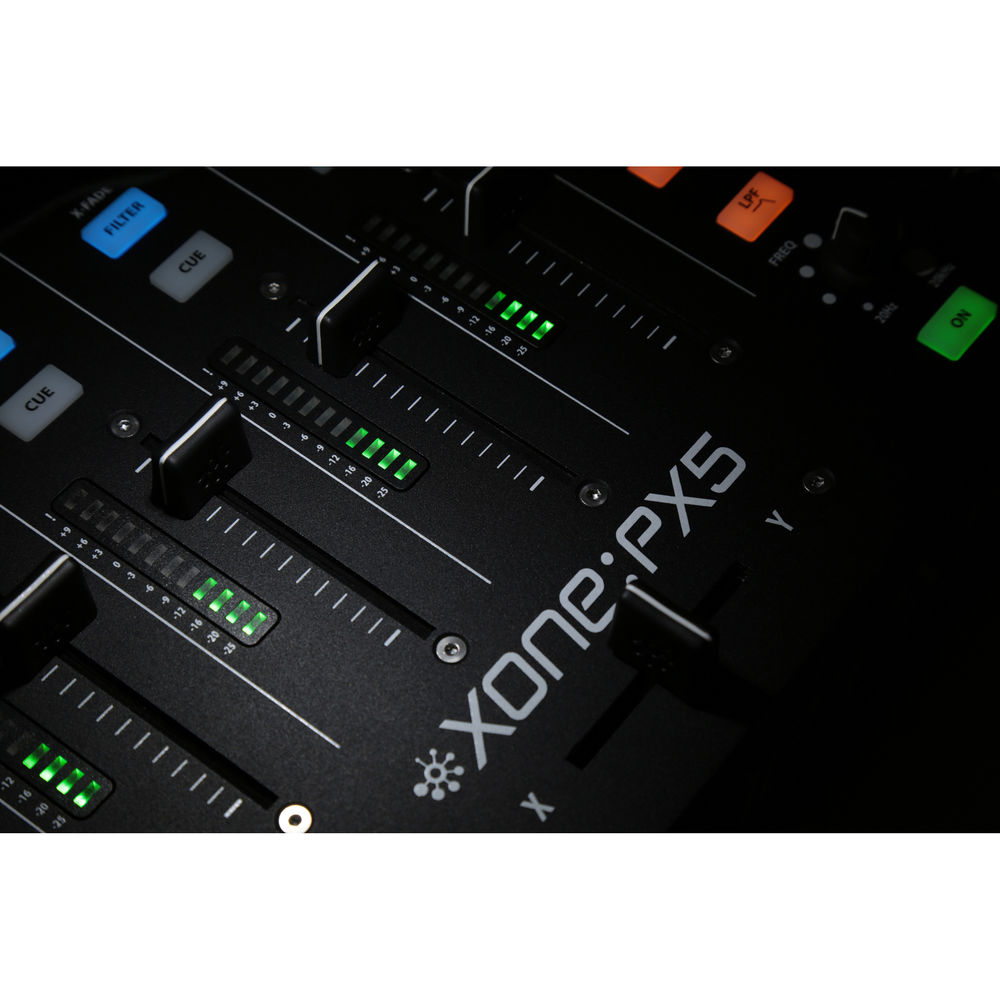

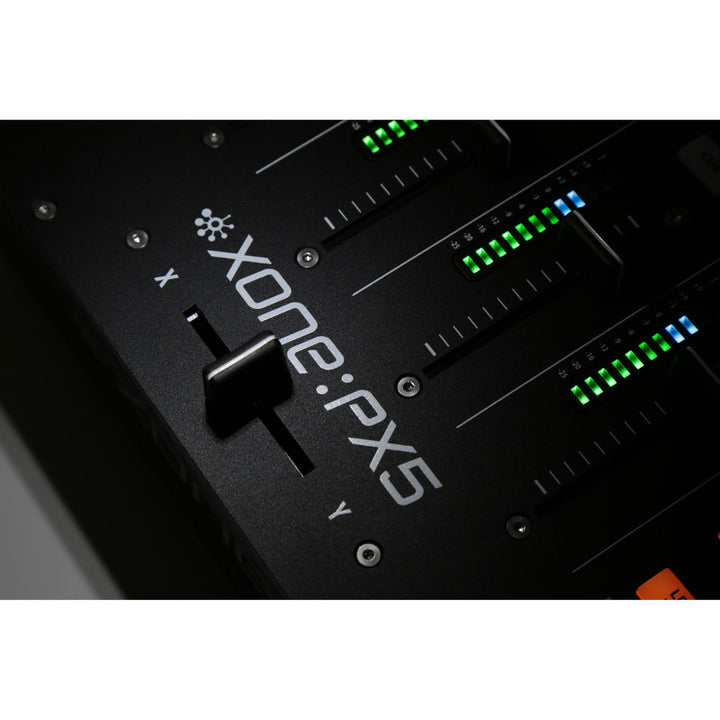

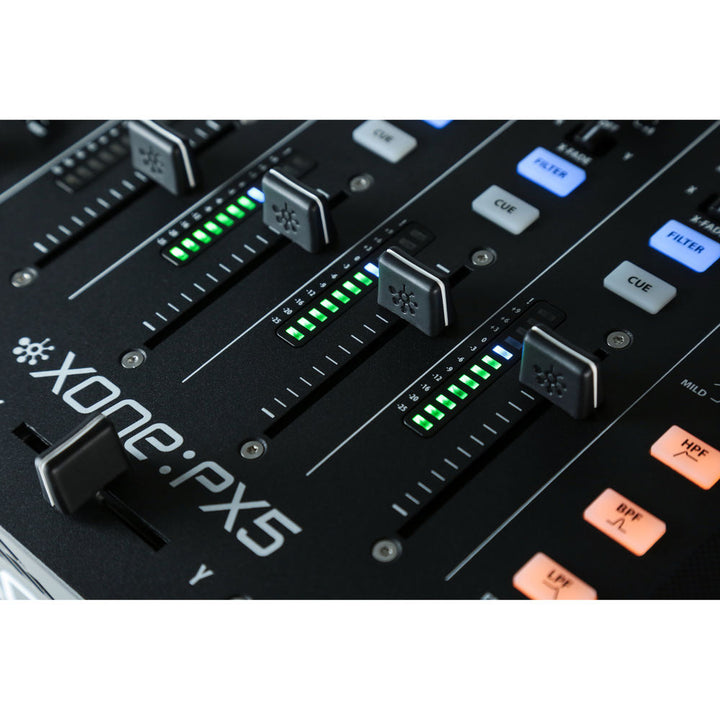

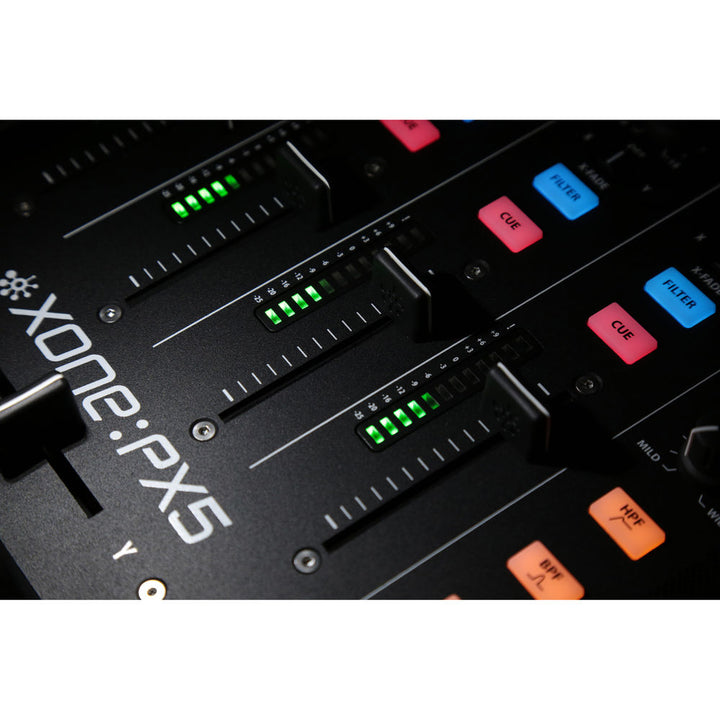

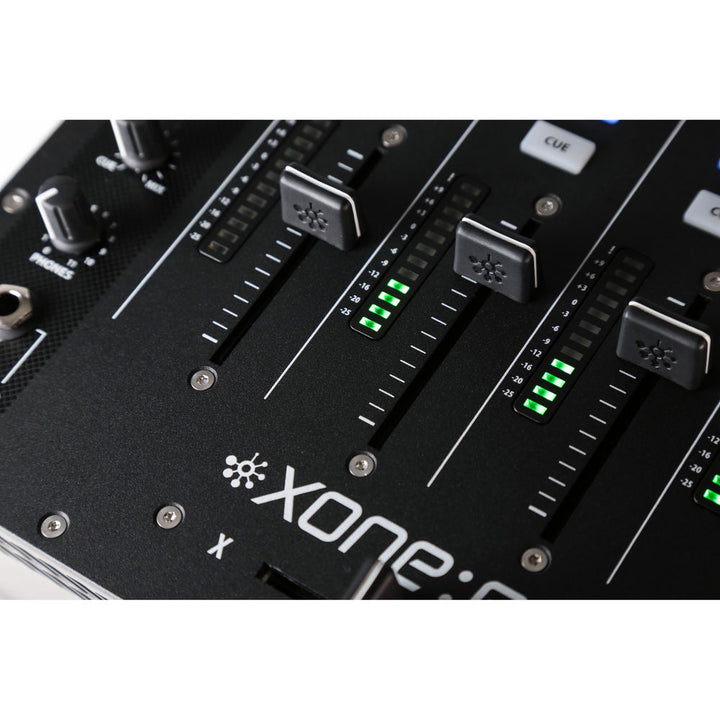

- Faders: 60 mm VCA channel, 45 mm VCA crossfader (innoFADER Pro 2 compatible)

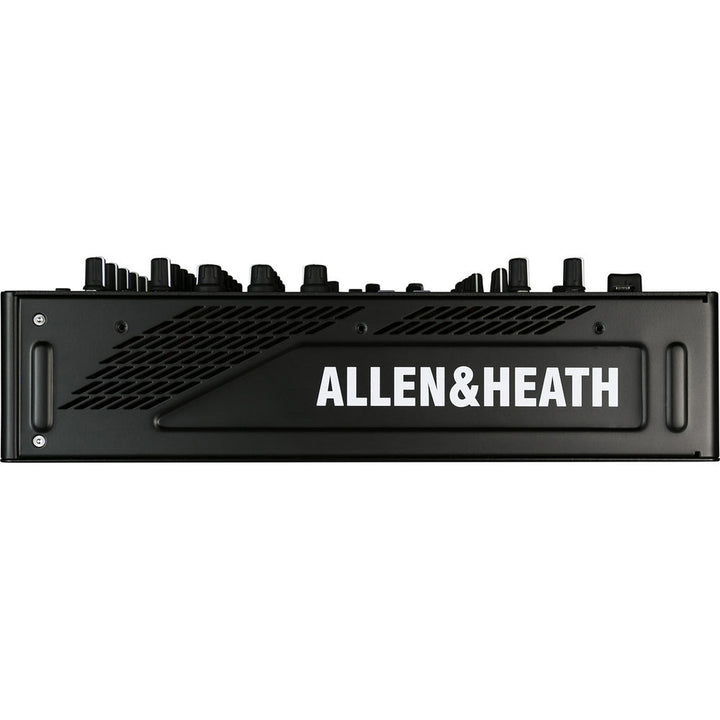

- Dimensions: 320 x 110 x 375.6 mm (12.6 x 4.3 x 14.8 in)
- Weight: 5.2 kg (11.5 lbs)
- Power: 100–240V AC, 35W max, internal PSU
In the Box
- XONE:PX5 mixer
- Mains lead
- Spare knobs and buttons
- Safety sheet
