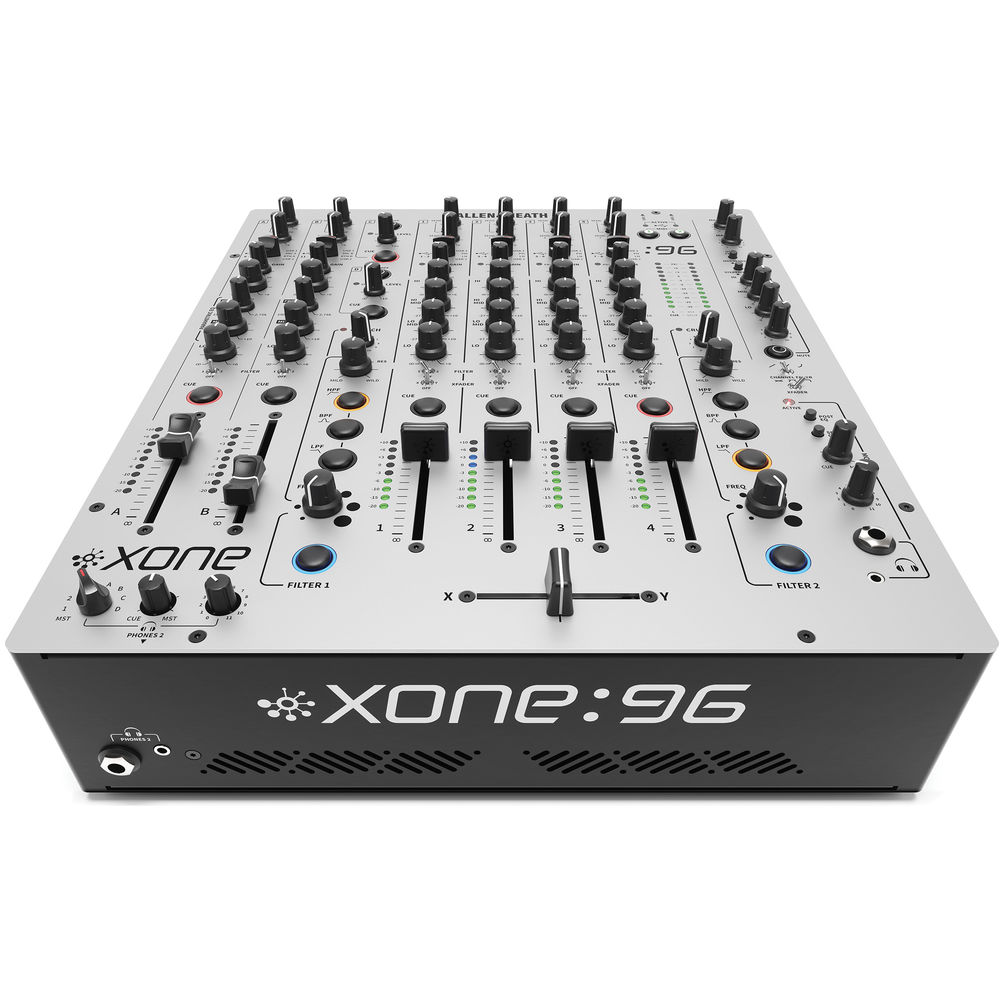

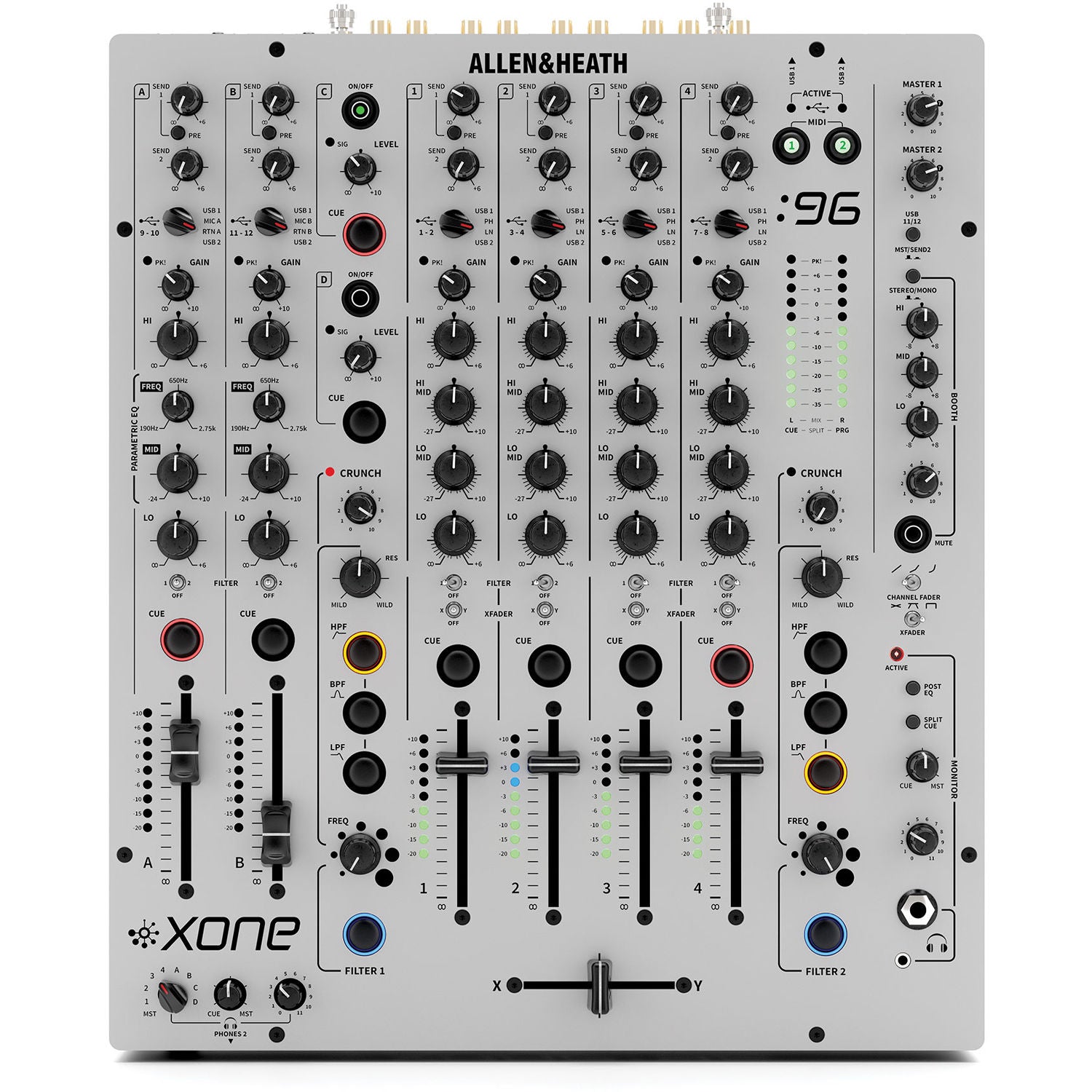

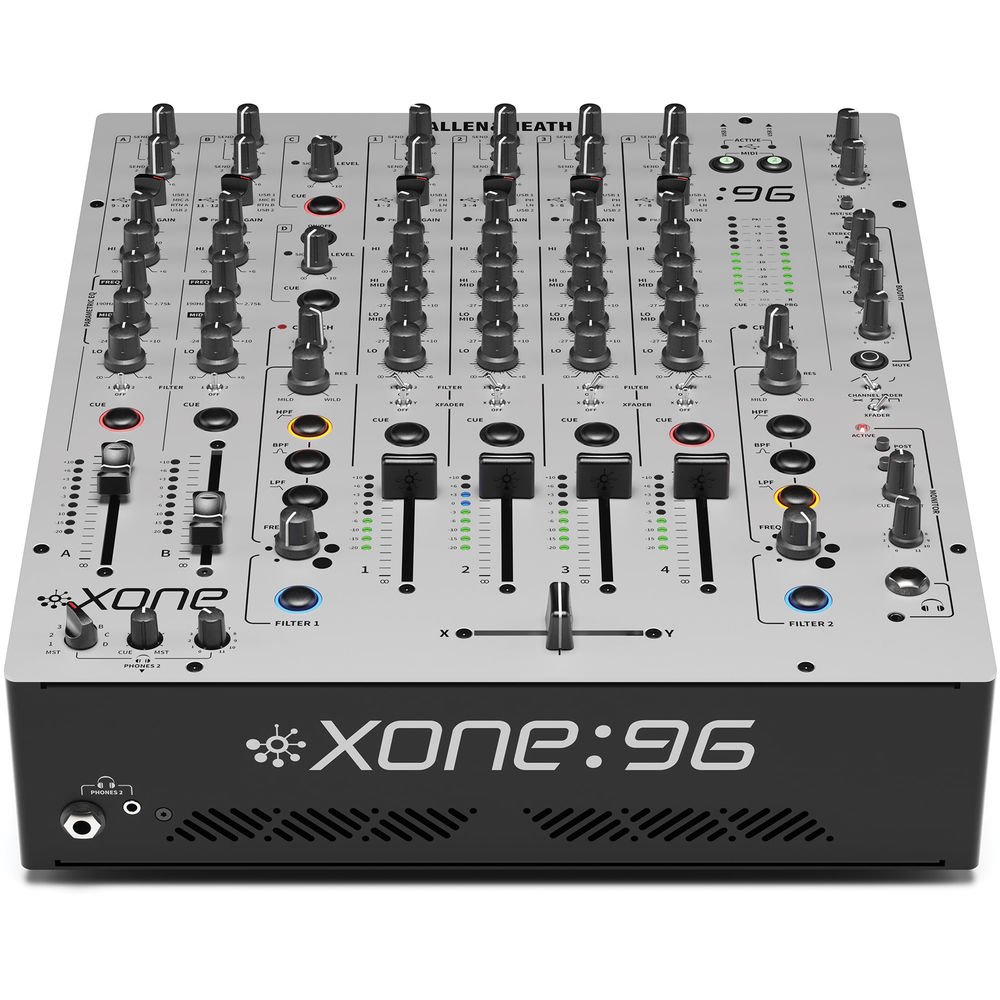

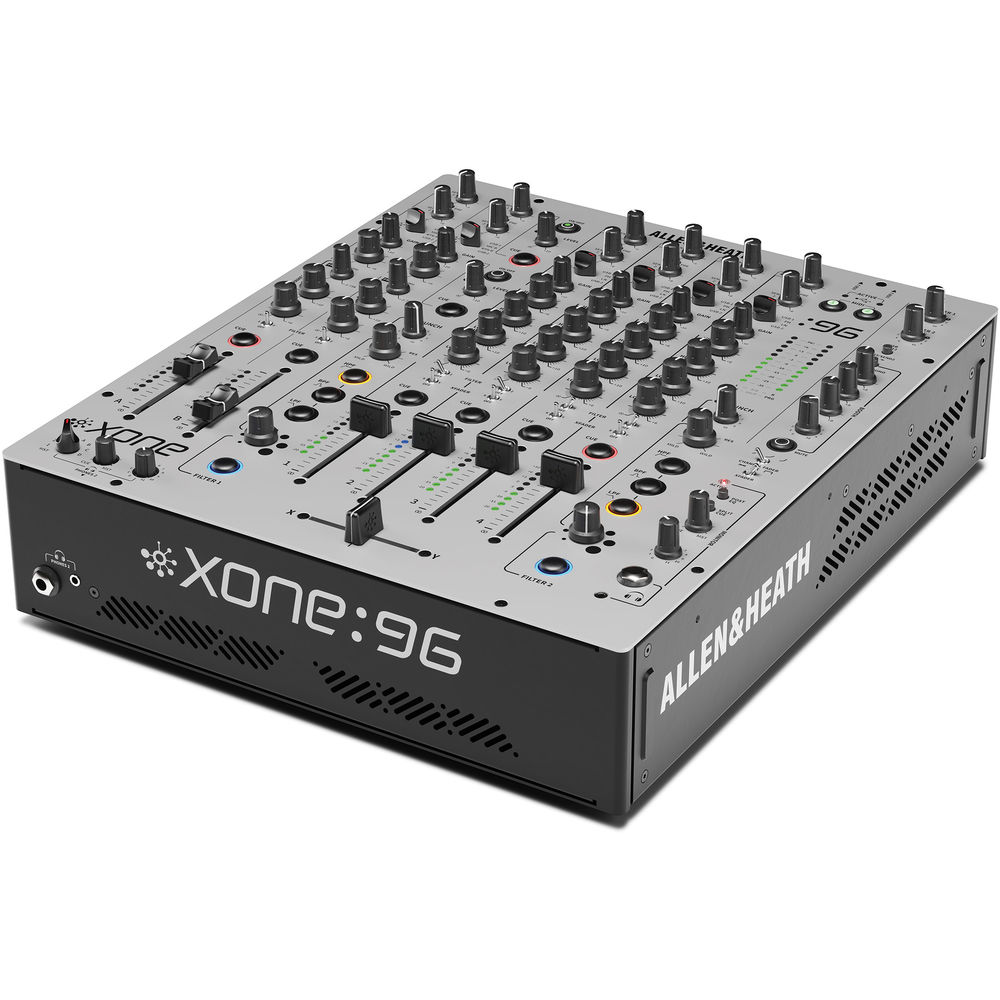

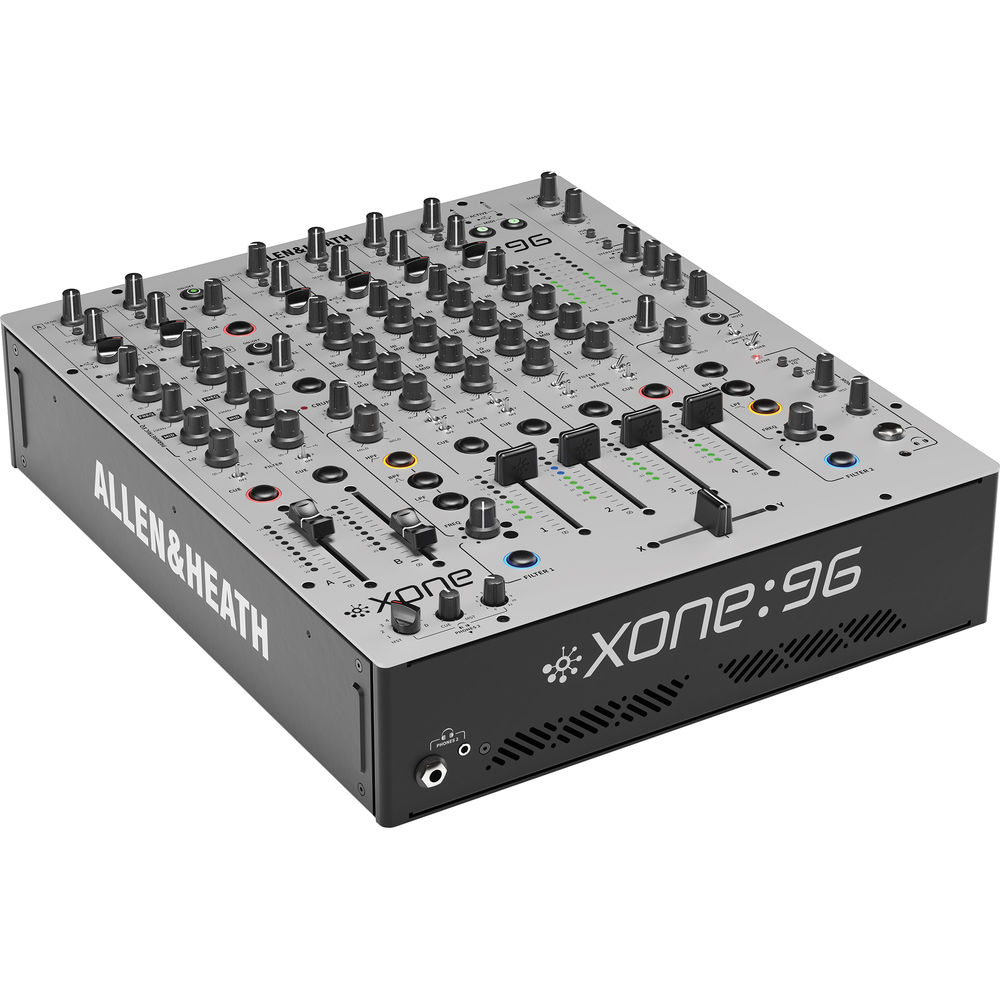

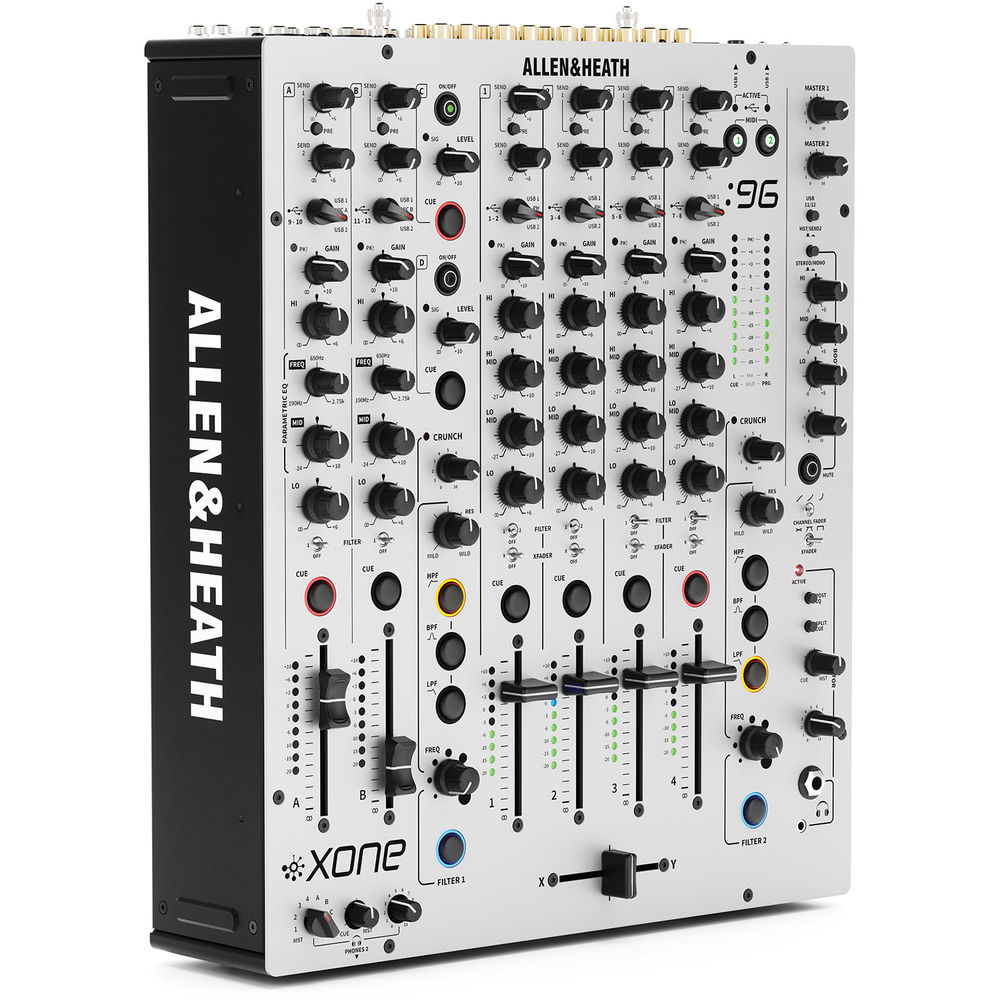

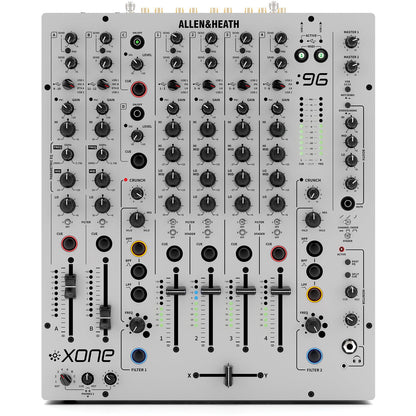

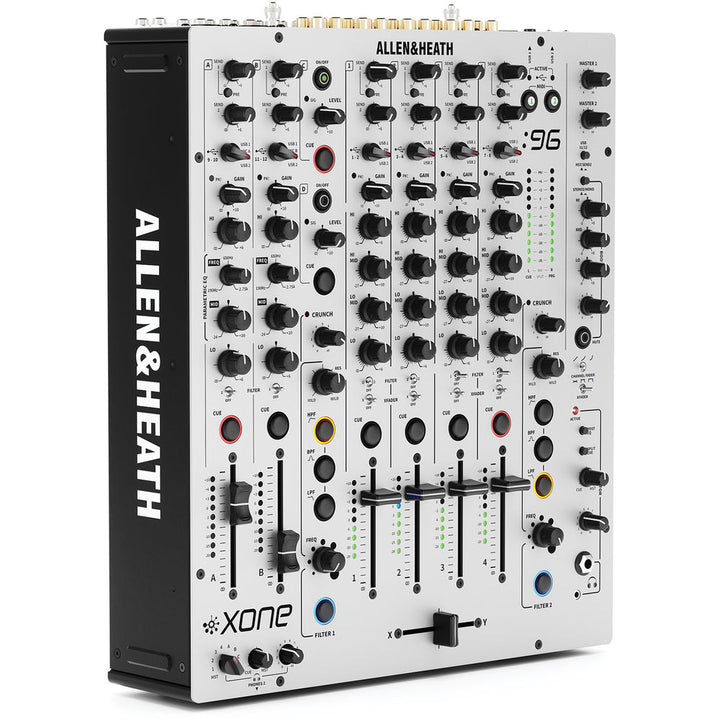

Allen & Heath XONE:96 6+2 Channel Analog Club DJ Mixer

The XONE:96 is Allen & Heath's flagship analog club mixer, built around 6+2 channels, dual independent 32-bit USB soundcards, and two stereo analog VCFs. Dual independent headphone cue systems support true B2B DJ sets, while CRUNCH adds controlled harmonic distortion before the filters for tonal shaping on the fly.

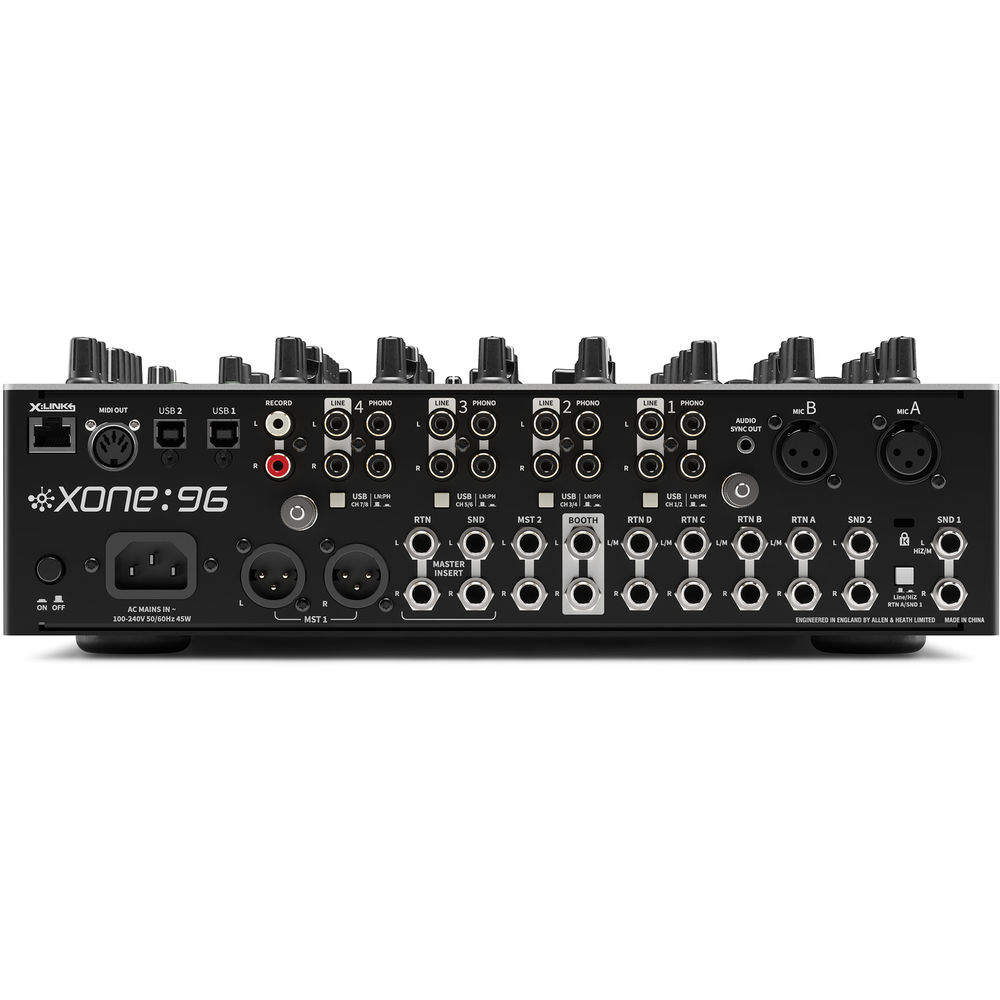

Inputs and Outputs

• 4 stereo main channels (Phono/Line) + 2 stereo return channels + 2 XLR mic inputs
• Phono: 4x RCA | Line: 4x RCA + 4x TRS | Mic: 2x XLR
• Master: 2x XLR | Master 2: 2x TRS | Booth: 2x TRS (all balanced) | Record: 2x RCA

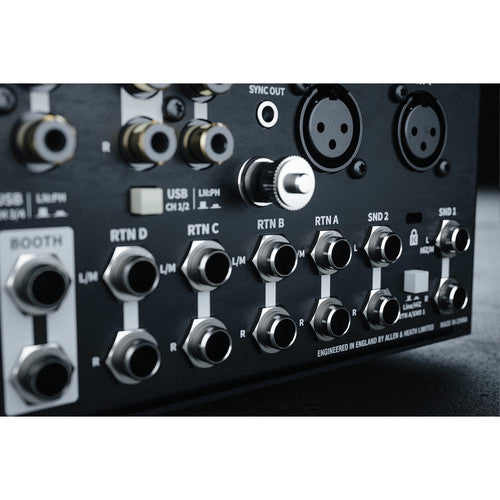

• Sends: 2x TRS | Returns: 4x TRS | Master Insert: send + return TRS

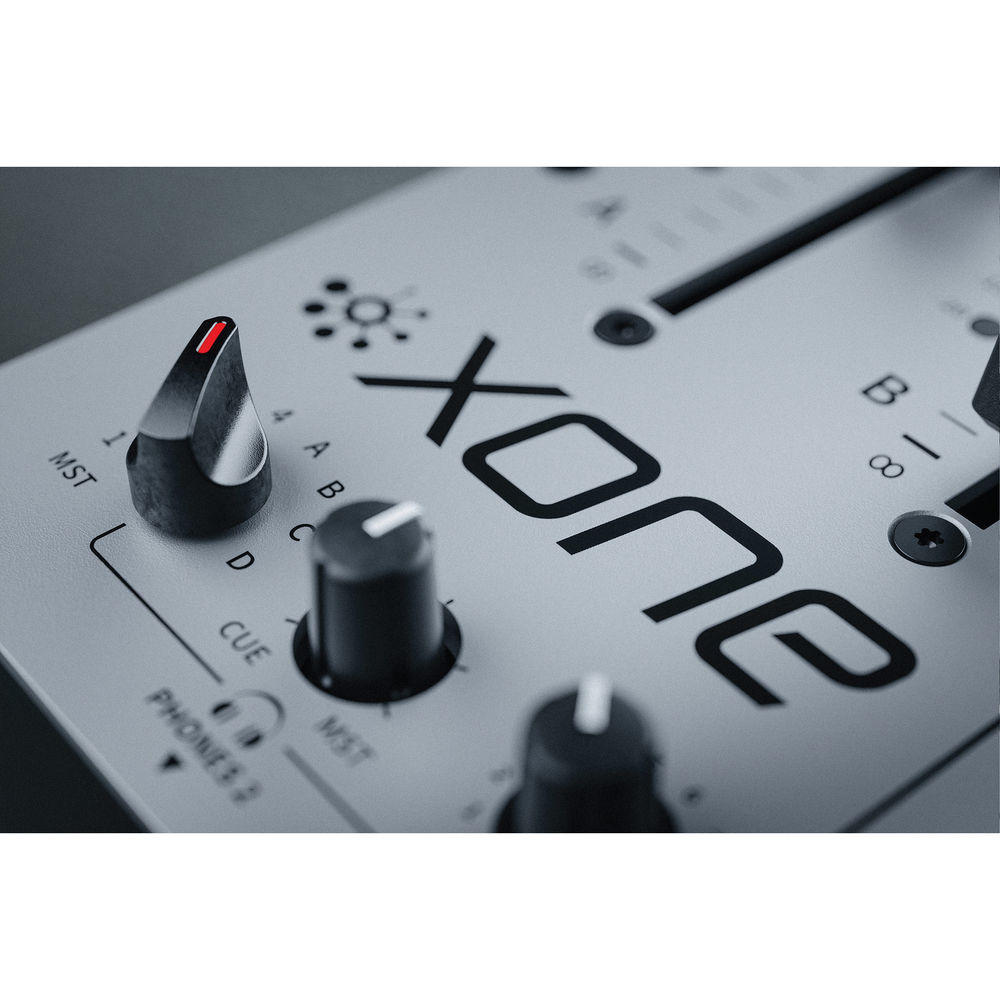

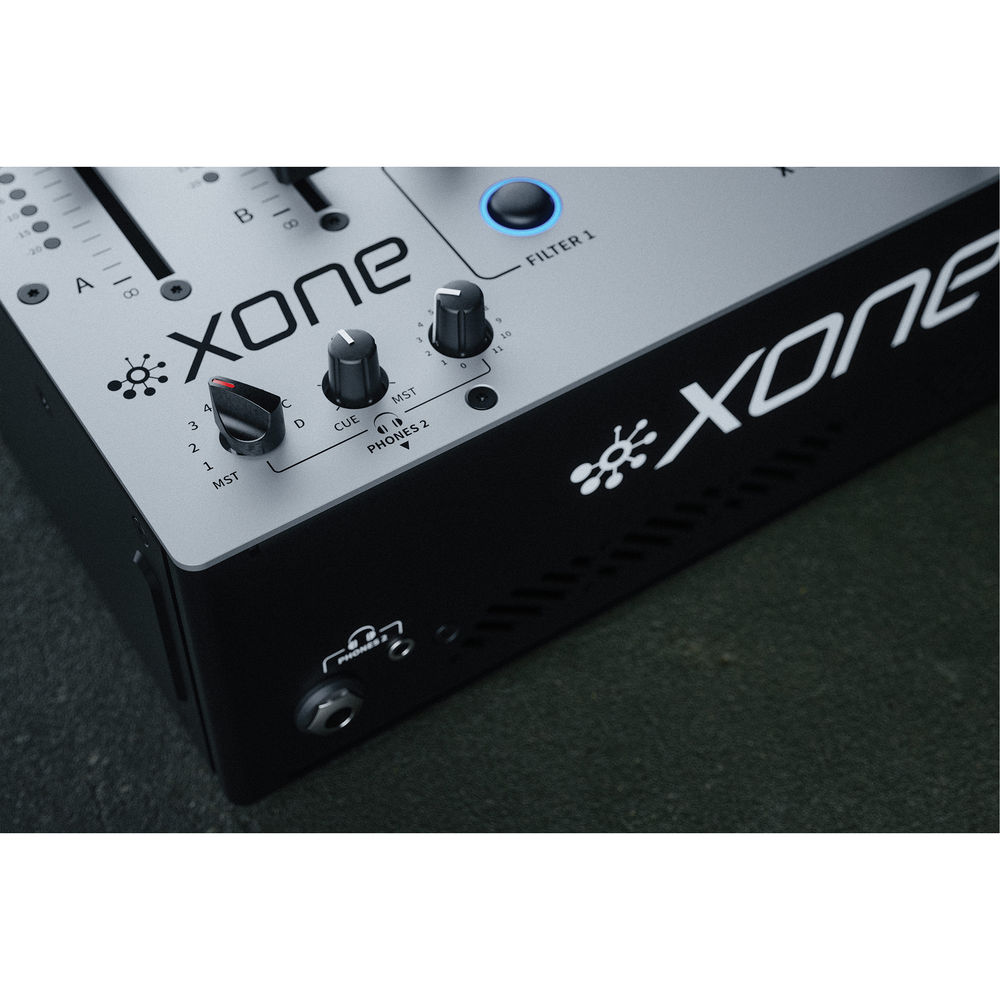

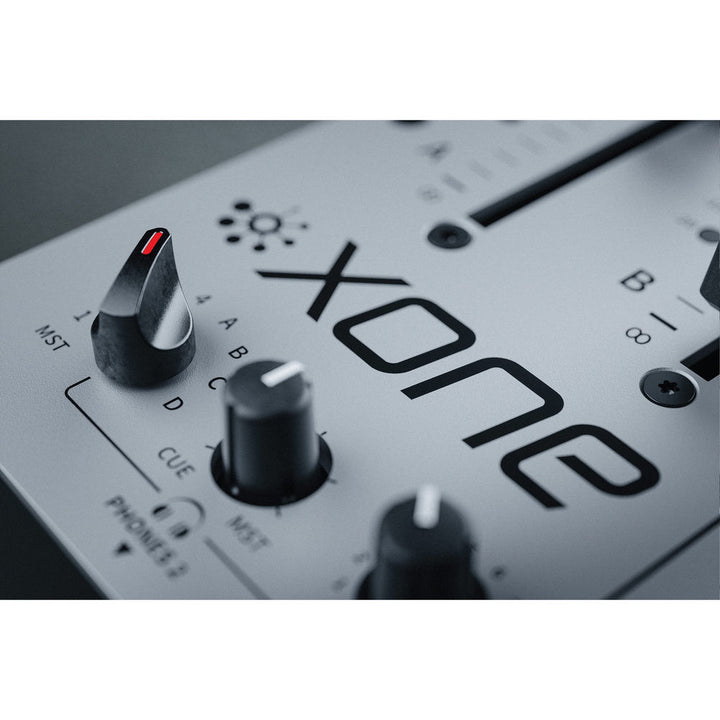

• Headphones: 2x 6.35 mm + 2x 3.5 mm (dual independent CUE systems for B2B)

EQ and Filter

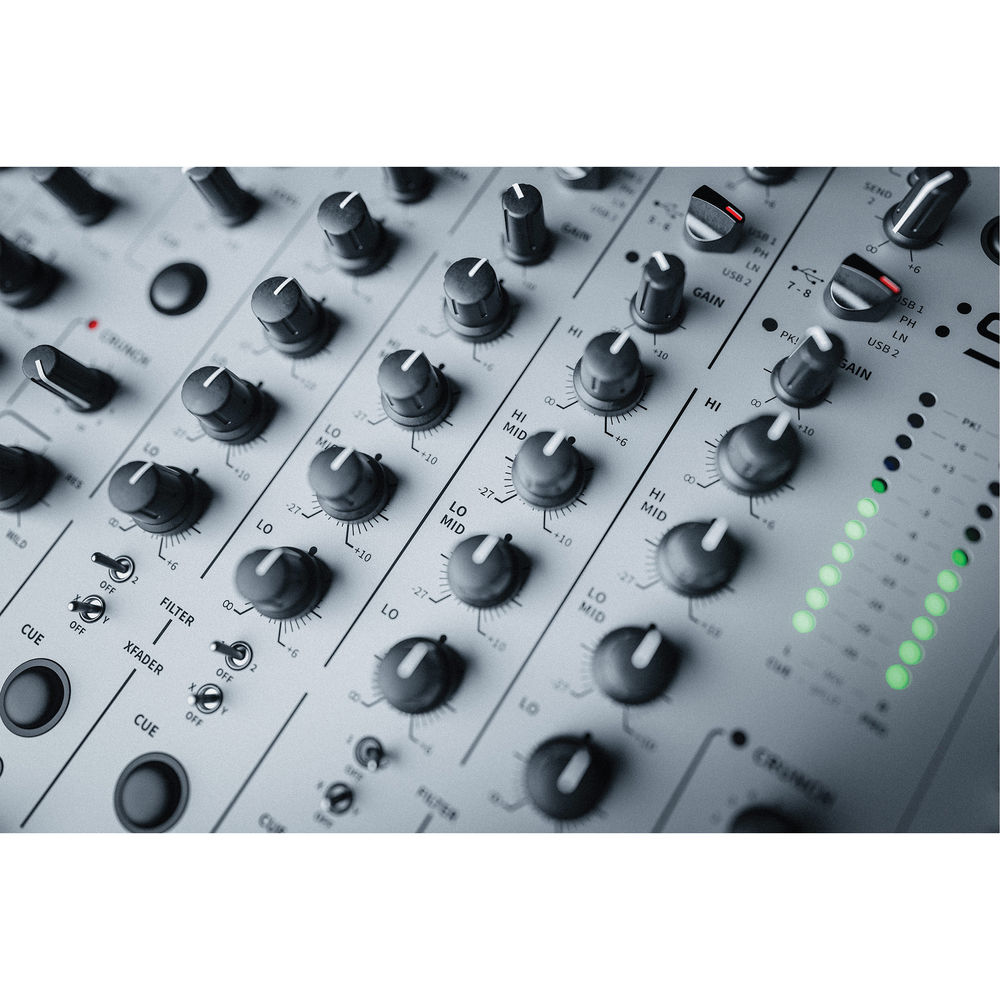

• CH 1–4: 4-band EQ with Total Kill on HI and LO

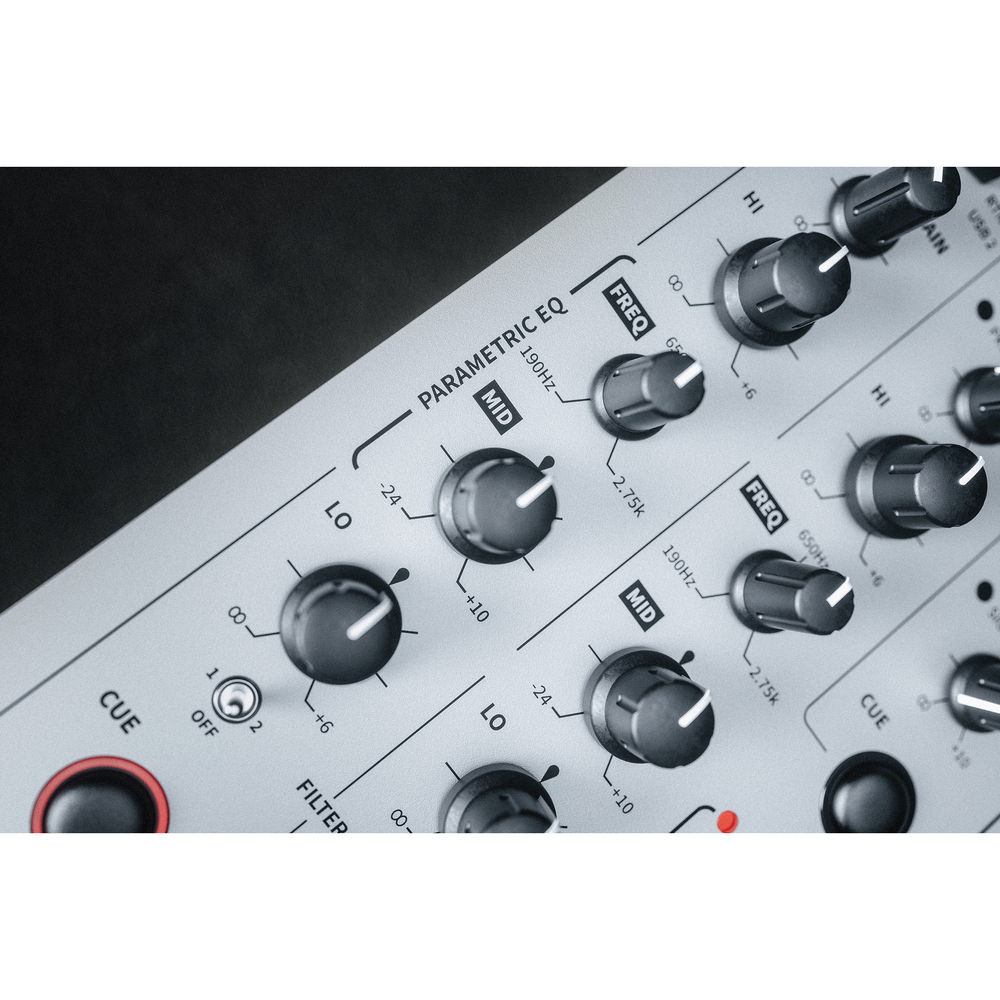

• CH A–B (returns): 3-band parametric EQ

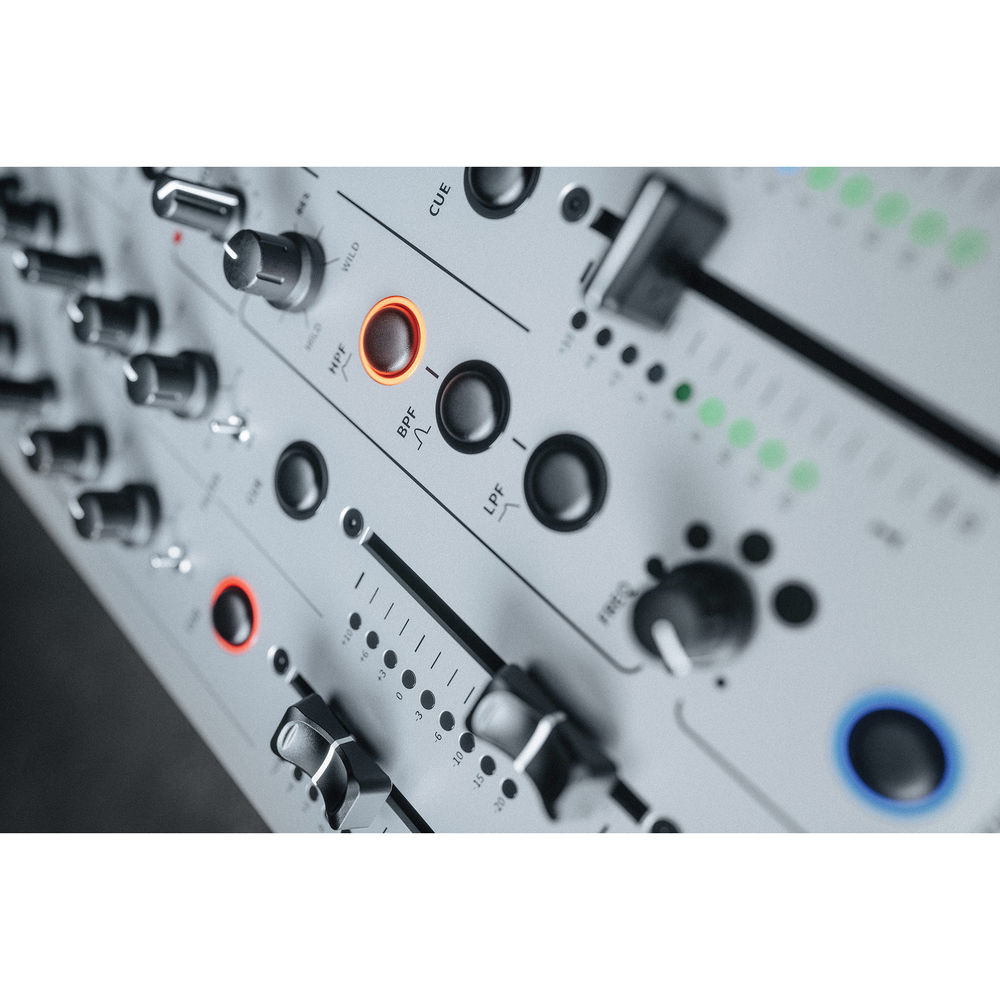

• 2x stereo analog VCF (HPF/BPF/LPF), assignable to CH 1–4 and A–B

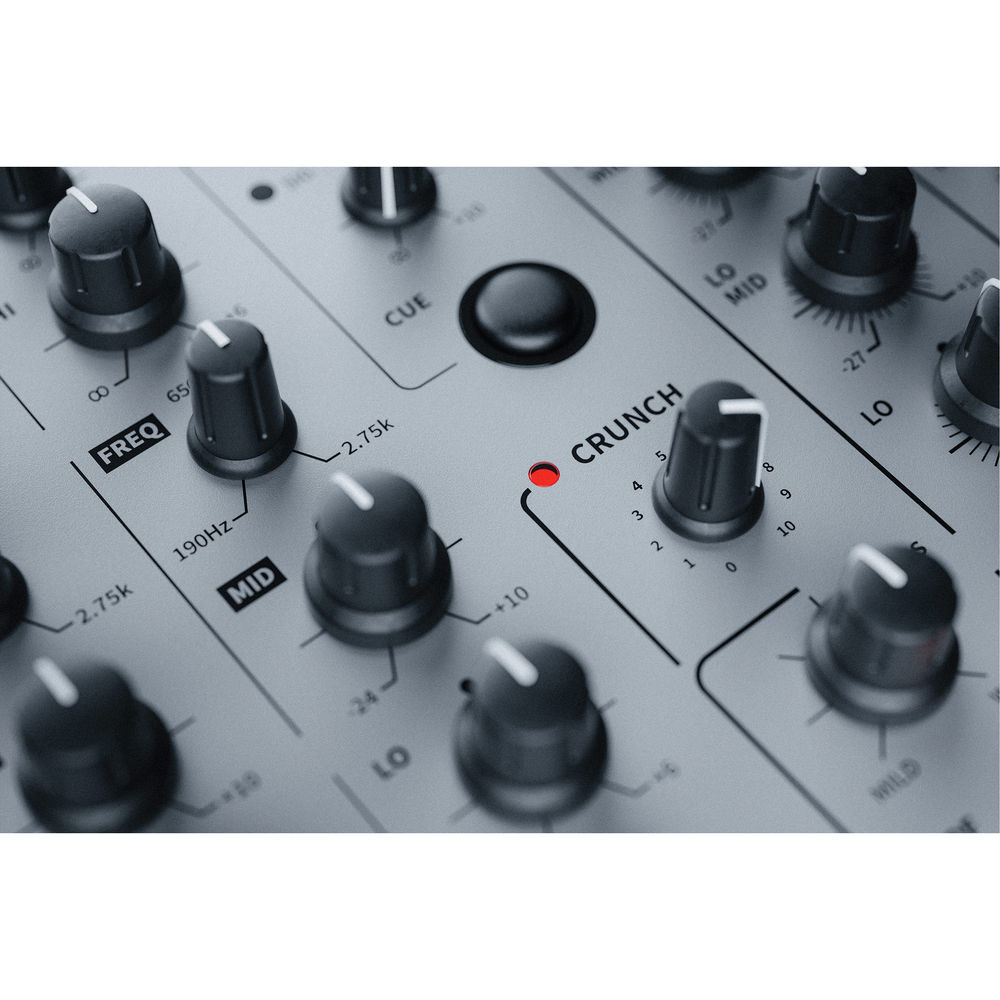

• CRUNCH: controlled harmonic distortion, pre-filter stage

USB Soundcard

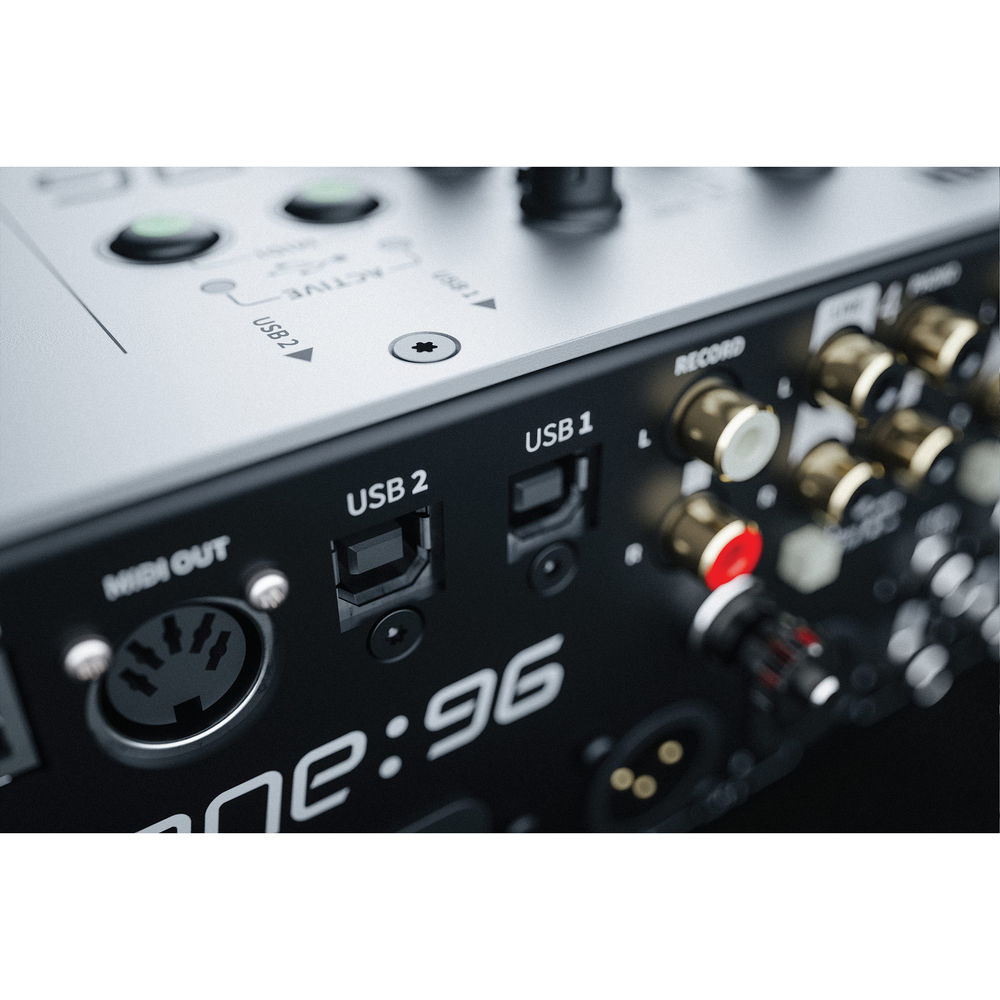

• 2x independent soundcards, 12 in / 12 out each
• 32-bit, up to 96 kHz
• Traktor Scratch Pro 3 certified

Specifications

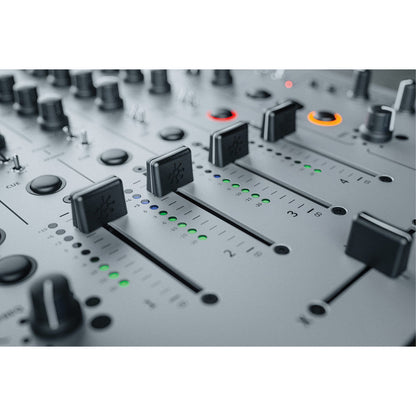

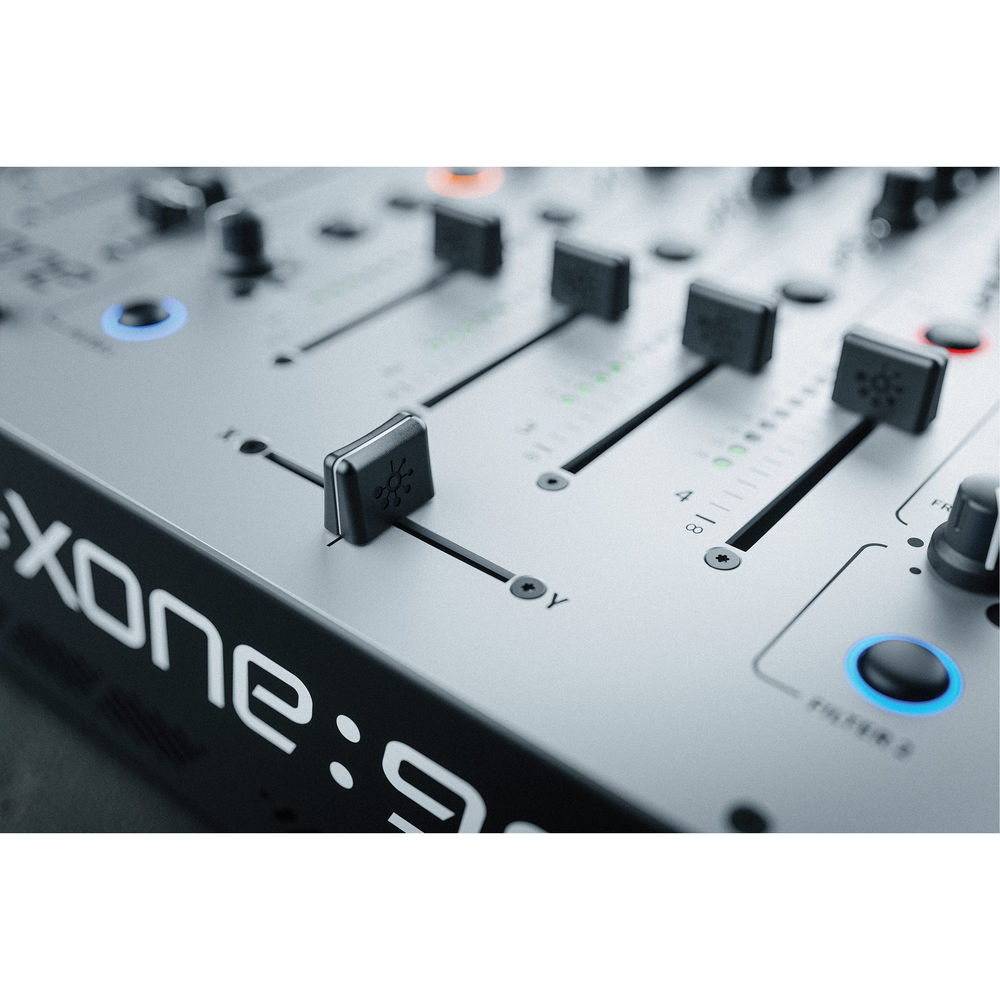

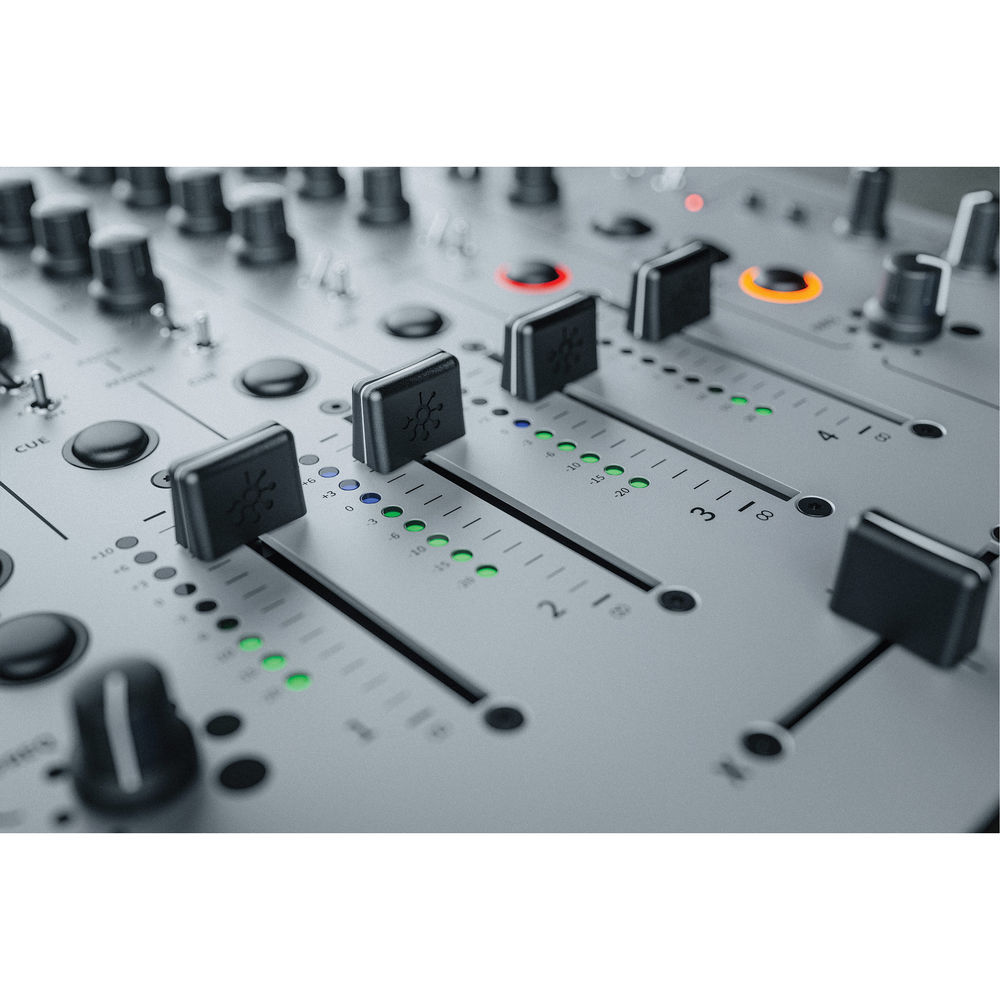

• Faders: 60 mm VCA channel, innoFADER Mini crossfader pre-installed
• Dimensions: 336 x 109 x 410 mm (13.25 x 4.3 x 16.2 in)
• Weight: 7.0 kg (15.4 lbs)
• Power: 100–240V AC, 45W max

In the Box

• XONE:96 mixer
• USB cable
• Mains cable
• Spare knobs
• Safety sheet
