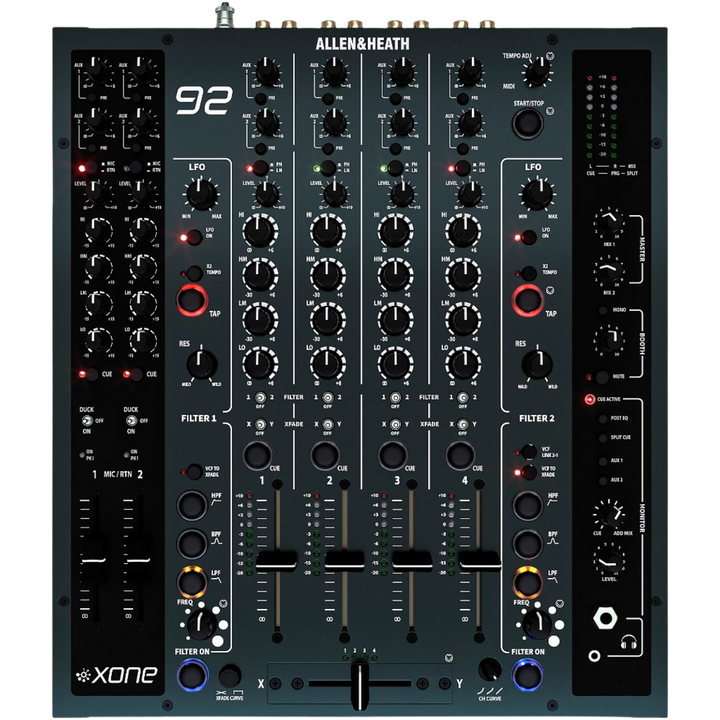

Allen & Heath XONE:92 MK2 4+2 Channel Analog DJ Mixer

The XONE:92 MK2 is the standard production successor to the XONE:92, incorporating every refinement introduced with the Limited Edition into an ongoing model. Silent VCF switching, refined filter tapers, improved RIAA phono preamps, and an innoFADER Pro crossfader all come as standard. Finished in storm grey with UV-reactive legends, the MK2 is a pure analog 4+2 channel mixer built for the booth.

Inputs and Outputs

• 4 stereo Phono/Line channels + 2 Mic/Line Return channels
• Phono: 4x RCA | Line: 4x RCA + 2x TRS | Mic: 2x XLR
• MIX 1: 1x XLR | MIX 2: 1x TRS | Booth: 1x TRS | Record: 1x RCA
• Aux Send: 2x TRS | Return: 2x TRS
• MIDI: 1x 5-pin DIN

EQ and Filter

• 4-band EQ on CH 1–4 with Total Kill on HI and LO
• 2x stereo analog VCF with silent switching, enhanced resonance, and refined taper
• Improved RIAA phono preamps

Specifications

• Faders: 60 mm VCA channel, innoFADER Pro crossfader, 3-way curve switch
• Dimensions: 320 x 106 x 376 mm (12.6 x 4.2 x 14.8 in)
• Weight: 7.0 kg (15.4 lbs)
• Power: 100–240V AC, 30W max, internal SMPS
• Finish: Storm grey with UV-reactive legends

In the Box

• XONE:92 MK2 mixer
• Mains cable
• Spare knobs
• Dual ground adaptor
• QR card
