Description
Overview

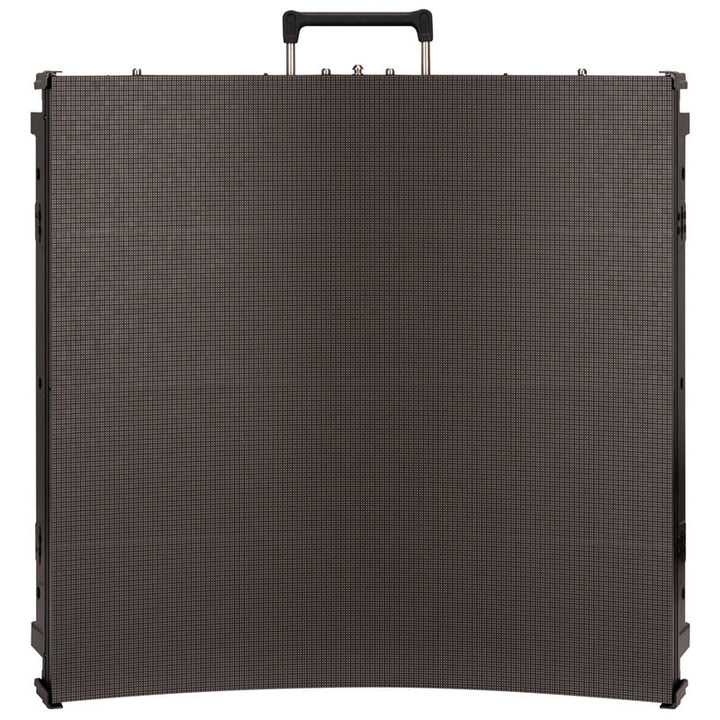

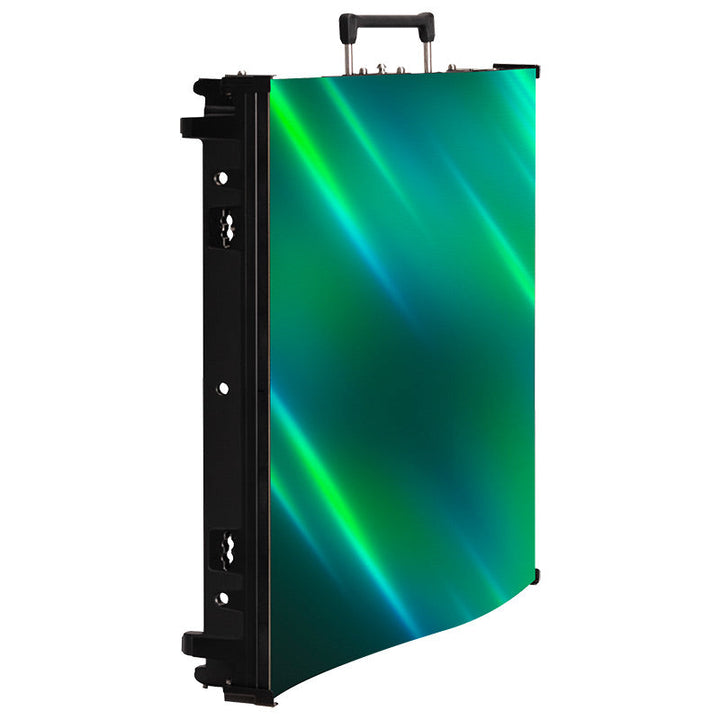

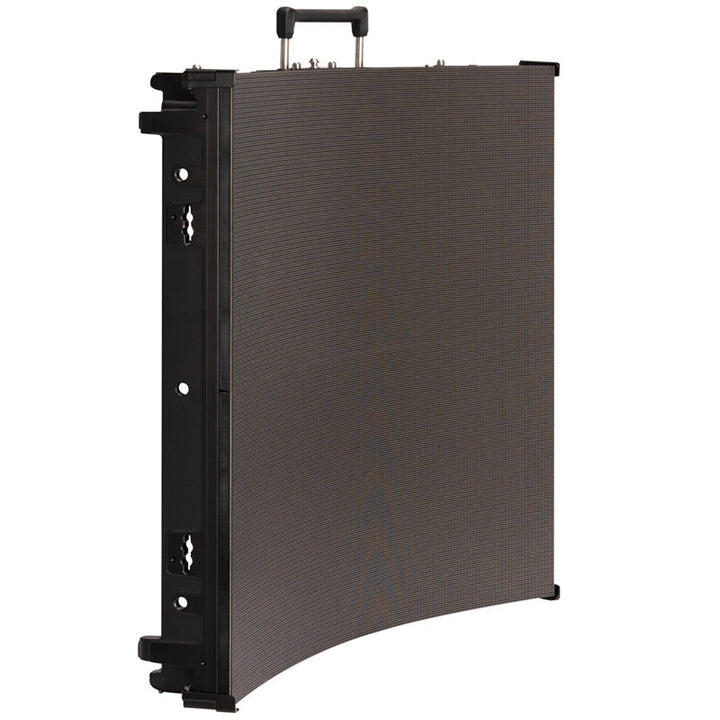

The ADJ VS1 FLEX45 is a 1.95mm pixel pitch LED video panel from ADJ's Vision Series, built with 4-in-1 MiniLED pixels. Each panel can curve up to 45° concave or convex for curved video walls. It runs at 1500 nits with a 7680Hz refresh rate and a 256 x 256 pixel resolution per panel. Four rear-serviceable modules keep their calibration, brightness and color data on board (Memory on Module), and a Novastar A5s receiving card is built in. Up to eight panels fit the EVSF45FC flight case, and the FLEX45RB rigging bar hangs up to 20 panels vertically.
Key Features
- Pixel pitch: 1.95mm with 4-in-1 MiniLED pixels.

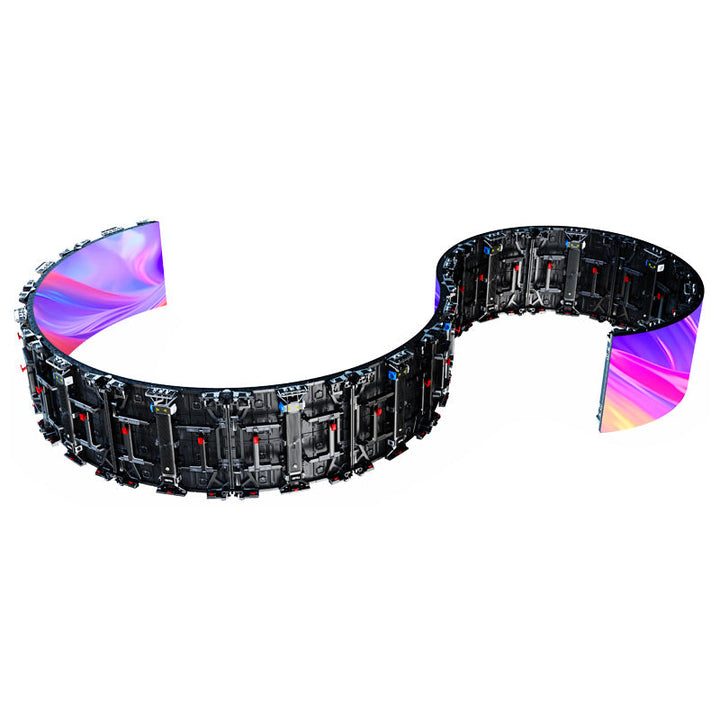

- Curve: Up to 45° concave or convex.
- Image: 1500 nits, 7680Hz refresh rate, 10000:1 contrast and 14-bit or higher grayscale.
- Resolution: 256 x 256 pixels per panel from four 256 x 64 modules.

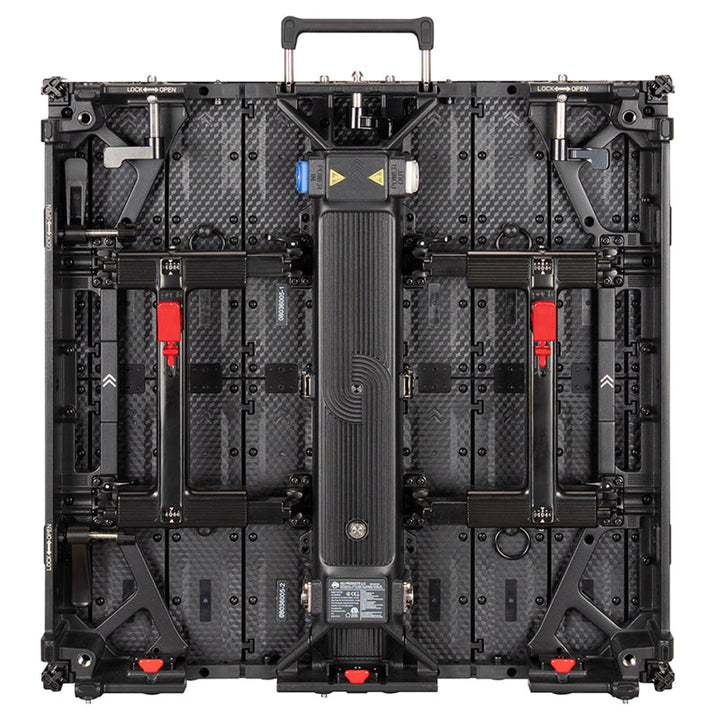

- Service: Rear-serviceable modules with Memory on Module (MOM) storing calibration, brightness and color profiles.
- Processing: Built-in Novastar A5s receiving card, run from a Novastar synchronous system.
- Connections: PowerLock in/out and DataLock in/out.

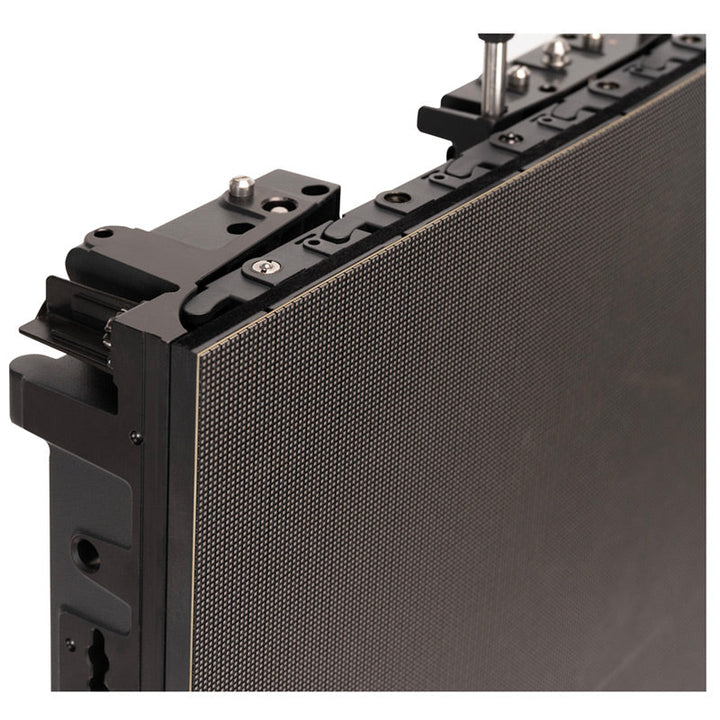

- Protection: Corner protectors guard the panel edges during transport, setup and teardown.
- Accessories (sold separately): EVSF45FC flight case for up to 8 panels and FLEX45RB rigging bar for up to 20 panels.
Specifications
- LED type: MiniLED 4-in-1
- Pixel pitch: 1.95mm
- Drive IC: ICN2153S
- Pixel density: 262,144 per square meter
- Panel resolution: 256 x 256 pixels
- Modules: 4 per panel, 500 x 125 mm, 256 x 64 pixels each
- Curve: Up to 45° concave or convex
- Brightness: 1500 nits
- Viewing angle: 160° horizontal, 140° vertical
- Contrast ratio: 10000:1
- Grayscale: 14-bit or higher
- Refresh rate: 7680Hz
- Frame rate: 50-75Hz
- Scan mode: 1/16
- Processing: 16-bit
- Brightness adjustment: 0-100%, 100 levels
- Receiving card: Novastar A5s
- Control distance: Ethernet under 120 m, fiber over 120 m
- Power input: 100-240V, 50-60Hz
- Max power consumption: 150W per panel
- Average power consumption: 60W per panel
- Connections: PowerLock in/out, DataLock in/out
- Surface flatness: Gaps under 0.5mm
- Operating life: 50,000 hours
- IP rating: IP20
- Operating temperature: -4°F to 104°F (-20°C to 40°C)
- Operating humidity: 10-90%, non-condensing
- Dimensions: 20.3 x 19.7 x 3.1 in (515 x 500 x 80 mm)
- Weight: 18.3 lb (8.3 kg)
- Approvals: cETLus (pending)
