Description
Overview

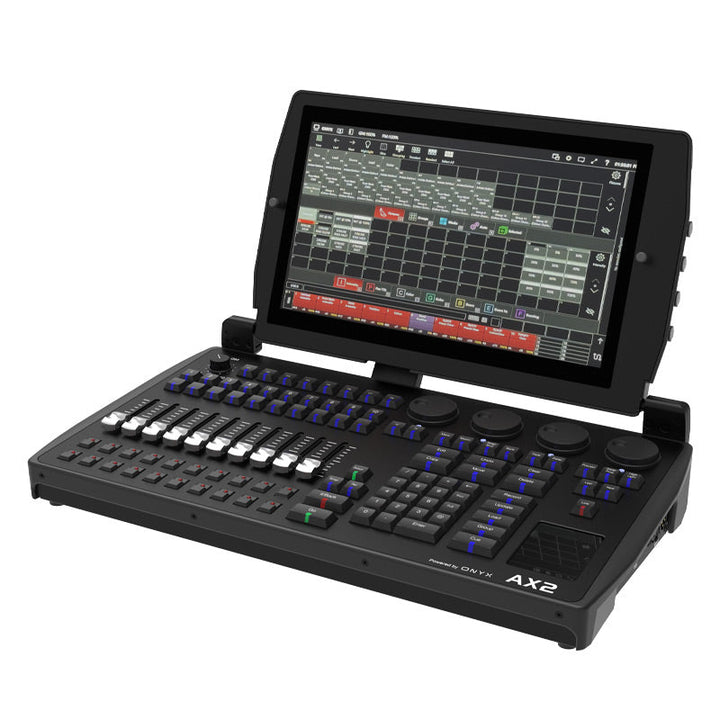

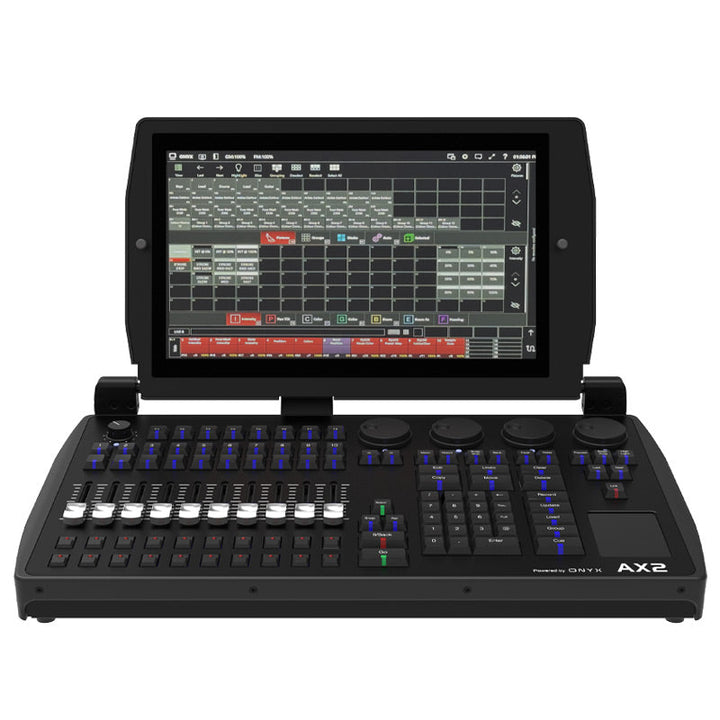

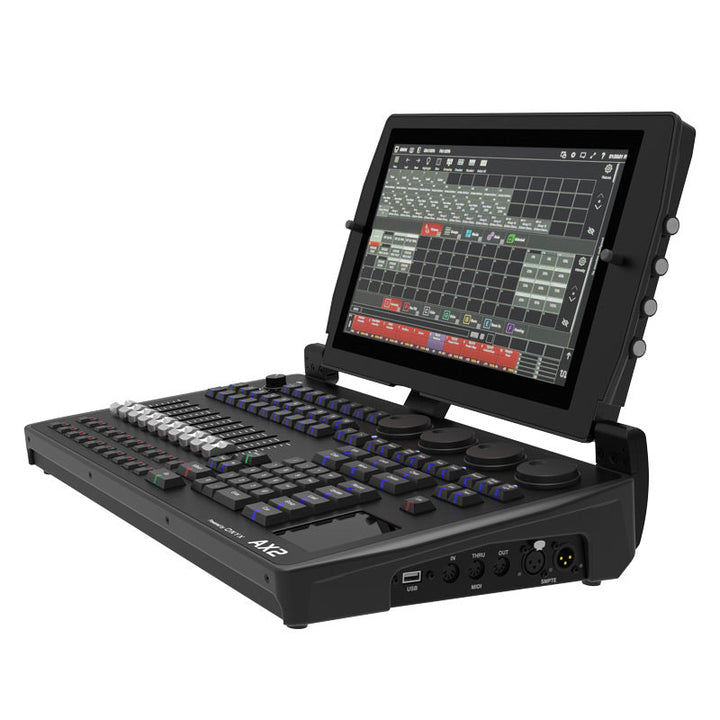

The ADJ AX2 is a compact lighting console that runs Obsidian Control Systems' ONYX platform, the first in ADJ's range to do so. It processes 32 universes inside the console, with four DMX/RDM ports and two Gigabit ports for Art-Net, sACN and ONYX X-Net. The surface has an adjustable 15.6" Full HD multi-touch screen, a 3.5" touchscreen, 8 encoders, 10 playback faders with four buttons each, a grand master and a full keypad and command section. The DYLOS media engine with 5 zones of pixel control is included, and two external 4K touch displays can be added. Inside are an Intel i5 hexa-core CPU, 16 GB of DDR4 RAM and a 500 GB NVMe SSD.
Key Features
- ONYX software: Powered by ONYX from Obsidian Control Systems.
- 32 universes: Processed inside the console, with 4 DMX/RDM ports and 2 Gigabit ports for Art-Net, sACN and ONYX X-Net.
- Screens: Adjustable 15.6" Full HD multi-touch screen and a 3.5" RGB touchscreen, with support for 2 external 4K touch displays over DisplayPort.
- Playbacks: 10 x 60mm faders, each with 4 assignable buttons, plus a Master Go section with Go, Pause, Snap and Release.
- Encoders: 4 rotary encoders with push and status LED, plus 4 screen-mounted encoders with push.
- DYLOS: Built-in media and pixel engine with 5 zones of pixel control.
- Show control: SMPTE timecode in/out and MIDI in/out/thru for MIDI show control, notes and timecode.
- Hardware: Intel i5 hexa-core CPU, 16 GB DDR4 RAM, 500 GB NVMe SSD, Windows 11 IoT Embedded, and a quiet copper heat pipe cooling design.
- Expansion: Compatible with the Obsidian Control Systems NXP motorized fader wing.
Specifications
- Software: ONYX (Obsidian Control Systems)
- Universes: 32, processed internally
- Media engine: DYLOS, 5 zones of pixel control
- Main screen: 15.6" TFT 16:9 multi-touch, 1920 x 1080, adjustable
- Second screen: 3.5" RGB touchscreen
- External displays: 2 x DisplayPort (up to 4K)
- Playbacks: 10 x 60mm faders, 4 assignable buttons each
- Encoders: 8 (4 with push and status LED, 4 screen mounted with push)
- Processor: Intel i5 hexa-core
- Memory: 16 GB DDR4
- Storage: 500 GB NVMe M.2
- Operating system: Windows 11 IoT Embedded

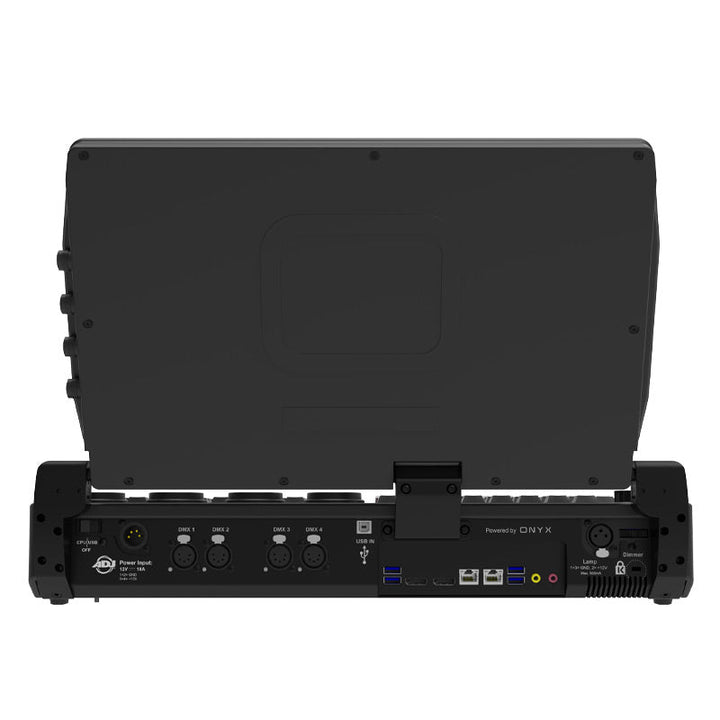

- DMX: 4 x DMX/RDM universe in/out, 5-pin locking XLR
- Network: 2 x Gigabit (Art-Net, sACN, ONYX X-Net)
- USB: 4 x USB 3.0, 1 x USB 2.0
- Audio: 3.5mm audio out, 3.5mm mic in

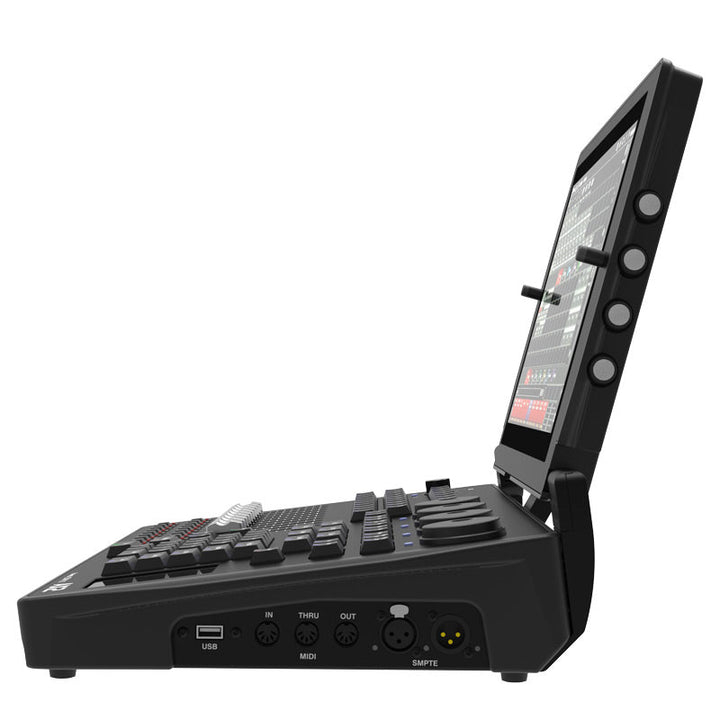

- MIDI: In/out/thru, 5-pin DIN
- Timecode: SMPTE in/out, 3-pin XLR
- Desk lamp: XLR 12V
- Power input: 12 VDC, 4-pin XLR
- Power supply: External, 100-240V, 50/60Hz in, 12 VDC 11A (132W max) out
- Dimensions (L x W x H): 11.9 x 21.3 x 4.8 in (300 x 540 x 121 mm)
In the Box
- 1x RGB LED desk lamp, 13", angled XLR connector

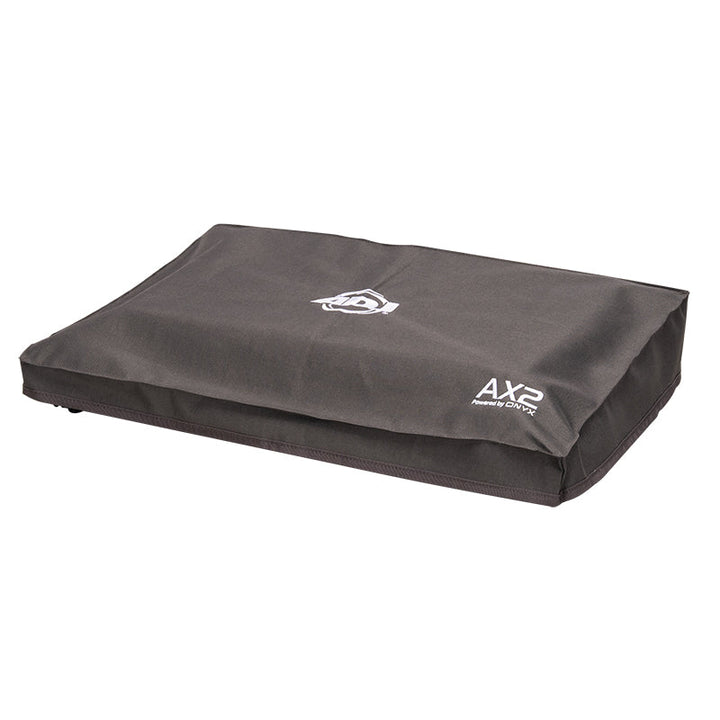

- 1x Dust cover
- 1x USB cable
- 1x External PSU (12V 11A)
- 1x 1.5m IEC power cable
- 1x USB recovery flash drive and installation manual
