ADAM Audio T7V 7" 2-Way Active Nearfield Monitor

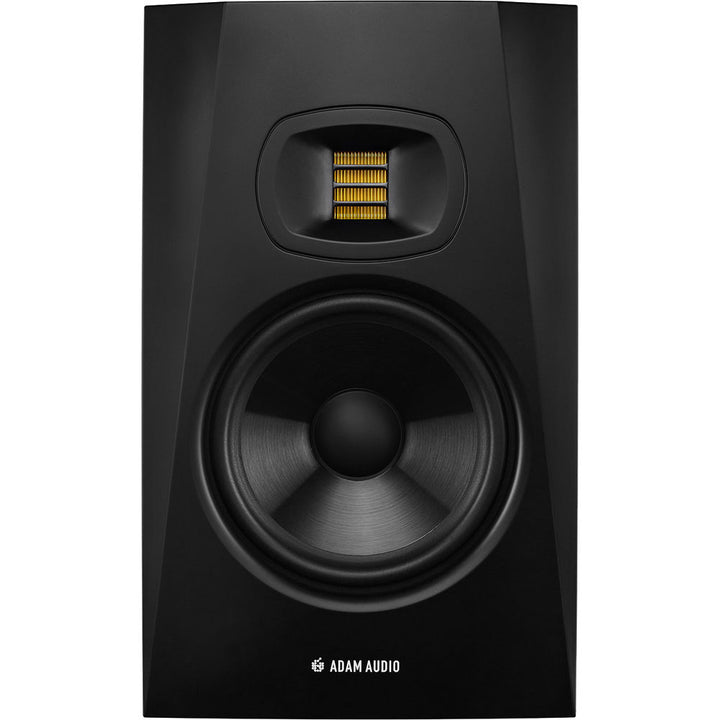

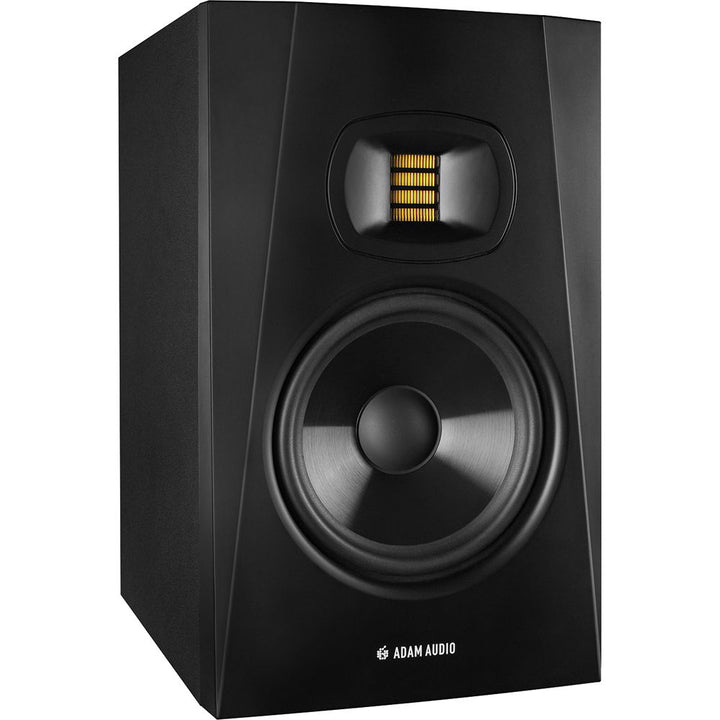

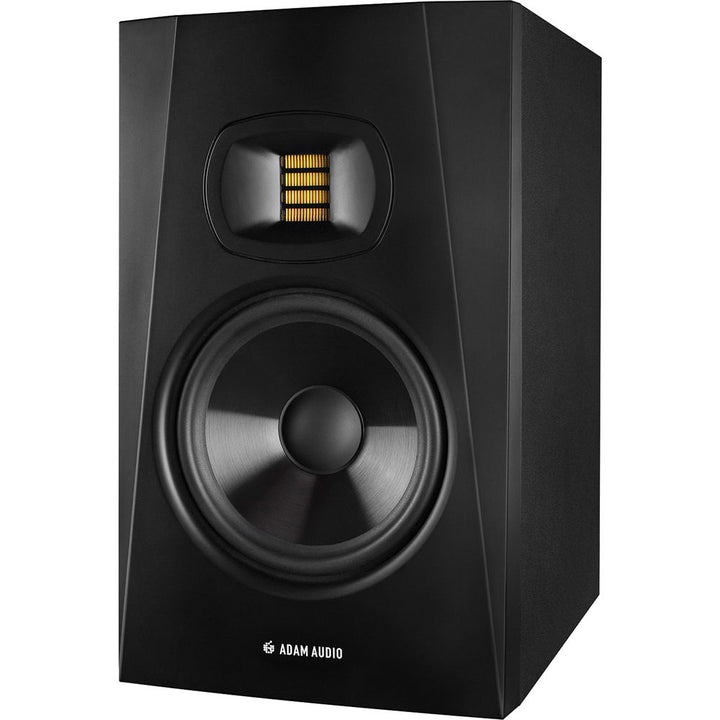

The ADAM Audio T7V is a 7" 2-way active nearfield monitor that extends the T Series with deeper bass response and higher SPL capability. The larger polypropylene woofer reaches down to 39 Hz, making it better suited for genres and mixing tasks where low-end translation matters. Like the T5V, it uses the U-ART accelerated ribbon tweeter with HPS waveguide for detailed, fatigue-free high-frequency reproduction.

Drivers & Amplification

• Woofer: 7" polypropylene cone
• Tweeter: 1.9" U-ART accelerated ribbon with HPS waveguide
• LF amplifier: 50W Class D
• HF amplifier: 20W Class D
• Max SPL: 110 dB per pair at 1m

Room Tuning

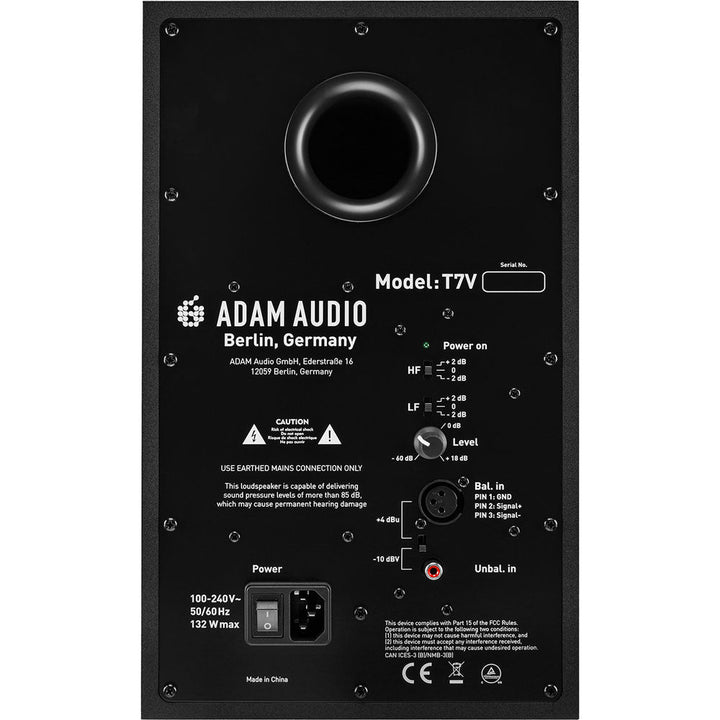

Rear-panel 3-position switches for high shelf EQ (above 5 kHz) and low shelf EQ (below 300 Hz) allow +/-2 dB adjustments to compensate for desk reflections, wall proximity, and room acoustics.

Connectivity

• Inputs: XLR balanced (+4 dBu) / RCA unbalanced (-10 dBV)
• Input selector: 2-way switch
• Power: 100-240V, 50/60 Hz (universal)

Specifications

• Frequency response: 39 Hz to 25 kHz (-6 dB)
• Crossover: 2.6 kHz (DSP-controlled)
• THD: 0.5% above 80 Hz
• Cabinet: Rear-ported bass reflex, beveled edges
• Dimensions: 347 x 210 x 293 mm (13.7 x 8.3 x 11.5")
• Weight: 7.1 kg (15.7 lb)
• Warranty: 5 years (2 + 3 with registration)

In the Box

• ADAM Audio T7V monitor (single)
• Power cord
• Quick Start Guide
