ADAM Audio S5V 12" 3-Way Active Main Reference Monitor
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description

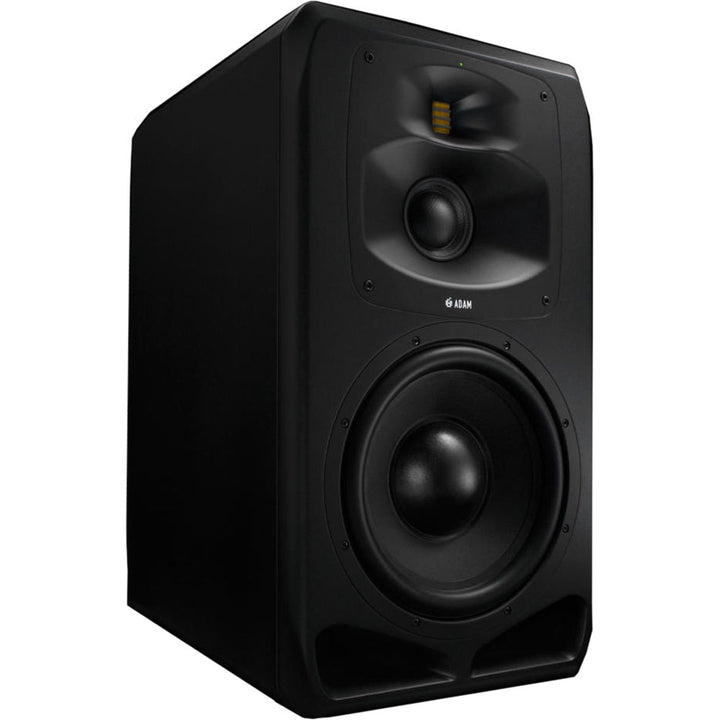

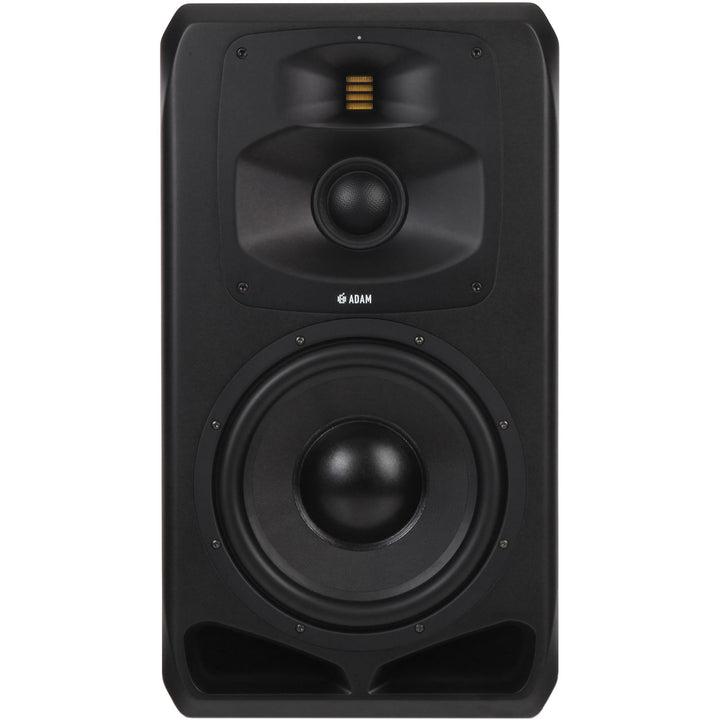

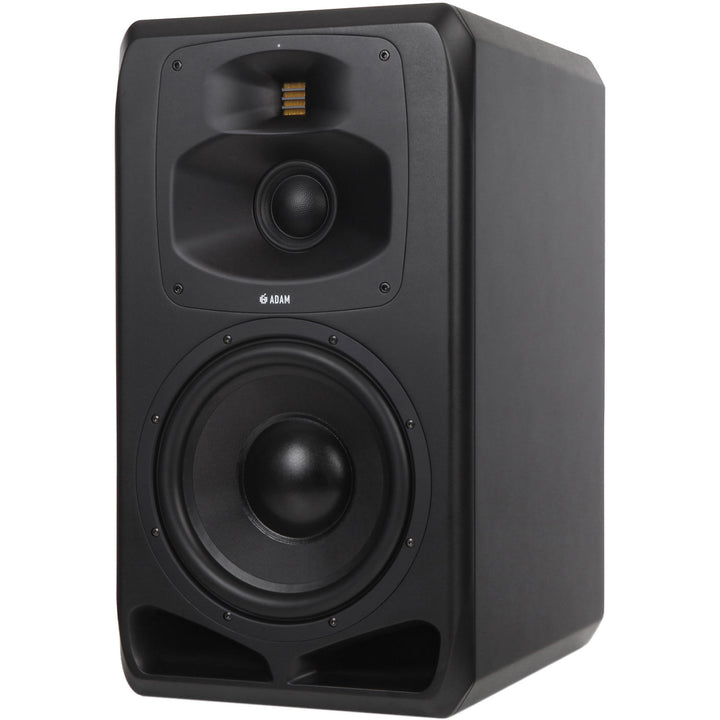

The ADAM Audio S5V is a 3-way vertical main monitor from the flagship S Series. A 12" HexaCone woofer with Extended Linear Excursion (ELE) and Symmetrical Magnet Assembly (SMA) technology, 4" DCH hybrid midrange with MPS waveguide, and handmade S-ART tweeter deliver 25 Hz to 50 kHz with up to 128 dB SPL per pair. Custom-developed in Berlin for the most demanding studio environments.
Drivers & Amplification
- Woofer: 12" HexaCone, 3" voice coil, ELE + SMA technology
- Midrange: 4" DCH dome/cone hybrid, carbon composite, with MPS waveguide
- Tweeter: S-ART folded ribbon (handmade in Berlin) with HPS waveguide
- LF amplifier: 700W Class D
- MF amplifier: 300W Class D
- HF amplifier: 100W Class A/B
- Total power: 1100W RMS
- Max SPL: 128 dB per pair at 1m
DSP Engine

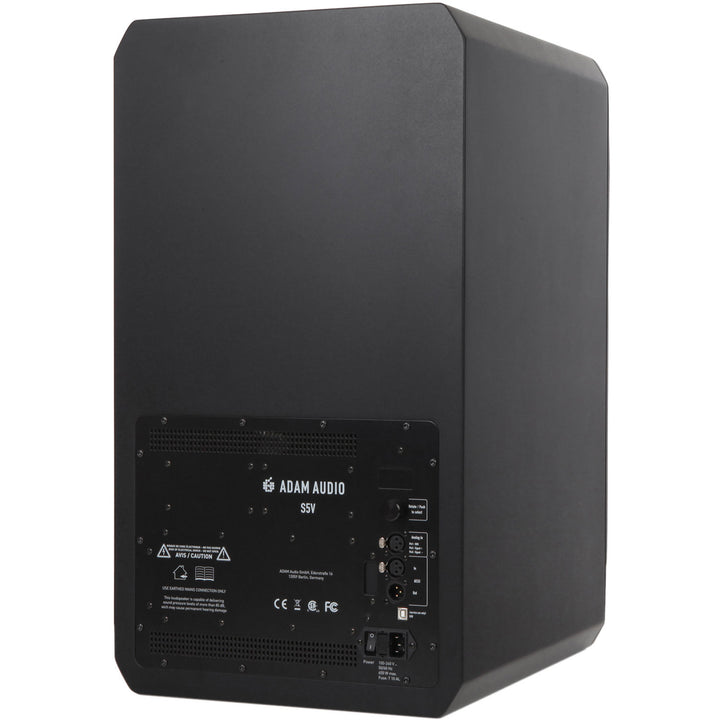

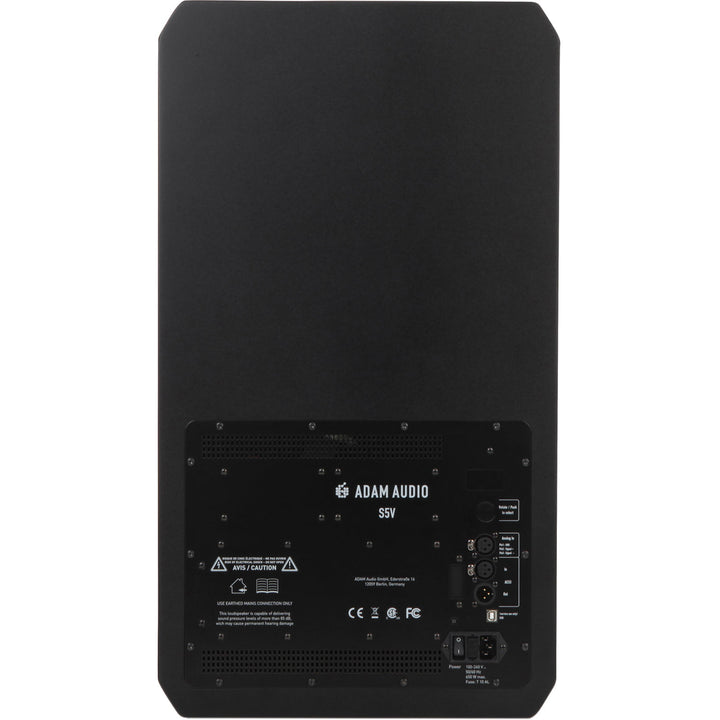

Rear-panel OLED display and rotary encoder control 6-band parametric EQ, high/low-pass filters, delay (up to 5 ms), and five storable presets. USB Type-A port for remote DSP access from a computer.
Connectivity
- Analog input: XLR balanced (48 kOhm, +24 dBu max)
- Digital input/output: AES3 via XLR
- USB: Type-A for remote DSP control
Specifications
- Frequency response: 25 Hz to 50 kHz (-20 dB)
- Crossovers: 250 Hz, 3 kHz
- THD: 0.3% above 100 Hz
- Max power consumption: 650W
- Dimensions: 698 x 390 x 520 mm (27.5 x 15.4 x 20.5")
- Weight: 52 kg (114.5 lb)
- Warranty: 5 years (2 + 3 with registration)
