Description

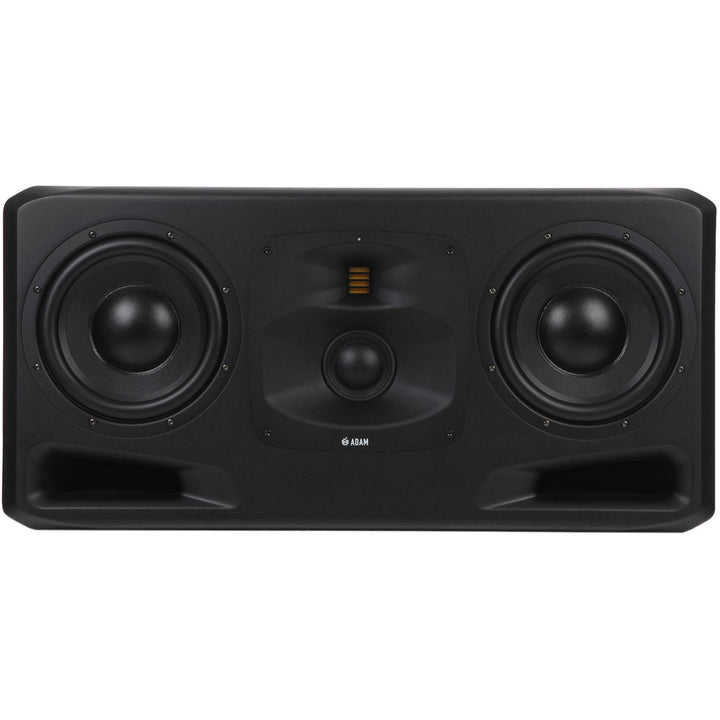

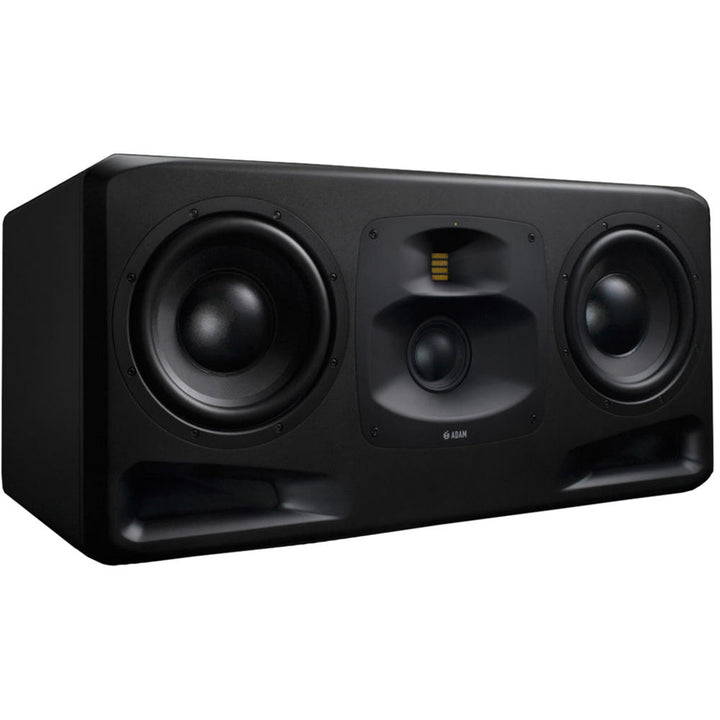

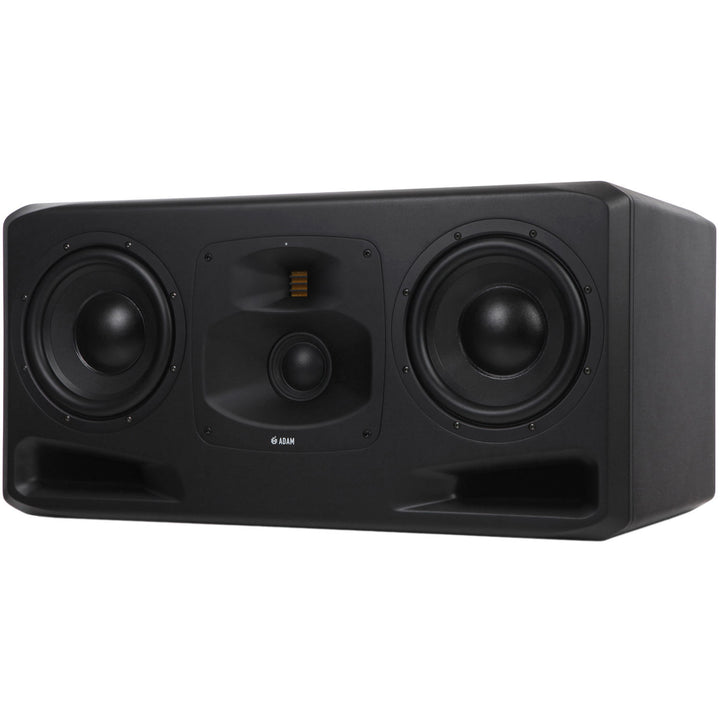

The ADAM Audio S5H is a 3-way horizontal main monitor from the flagship S Series, delivering 22 Hz to 50 kHz with up to 130 dB SPL per pair. Dual 10" HexaCone woofers, a 4" DCH hybrid midrange with its own MPS waveguide, and the handmade S-ART tweeter provide full-range, high-output monitoring for medium-to-large control rooms. Custom-developed in Berlin with no off-the-shelf components.
Drivers & Amplification
- Woofers: 2x 10" HexaCone with ELE and SMA technology
- Midrange: 4" DCH dome/cone hybrid with MPS waveguide
- Tweeter: S-ART folded ribbon (handmade in Berlin) with HPS waveguide
- LF amplifier: 2x 500W Class D
- MF amplifier: 300W Class D
- HF amplifier: 50W Class A/B
- Total power: 1800W RMS
- Max SPL: 130 dB per pair at 1m
DSP Engine
Rear-panel OLED display with rotary encoder for 6-band parametric EQ, high/low-pass filters, delay (up to 5 ms), and five storable presets. USB Type-A for remote control from a computer.

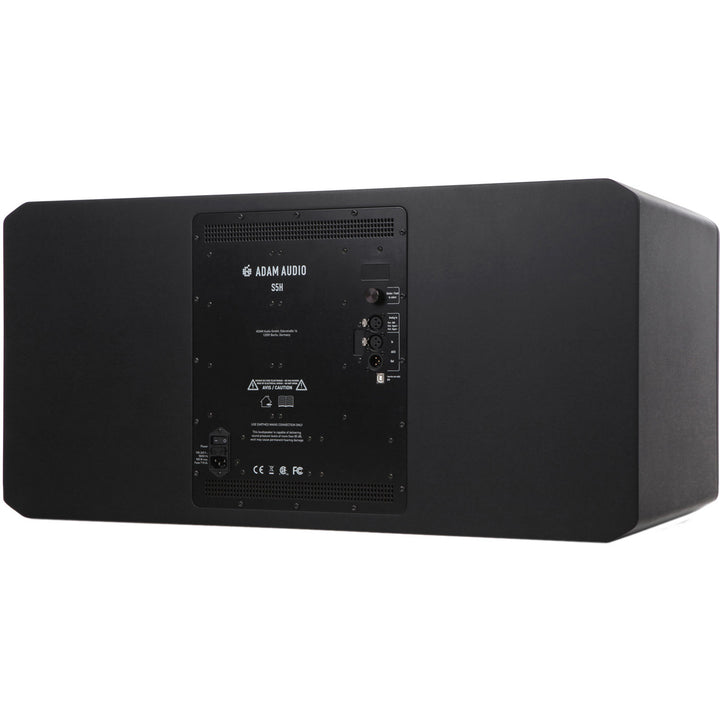

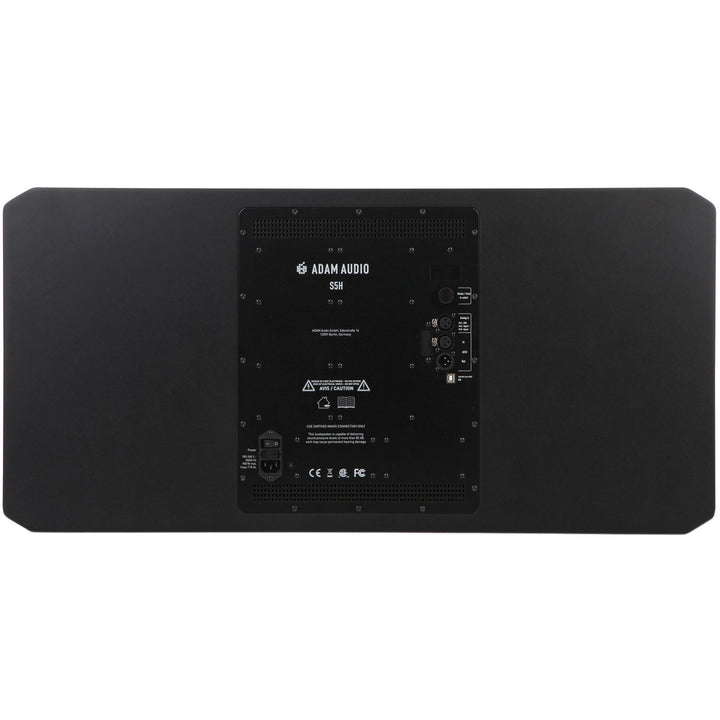

Connectivity
- Analog input: XLR balanced (48 kOhm, +24 dBu max)
- Digital input/output: AES3 via XLR
- USB: Type-A for remote DSP control
Specifications
- Frequency response: 22 Hz to 50 kHz (-20 dB)
- Crossovers: 250 Hz, 3 kHz
- THD: 0.3% above 100 Hz
- Max power consumption: 900W
- Dimensions: 430 x 885 x 500 mm (16.9 x 34.8 x 19.7")
- Weight: 72.6 kg (160 lb)
- Warranty: 5 years (2 + 3 with registration)
