What Is a MIDI Controller?
A MIDI controller sends performance data to your computer or hardware synth. It doesn't make sound on its own. You play the keys, hit the pads, twist the knobs — the controller sends that information as MIDI messages to software instruments or external gear that actually generates audio.
This separation of control and sound is why MIDI controllers are so flexible. One controller can play thousands of different instruments depending on what you load in your DAW. You're not locked into a single sound engine like you are with a traditional keyboard.
Most MIDI controllers connect via USB and draw power from your computer. Some include 5-pin MIDI outputs for connecting to hardware synths and drum machines. The controller shows up in your DAW as an input device. You select it, load a virtual instrument, and start playing.
Keys, Pads, and Knobs Explained
MIDI controllers combine three main control types. Understanding what each does helps you choose the right layout for your workflow.
Keyboard Keys

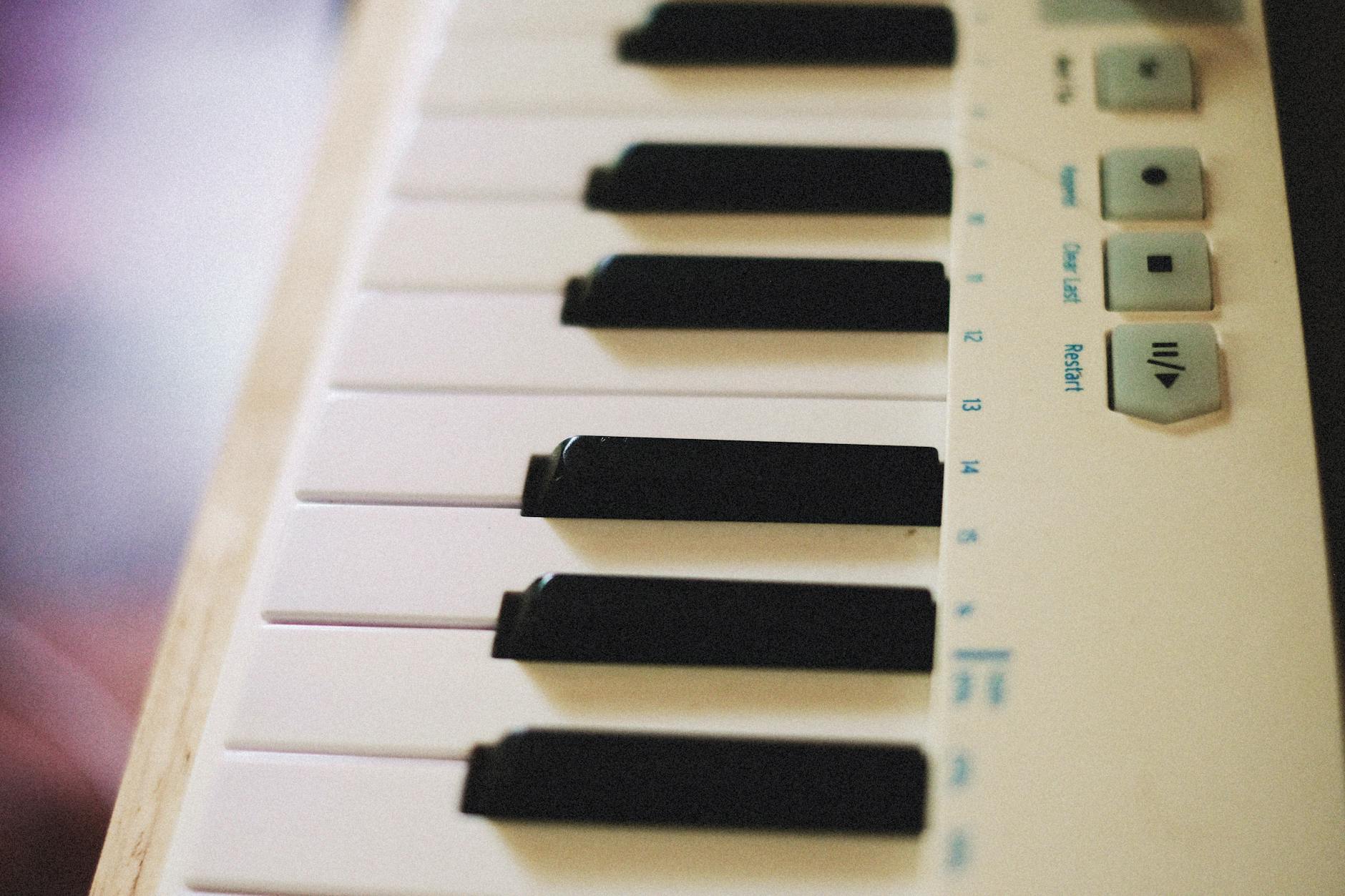

Keys are velocity-sensitive — the harder you press, the louder the note. Most controllers use mini keys (smaller than piano keys) or synth-action keys (full-size but lighter touch than weighted piano keys). Mini keys save space but feel cramped if you're used to playing acoustic piano. Synth-action keys give you more room to work and feel closer to a real instrument.
Key count matters. 25 keys cover two octaves — enough for melodies and chords but limiting for two-handed playing. 49 keys give you four octaves, which is comfortable for most production work. 61 and 88-key controllers exist but are less portable and cost more.
Octave shift buttons extend the range. Press up or down to access higher or lower notes without needing more physical keys.
Drum Pads
Pads are velocity-sensitive rubber squares arranged in a grid. You tap them with your fingers to trigger drum hits, samples, or clips. Most controllers include 8 or 16 pads.
Pads respond to how hard you hit them, so you can play dynamic drum parts by varying your finger pressure. They're easier to play rhythmically than keys because they're laid out in a grid that matches your DAW's clip launcher or drum rack.
RGB backlighting color-codes pads to match your software. In Ableton Live, for example, clips light up in the same color on your controller as they appear on screen.
Knobs and Faders
Knobs and faders control continuous parameters like volume, filter cutoff, reverb send, or any other adjustable value in your software. You assign them to whatever you need using MIDI learn or preset mappings.
Endless encoders spin forever without stopping at a max or min position. Standard knobs have a start and end point. Endless encoders are better for software parameters because they don't get out of sync if you change a value on screen.
Faders are vertical sliders. They're easier to see at a glance than knobs, which makes them useful for mixer volume control. Most controllers have four to eight knobs and zero to four faders.
Choosing Your First Controller
Start by deciding which control type you'll use most. If you're writing melodies and playing chords, prioritize key count and key feel. If you're making beats and launching clips, pads matter more. If you're mixing and tweaking synth parameters, look for controllers with enough knobs and faders to control multiple tracks at once.
DAW integration is the other major factor. Some controllers are designed to work seamlessly with specific software. Novation Launchkey controllers map instantly to Ableton Live with dedicated clip launch, scene navigation, and device control. Arturia controllers integrate with their own software bundles. M-Audio Keystation models are generic USB-MIDI devices that work with everything but require manual mapping for DAW control functions.
Deep integration means the controller's buttons and pads automatically control clip launching, transport controls, mixer faders, and device parameters without manual mapping. Generic controllers require you to assign every knob and button yourself using MIDI learn.
Size and portability also matter. A 25-key controller fits in a backpack and works on a crowded desk. A 49-key controller needs more space but gives you a more playable keyboard. Consider where you'll use it.
Common Features to Look For
Most modern MIDI controllers include these standard features:
- Velocity sensitivity: Keys and pads respond to how hard you play them. This is essential for expressive performance.
- Aftertouch: Pressing harder on a key after it's already triggered sends additional control data. Useful for adding vibrato or filter sweeps. Not all budget controllers include this.
- Transport controls: Play, stop, record buttons that control your DAW without touching the mouse.
- Pitch and mod wheels or strips: Pitch bend and modulation controls for adding expression to synth lines.
- Sustain pedal input: A 1/4-inch jack for connecting a footswitch that holds notes like a piano sustain pedal.
- OLED display: Shows preset names, parameter values, and menu options. Makes navigation faster.
Advanced controllers add arpeggiators, chord modes, and scale modes. These features generate musical patterns and keep you in key without needing music theory knowledge. Useful for sketching ideas quickly.
Setting Up Your Controller
Plug the controller into your computer via USB. Most are class-compliant, which means your operating system recognizes them immediately without installing drivers. Open your DAW and enable the controller in the MIDI preferences menu.
If the controller has deep DAW integration, you may need to select it as a control surface rather than just a MIDI input. This activates the automatic mappings. Check the manual for your specific DAW and controller combination.
Load a virtual instrument on a track and play. If you hear sound, the basic connection is working. If the transport buttons and knobs don't control anything yet, you'll need to either activate the control surface mode or manually map them using MIDI learn.
MIDI learn lets you assign any knob, fader, or button to any software parameter. Click the parameter you want to control, activate MIDI learn mode, then move the knob or press the button. The software links them. This works in every DAW.
Our Recommendations
The MPK Mini 3 combines 25 mini keys with 8 RGB pads in a compact layout. It's an excellent starting point if you want both melodic and rhythmic control without taking up much desk space. The pads are velocity-sensitive and backlit, and the onboard arpeggiator helps you create musical patterns quickly. At $139, it's one of the most affordable ways to get both keys and pads in a single controller.
The Keystation 49 MK3 is a straightforward 49-key controller focused on keyboard performance. It gives you a full four-octave range with synth-action keys, pitch bend, modulation, octave buttons, and transport controls. There are no pads or knobs — this is designed for playing melodies and chords. It's a class-compliant USB-MIDI device that works with any DAW, though you'll need to manually map transport and directional controls if you want them to control your software.
The Launchkey 25 MK4 is built for Ableton Live users. It includes 16 RGB pads with polyphonic aftertouch, 8 knobs, transport controls, and an OLED display. The integration with Live is instant — pads launch clips and scenes, knobs control devices and mixer parameters, and the transport section controls playback without any manual mapping. Custom scripts also support Logic Pro, FL Studio, Cubase, Reaper, and Reason. The built-in arpeggiator, three chord modes, scale mode, and chord detector displayed on the OLED screen make it easy to sketch musical ideas even if you're not a trained keyboard player.
The MiniLab 3 packs 25 keys, 8 RGB pads, 8 encoders, 4 faders, and pitch/mod touch strips into a portable package. It includes deep integration with Arturia's software and works as a generic MIDI controller with any DAW. The OLED display and clickable encoder make browsing presets fast. At just over three pounds, it's one of the most feature-dense compact controllers available. The 5-pin MIDI output lets you control hardware synths without a computer, making it versatile for both computer-based and hardware setups.
Explore Mentioned Brands
FAQ
Do I need a MIDI controller if I already have a keyboard or piano?
If your keyboard has MIDI output, you can use it as a controller by connecting it to your computer via USB or a MIDI interface. A dedicated MIDI controller adds pads, knobs, and DAW integration that most keyboards don't have. It's not required, but it speeds up your workflow.
Can I use a MIDI controller without a computer?
Only if it has a 5-pin MIDI output and you're connecting it to hardware synths or sound modules. Most controllers are designed to work with software and need a computer to generate sound. Some newer controllers include USB host ports that let them connect directly to iOS devices or standalone samplers.
What's the difference between a MIDI controller and a synthesizer?
A MIDI controller sends performance data but doesn't generate sound. A synthesizer has its own sound engine and speakers or audio outputs. Some synths also function as MIDI controllers, sending MIDI data while also producing their own sounds.
How many keys do I need?
25 keys work for melodies and simple chords in a portable setup. 49 keys give you enough range for two-handed playing and more complex arrangements. 61 and 88-key controllers are closer to full piano range but less practical for most production setups.
