Description

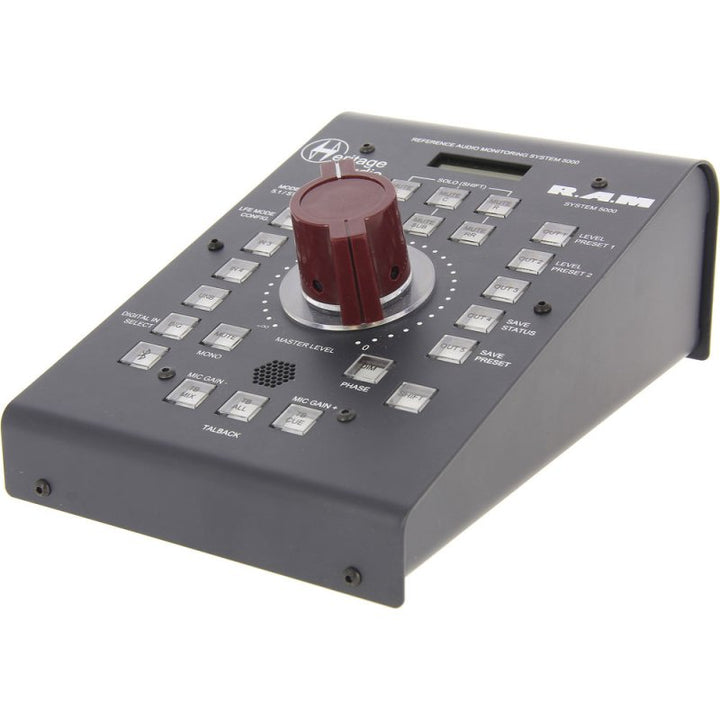

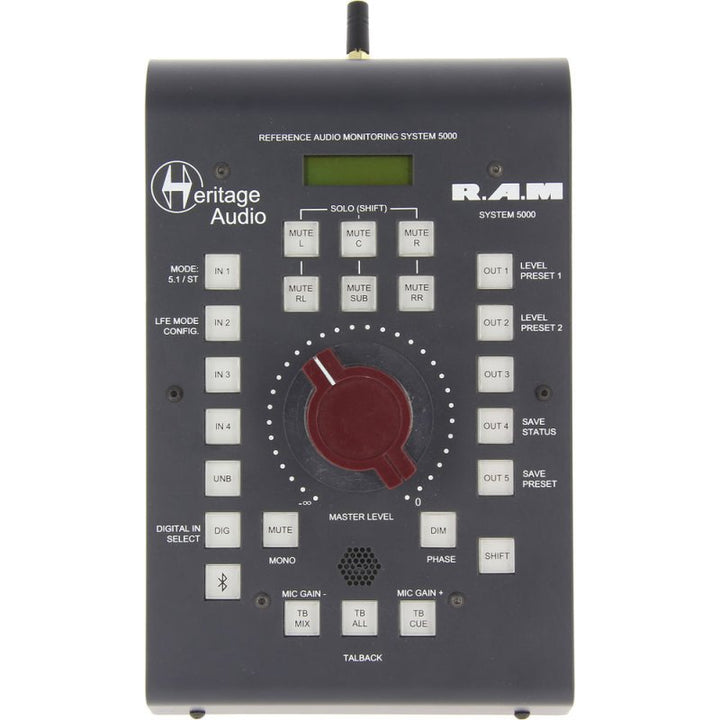

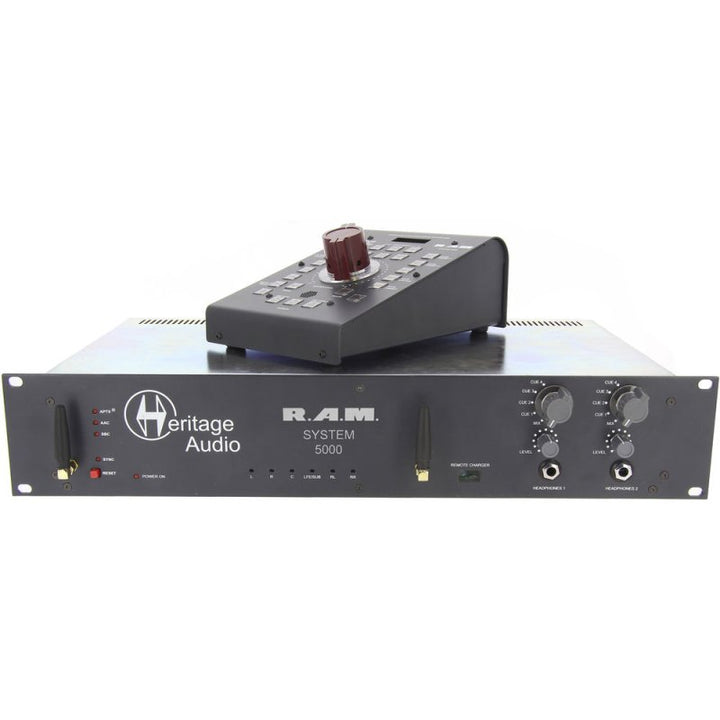

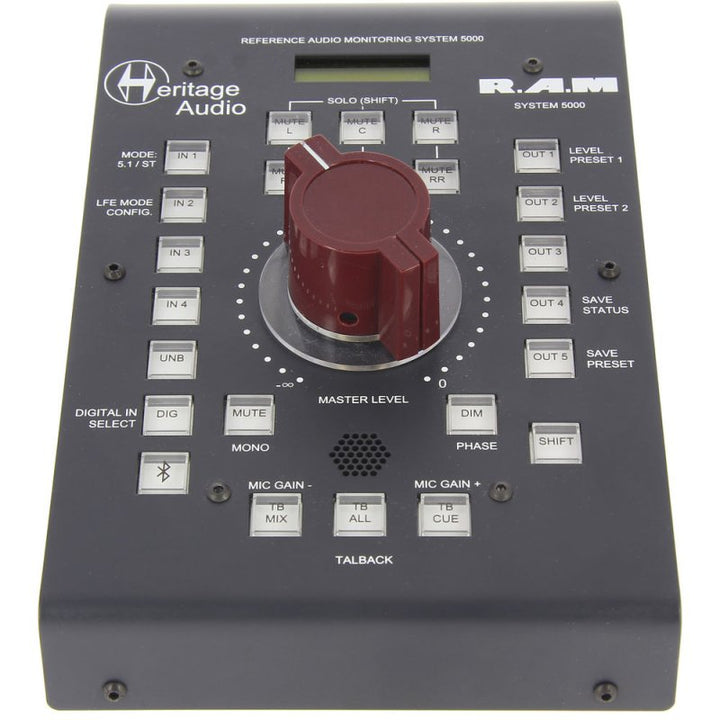

The Heritage Audio RAM System 5000 is a split-format 5.1 and stereo monitor controller with 64-step gold-plated relay attenuation, four analog input pairs, five speaker outputs, four cue paths, AES/EBU, S/PDIF, TOSLINK, Bluetooth, talkback, and two diamond-buffer headphone amps. The matching supply is the PSU-02.
Surround and Stereo

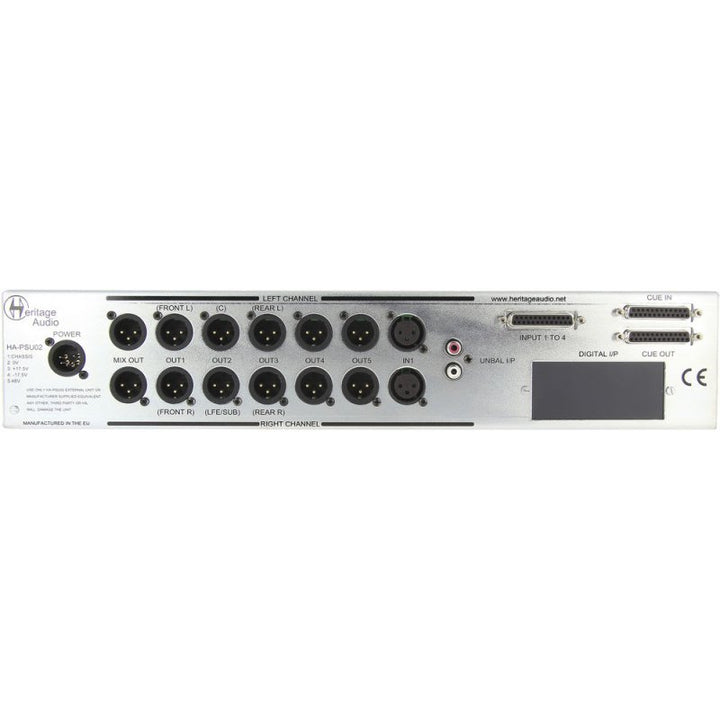

Outputs 1-3 can run as a 5.1 system or as separate stereo pairs; a dedicated sub/LFE assignment is available. Analog I/O is +4 dBu on gold-plated XLRs, with DB25 for the extra analog inputs and the four stereo cue I/Os. A Wolfson DAC handles the digital sources. Two user level presets store monitoring volumes.
Specifications
- Attenuator: 64-step relay ladder, 1 dB
- Analog in: 4 stereo pairs, +4 dBu
- Analog out: 5 stereo (5.1 capable), pre-fader mix, sub
- Cue: 4 independent stereo I/O on DB25
- Digital in: AES/EBU, S/PDIF, TOSLINK, up to 24-bit / 96 kHz
- Bluetooth: AAC, aptX, SBC

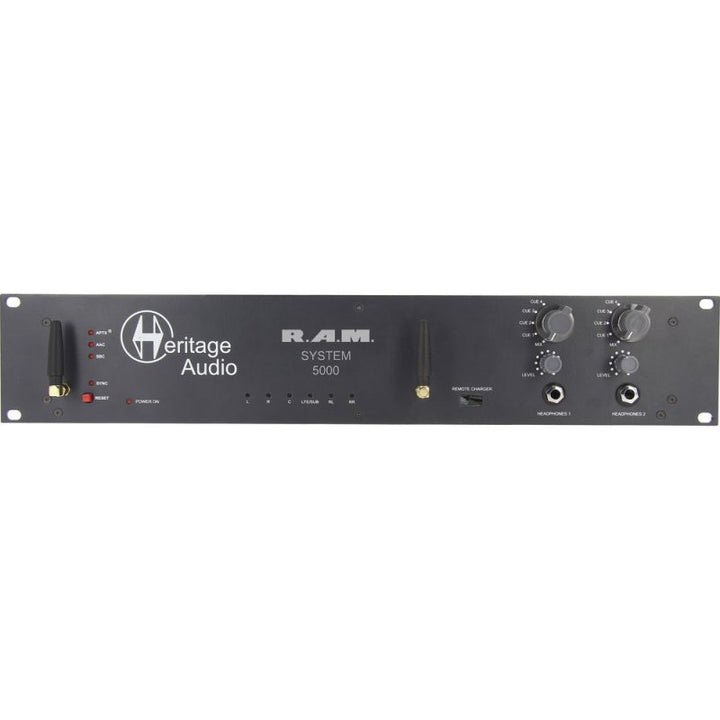

- Headphones: 2 diamond-buffer amps, assignable to cue or mix
- Power supply: External PSU-02

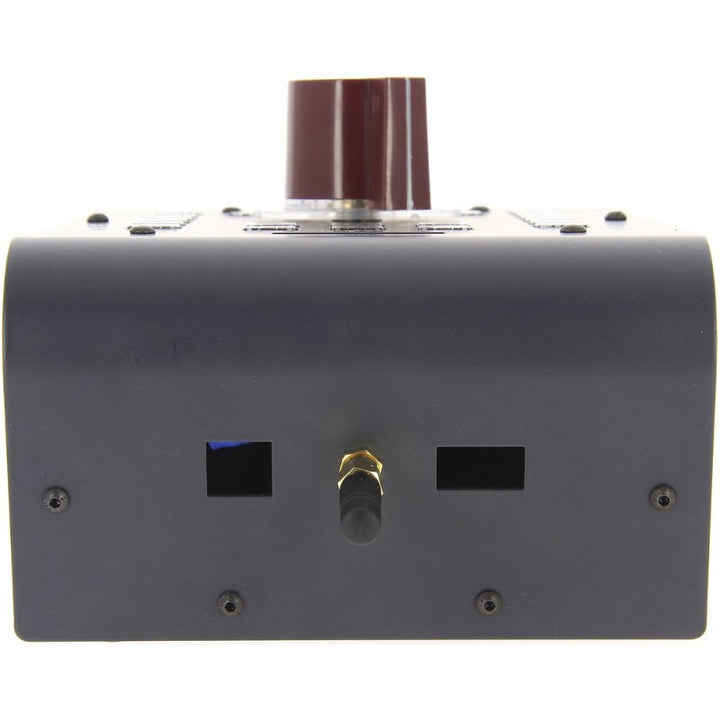

- Antenna: Angled RAM antenna
In the Box
- Heritage Audio RAM System 5000
- PSU-02 external power supply
- Angled Bluetooth antenna
