Fluid Audio Image 1

Image 1 is a dedicated nearfield/midfield workhorse. Using the latest DSP and Class-D amplification, Fluid Professional has pushed the limits to create stunning results. The Image 1 delivers accurate imaging, extremely flat frequency response, and incredible bass extension with very low distortion.

With support for Sonarworks SoundID Reference calibration import, the room calibration software will be integrated directly into Image 1 studio monitors. Giving users the ability to create their own calibration profile for their monitor setups to remove unwanted coloration and experience the most accurate studio reference sound for any studio or home environment.

The Image 1 is also a 2 in 1 monitor: a full range mixing and mastering system that can switch into CubeMix mode directly via the DCT Software. CubeMix mode enables engineers to fine-tune low end and midrange levels for consistent playback across “bass-challenged” devices. It also helps refine vocal balance, kick definition, and overall mix translation.

It's future-ready network port expands the Image 1’s incredible functionality and provides the ability to upload and run exported room correction files natively at the monitor level, as well switching between profiles (Image 1 supports loading of 4 different SoundID Reference profiles) and cubemix mode and more.

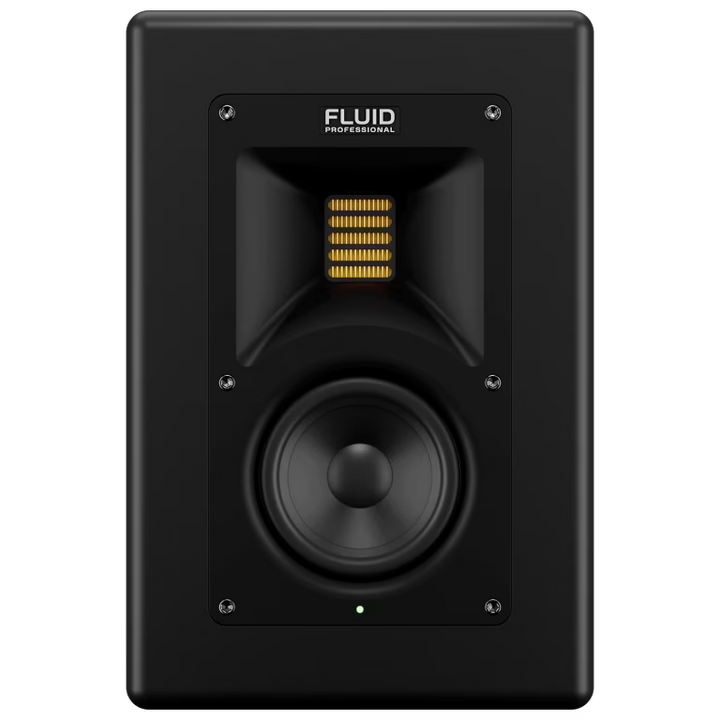

The newly developed AMT tweeter delivers precise, detailed response, expansive headroom, and low distortion, while the 5″ aluminum cone mid-range driver utilizes a shorting ring within its motor structure to substantially reduce harmonic distortion. Focusing the magnetic flux and concentrating it within the voice coil gap reduces modulation movement of the voice coil which makes the variation of system inductances more linear as input current varies. The end result is accuracy so clean; mixing takes on a whole new flow.

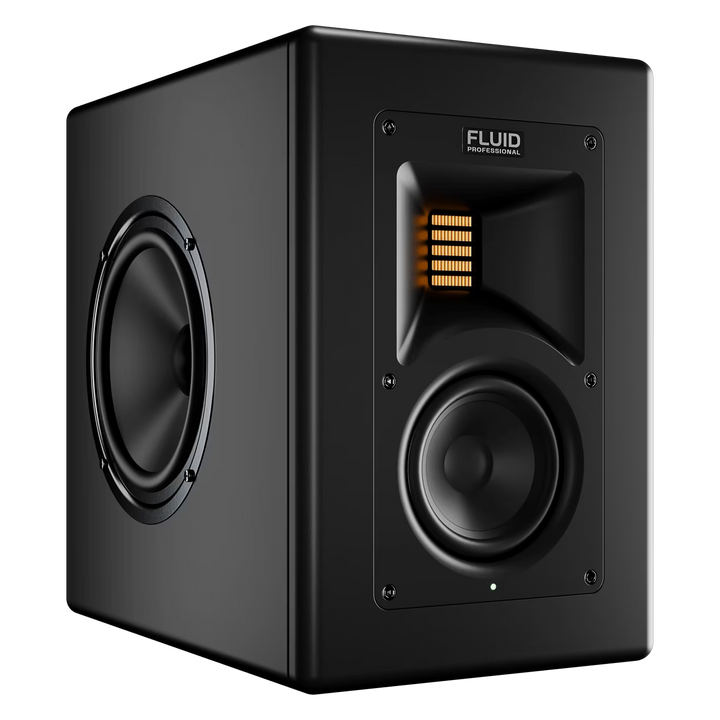

The opposed dual 6.5" ultra long throw woofers are coupled through Fluid’s Vi-bracer (TM) system, which applies controlled outward pressure to cancel reaction forces at the source. This design enhances cabinet stability and delivers an extended, balanced low-frequency response (+/- 3dB 40Hz–27kHz; +/- 1.5dB 80Hz–22kHz). Each woofer is powered by a dedicated 180W Class-D amplifier for precise, distortion-free control.

Driving the entire system is the newly developed Class-D Quad amplifier. Spending the most development time on this important element, the Image 1 amp has extremely low self-noise, very low distortion, improved THD+N performance, improved IMD performance, and lower output impedance. The Image 1’s sealed enclosure design provides a natural, 6db/oct roll off for a more controlled low frequency response. This translates into less likelihood of unwanted interaction with the room, which means these monitors are less sensitive to positioning.

Mixing or mastering on the Image 1 will deliver professional results that are more accurate, and more effortlessly achieved than ever before. Making it one of the best speaker for music production.

SoundID Reference integration

Import room correction files directly to Image 1, store up to 4 profiles, and switch at the monitor. Achieve consistent reference sound in any space.

• Native profile storage (up to 4)
• Network profile upload workflow
• Per-room or per-position presets

2 in 1: CubeMix mode

Switch to a mid-focused reference directly in the DCT software. Reveal bass-limited playback behavior and fine-tune vocals, kick, and midrange with confidence.

• Instant A/B via DCT software
• Faster low-end decisions
• Better small-speaker translation

Vi-bracer (TM) Technology - precision through opposing force

Dual low-frequency motors are tied together by a rigid internal pole that applies outward pressure. This controlled compression cancels reaction forces before they reach the cabinet. Vibrations never develop, resonance is suppressed, and bass stays deep, fast, and free of coloration.

ACCURATE AND TRANSPARENT

Using the Fluid Audio DCT (DSP Configuration Tool) you can push SoundID Reference calibration profiles to the built-in embedded DSP platform onboard the Image 1.

This will compensate for room imperfections that acoustically treated and un-treated rooms sometimes have. Using SoundID Reference (v5.6 and newer) and a measuring microphone, you can measure your room, create calibration curves specifically for your environment and upload them directly onto the Image 1 with the DCT tool. The Image 1 supports up to 4 different profiles. As an example: Flat target, Dolby Atmos Music, Custom Target as well as Translation Check. All of these can be loaded as different profiles and switched between using the DCT tool running on Windows or OSX. (Network cable has to be connected to both units). You can also enable and disable cubemix mode using the DCT tool (which will not affected by the calibration profiles).

COMPACT ALL IN ONE

Fluid Audio has ingeniously incorporated precision accuracy, controlled directivity. Impressively, this system maintains an extended bass response down to -3dB @40Hz (in chamber), ensuring a comprehensive audio experience. The Image 1 stands as a testament to uncompromising audio quality, catering to the discerning preferences of recording engineers and audio enthusiasts alike.

In essence, Fluid Audio’s Image 1 offers a complete audio solution, blending pinpoint accuracy, directional control, and a diverse range of input options, all within a space-saving design. Its exceptional bass performance makes it a preferred choice for those seeking exceptional sound quality in a compact format.

DSP AND CONVERTERS

Fluid Audio Image 1 DSP board feature great performance in every aspect. Flagship discrete AD/DA converters. Together with well optimized signal circuitry improves the S/N ratio to 115 dBa.

The in-house developed digital signal processing system introduces a range of features that greatly enhance the studio experience. In addition to the analog XLR input, there are an AES digital in and thru enabling the possibility of daisy chaining two Image 1 speakers. Moreover, the digital connection bypasses interface conversions, effectively reducing unwanted artifacts.

Ready for Immersive and Atmos

The Image 1 is a natural fit for immersive and Dolby Atmos systems thanks to its compact cabinet, mounting flexibility, and full-range clarity. Perfect for height and surround channels where precision and headroom are critical.

• Compact size that packs a punch
• Integrated mounting holes for flexible placement
• Consistent voicing across multi-speaker layouts

Additional Information

• Max SPL of 108dB (1 meter)

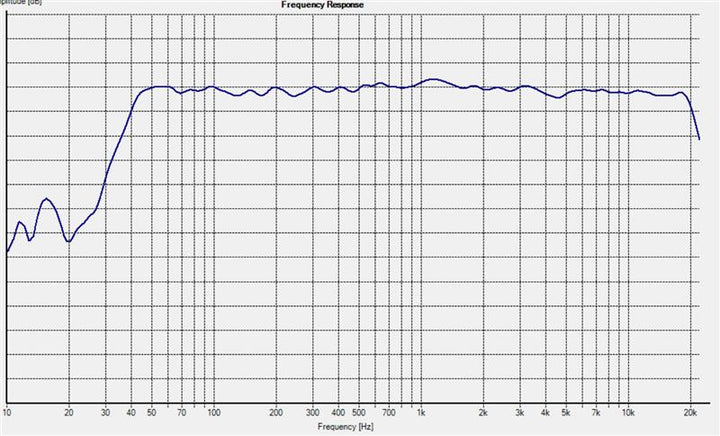

• Frequency Response: +/-4.6dB 40Hz – 20kHz; +/-2.0dB 80Hz – 20kHz
• Bass Response: -3dB @45Hz, Q=0. 707 Slope = 24dB/octave
• Bass / Mid Crossover: 190Hz
• Mid / Treble Crossover: 3000 Hz
• 2 x 6.5" Bass + 1 x 4" Midrange + ⌀ 1.1" x 1.7" AMT Tweeter
• 2 x ⌀ 165 mm Bass + ⌀ 101 mm Midrange + ⌀ 28 x 43 mm AMT Tweeter
• AMT Tweeter unfolded size 4.5" x 1.1" / 114 x 28 mm (total radiation area)
• 2 * 150 W Bass (Class D)
• 100 W Midrange (Class D)
• 75 W Treble (Class D)
• AD Converter : 24 bit
• Internal sample rate : 192kHz
• Analog XLR, XLR Digital AES / EBU, XLR Digital AES / EBU Thru connections

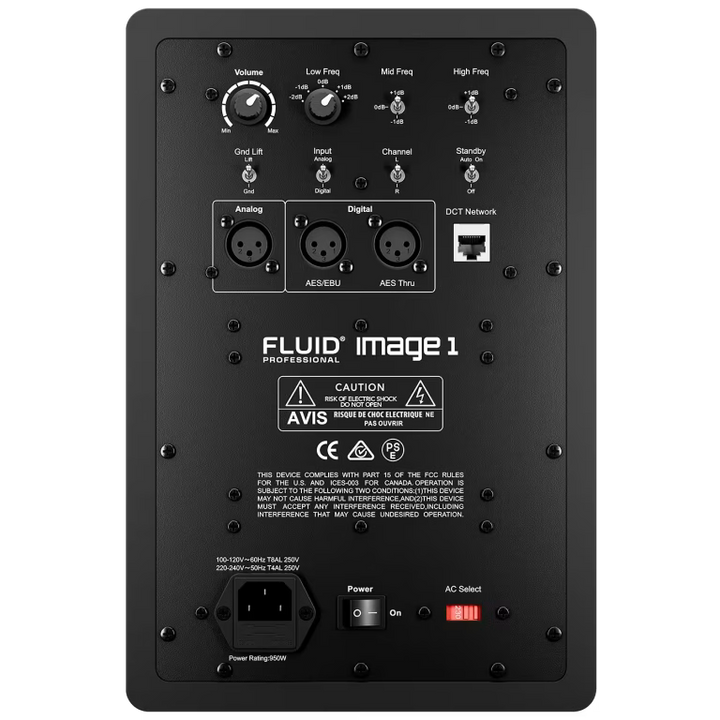

Rear Panel Adjustment & Other Information

• High Freq: -1, 0, +1
• Mid Freq: -1, 0, +1
• Low Freq: -2, -1, 0, +1, +2
• Digital / Analog selector
• Channel sellect digital input L/R
• Auto standby On/Off
• GND lift
• Network RJ45 connector for DCT
