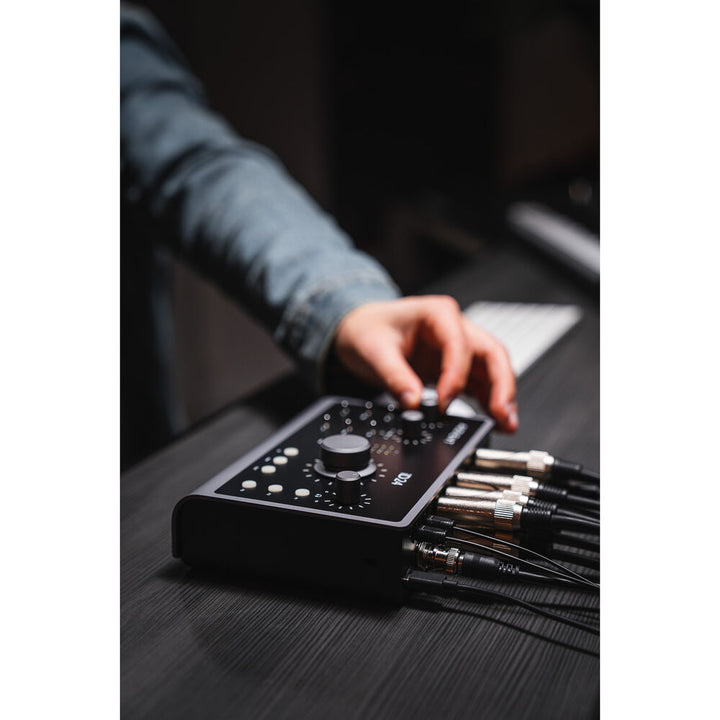

Audient iD24 10-in/14-out USB-C Audio Interface

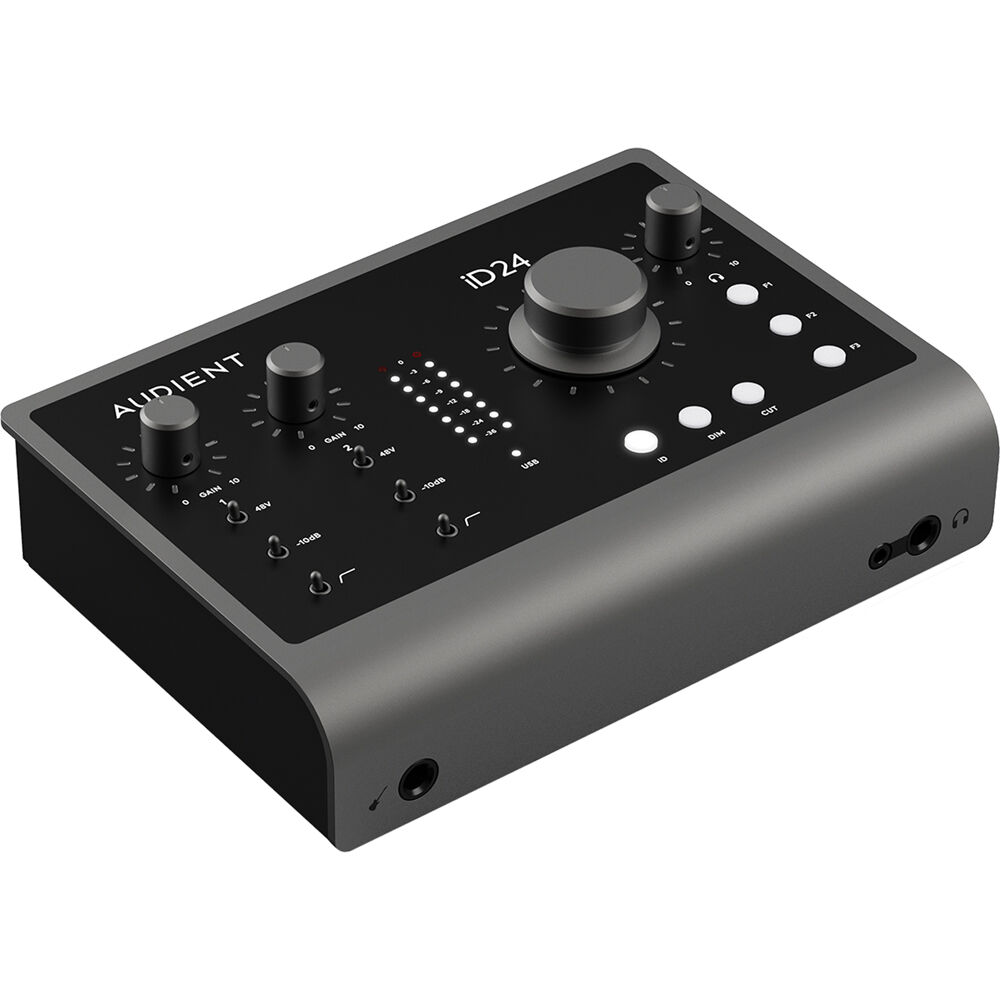

The Audient iD24 is a 10-in/14-out USB-C audio interface with two Class-A Audient console microphone preamps, a JFET instrument input, two balanced insert points, ADAT optical I/O, main and alternate speaker switching, word clock output, and a DSP mixer. Three user-defined function keys, dedicated dim and cut controls, and ScrollControl provide hands-on studio workflow.

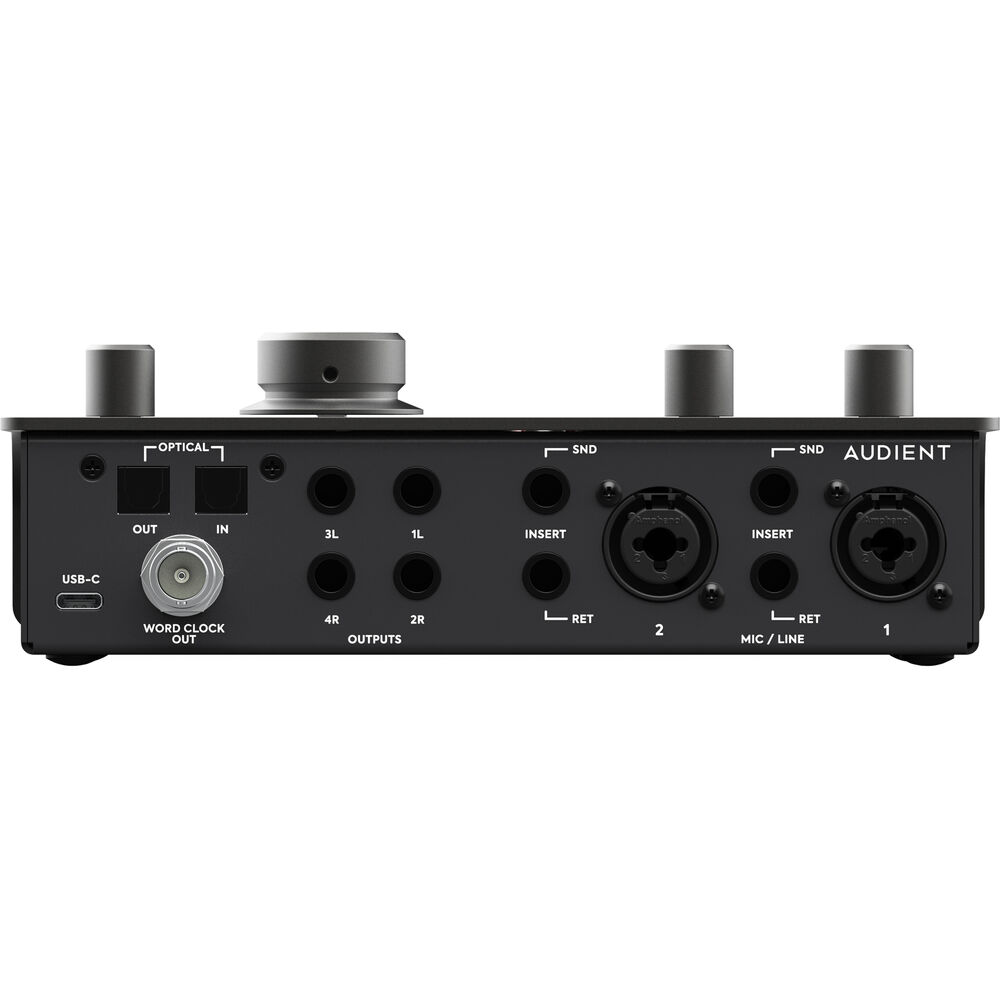

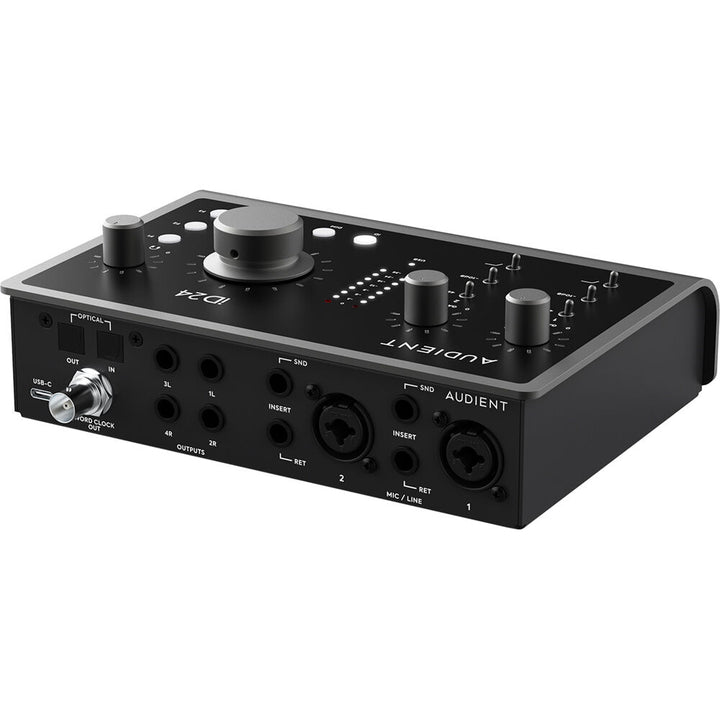

Inputs and Outputs

• Mic/Line inputs: 2 (XLR/TRS combo) with Class-A preamps, +48V, pad, and HPF

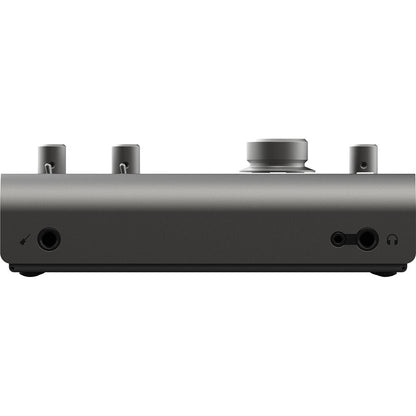

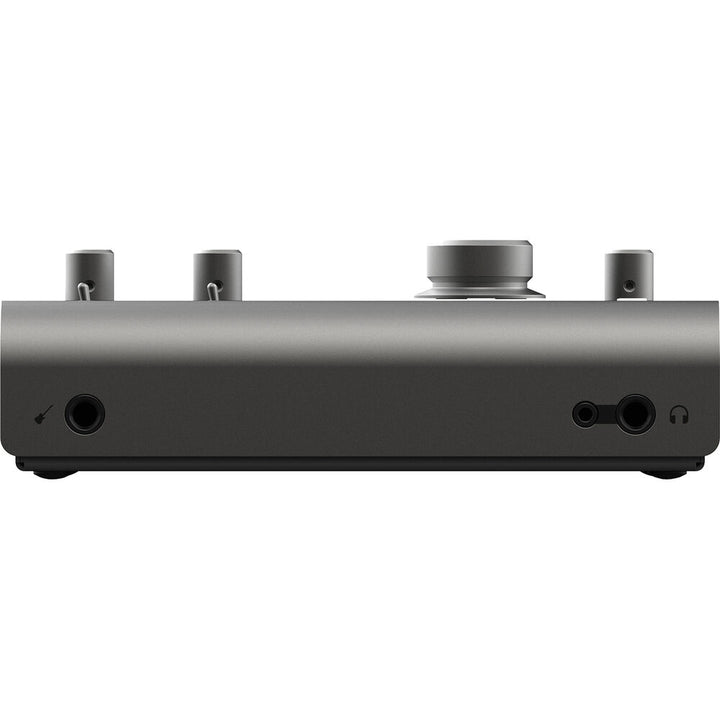

• Instrument input: 1 front-panel discrete JFET DI
• Inserts: 2 balanced send/return pairs (1/4" TRS)
• Digital I/O: 1x ADAT/S/PDIF optical input, 1x ADAT/S/PDIF optical output
• Line outputs: 4 balanced 1/4" TRS
• Headphone outputs: 2 (1x 1/4" + 1x 3.5 mm)
• Word clock output: BNC
• USB: USB-C (USB 3.0)

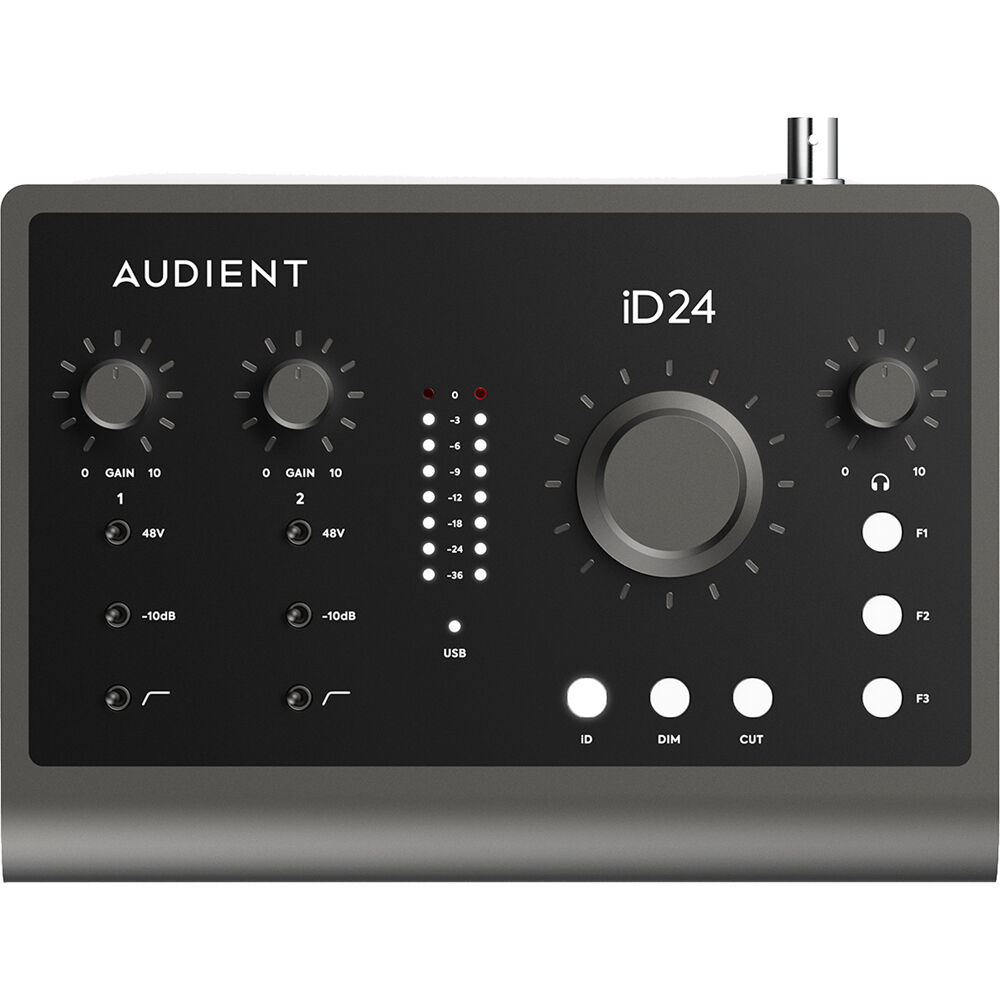

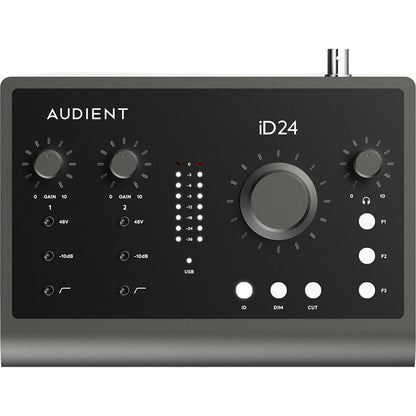

Monitor Control

• Main and Alt speaker switching: Toggle between two sets of monitors
• Dim and Cut: Dedicated hardware buttons
• Function keys: 3 user-defined buttons (assignable in software)

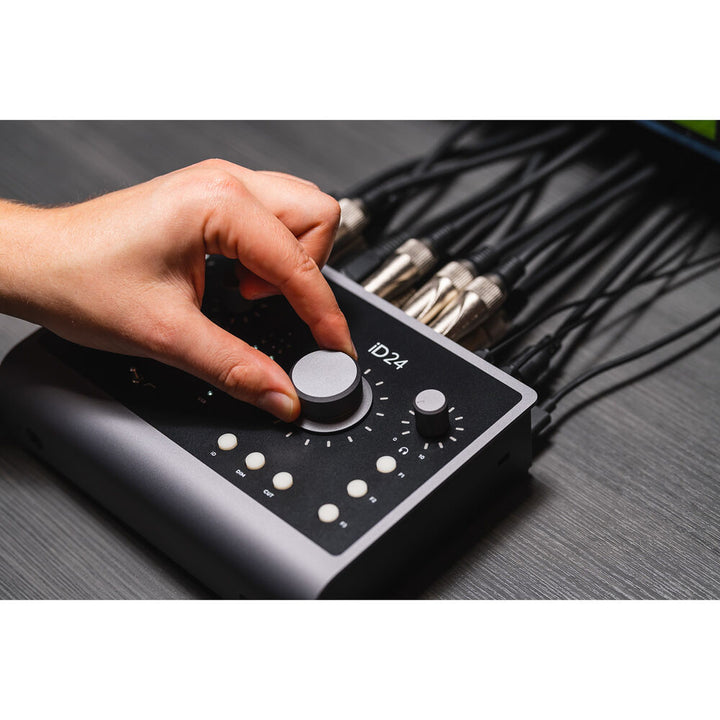

• ScrollControl: iD encoder for DAW integration
• DSP mixer: Ultra-low latency software mixer with loopback

Specifications

• Sample rate: Up to 96 kHz
• Bit depth: 24-bit
• DAC dynamic range: 126 dB (32-bit DAC technology)
• Mic gain: 58 dB
• Construction: All-metal desktop enclosure
• Dimensions: 198 x 134 x 66 mm (7.8 x 5.3 x 2.6")
• Weight: 1.15 kg (2.54 lb)
• Power: USB bus powered

In the Box

• Audient iD24
• USB-C cable
• Quick Start Guide
