The Warm Audio WA76-D2 is a dual-channel discrete FET compressor that faithfully recreates two channels of the "Revision D" 1176 studio compressor. Using the same CineMag USA O-12 input and 5002 output transformers, ceramic and electrolytic capacitors, and revised low-noise preamp stage as the single-channel WA76-D, the D2 adds three stereo operating modes for flexible dual-channel compression.
Stereo Operating Modes
- Stereo Linked: Both channels compress together for stereo bus processing
- Primary:Secondary: Channel A controls Channel B for lead/follow compression
- Dual-Mono: Each channel operates independently
Modern Recording Features
Each channel includes a Dry/Wet mix knob for parallel compression, selectable input impedance (600 Ohm or 10k Ohm) to match vintage or modern gear, and a variable sidechain high-pass filter (30 to 300 Hz, 12 dB/octave) to prevent bass from driving excessive gain reduction. Both active bypass (line amplifier mode for transformer coloration) and true hard bypass are available per channel.
Specifications
- Type: Dual-channel discrete FET compressor (1176 "Rev D" style)
- Topology: 100% discrete analog, Class A output amplifier
- Transformers: CineMag USA O-12 (input), 5002 (output)
- Components: Ceramic and electrolytic capacitors, metal film resistors, revised preamp stage
- Ratios: 4:1, 8:1, 12:1, 20:1 (+ All-Buttons-In)
- Attack: 20 microseconds - 800 microseconds
- Release: 50 ms - 1.1 s
- Total gain: 53 dB
- Frequency response: 20 Hz - 20 kHz (+/- 1 dB)
- SNR: 86 dB (A-weighted)
- THD: -64 dB (at -8 dBu)
- Input impedance: Selectable 600 Ohm / 10k Ohm
- Dry/Wet mix: 0-100%
- Sidechain HPF: Variable 30 - 300 Hz (12 dB/octave)
- Bypass: Active + True bypass
- VU meter: GR, +8 dB, +4 dB, Off

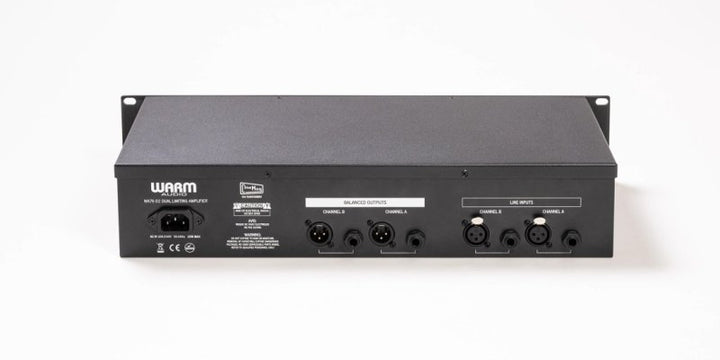

- Inputs: 2x XLR, 2x 1/4" TRS (balanced)
- Outputs: 2x XLR, 2x 1/4" TRS (balanced)
- Power: 100-230V universal, IEC
- Rack size: 2U, 19"
- Dimensions: 483 x 89 x 159 mm (19 x 3.5 x 6.3")
- Weight: 4.8 kg (10.6 lbs)
In the Box
- Warm Audio WA76-D2
- IEC power cable
