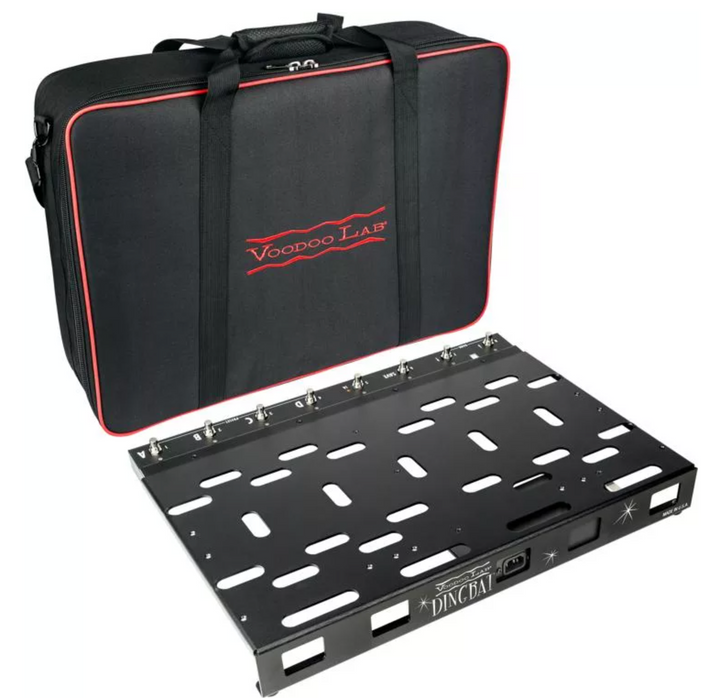

Voodoo Lab Dingbat PX Pedalboard with PX-8 Plus and Pedal Power 3 Plus

Complete package combining the Dingbat PX pedalboard (with factory-mounted PX-8 Plus true-bypass switcher) and a Pedal Power 3 Plus twelve-output isolated supply. The PX-8 Plus provides eight true-bypass loops, 36 presets, MIDI control, Quiet Switching, an output buffer, and an insert between loops 6 and 7 at the front of the board. Pedal Power 3 Plus adds hybrid DC transformer power with X-LINK expansion on 100-240VAC underneath.

This is the all-in-one Dingbat route when you want programmable loop switching and a full twelve-output isolated supply without assembling board, looper, brackets, and PSU separately. DC cables and a tour-grade gig bag are included.

In the Box

• Dingbat PX pedalboard with PX-8 Plus
• Pedal Power 3 Plus (factory-installed) with DC cables
• Tour-grade padded gig bag
• Mounting hardware
• Adhesive-backed hook-and-loop tape
• UV-resistant cable ties
• 4-way adhesive tie mounts

Specifications

• Overall board dimensions: 22 x 16 x 2.75" (559 x 406 x 70 mm)
• Pedal surface: 22 x 13.25" (559 x 337 mm)
• Board weight: 6.45 lb (2.93 kg) before power supply
• Switcher: PX-8 Plus (8 loops, 36 presets, MIDI)
• Power supply: Pedal Power 3 Plus (12x 500 mA isolated, X-LINK, 100-240VAC)
