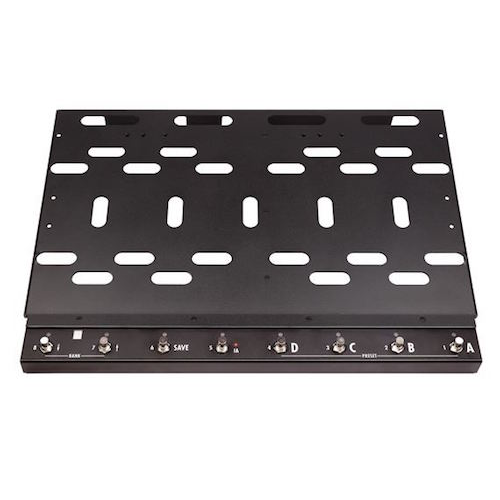

Voodoo Lab DBMPXS Dingbat PX Pedalboard with PX-8 PLUS

The Voodoo Lab Dingbat PX combines a medium-size 6061-T6 aluminum pedalboard with a factory-mounted PX-8 Plus true-bypass programmable pedal switcher along the front edge. You get eight true-bypass loops, 36 user presets, MIDI In/Out, Quiet Switching, an output buffer, and an insert between loops 6 and 7, plus a 22 x 13.25" pedal surface behind the switcher for the actual stomps.

That layout keeps the switching row at the front of the board where your feet expect it, instead of stealing a row of pedal space for a separate looper. Pedal Power mounting brackets are included for under-board power (second position via optional BDB; X4/X8 via Dual Lock). Ships with a tour-grade padded gig bag with YKK zippers, shoulder strap, and backpack straps.

Specifications

• Overall dimensions: 22 x 16 x 2.75" (559 x 406 x 70 mm)
• Pedal surface: 22 x 13.25" (559 x 337 mm)
• Weight: 6.45 lb (2.93 kg)
• Material: 6061-T6 aircraft-grade aluminum
• Switcher: PX-8 Plus (8 true-bypass loops, 36 presets, MIDI In/Out)
• Soft case (external): 25 x 18.5 x 7" (635 x 470 x 178 mm)
• Origin: Board made in Sonoma County, California, USA

In the Box

• Dingbat PX pedalboard with PX-8 Plus pre-mounted
• Pedal Power mounting brackets
• Tour-grade padded gig bag with YKK zippers, shoulder strap, and backpack straps
• Adhesive-backed hook-and-loop tape
• UV-resistant cable ties
• 4-way adhesive tie mounts
