Description

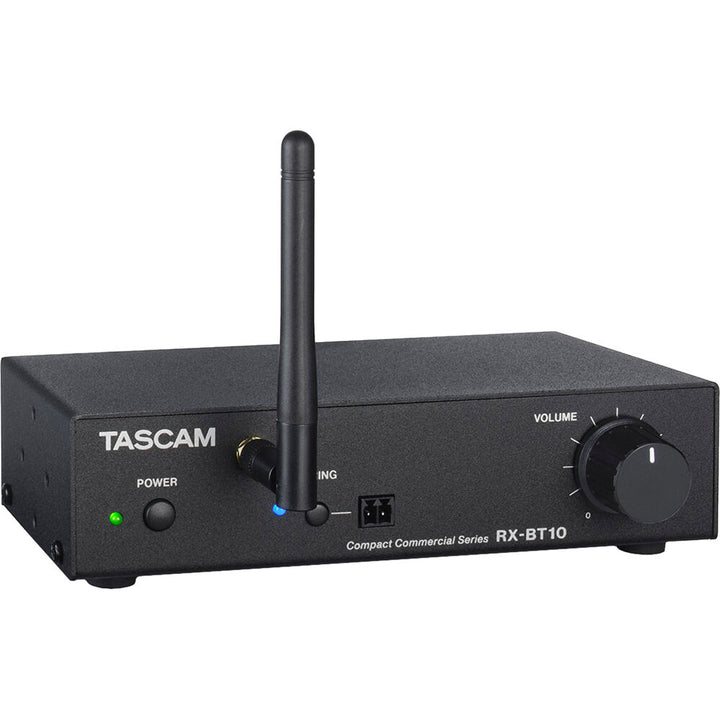

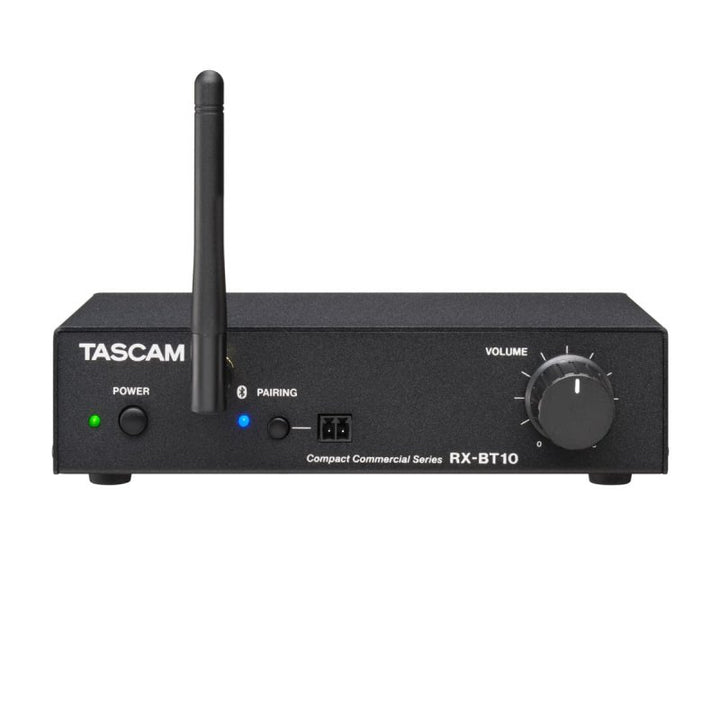

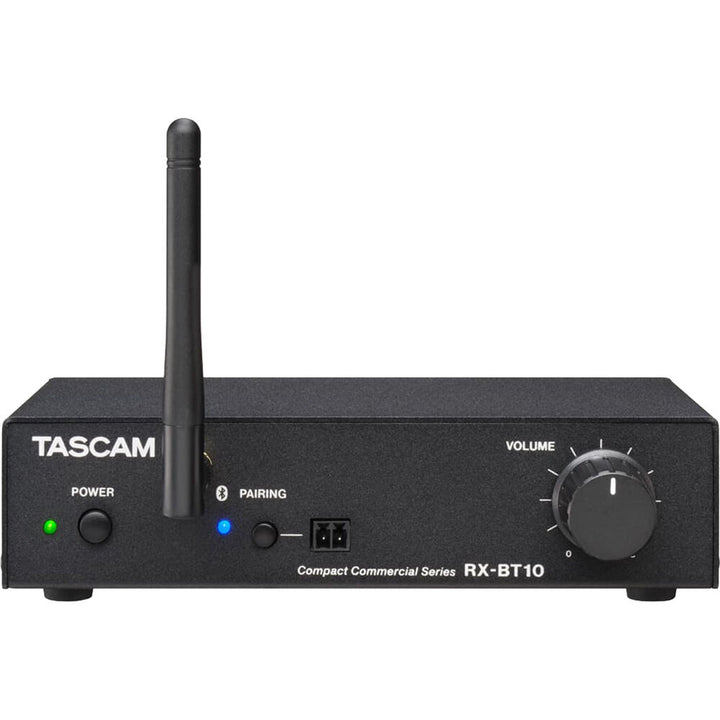

The Tascam RX-BT10 is a compact, professional-grade Bluetooth receiver that adds wireless audio streaming to any installation. Featuring Bluetooth 5.1 Class 1 for extended range (up to 100 m line-of-sight), balanced XLR and unbalanced RCA outputs, and a rugged metal enclosure, the RX-BT10 integrates seamlessly into systems for restaurants, retail stores, hotels, event spaces, conference rooms, and houses of worship.
Long-Range Bluetooth
Bluetooth 5.1 with Class 1 output provides a stable connection over longer distances than typical Class 2 receivers. The front-panel antenna is extendable for optimal placement, and a front-panel Euro block terminal supports connection to an external pairing button for permanent installations. SBC and AAC codecs are supported, and each unit is assigned a unique Bluetooth ID for easy identification when multiple receivers are in use.
Flexible Output Options

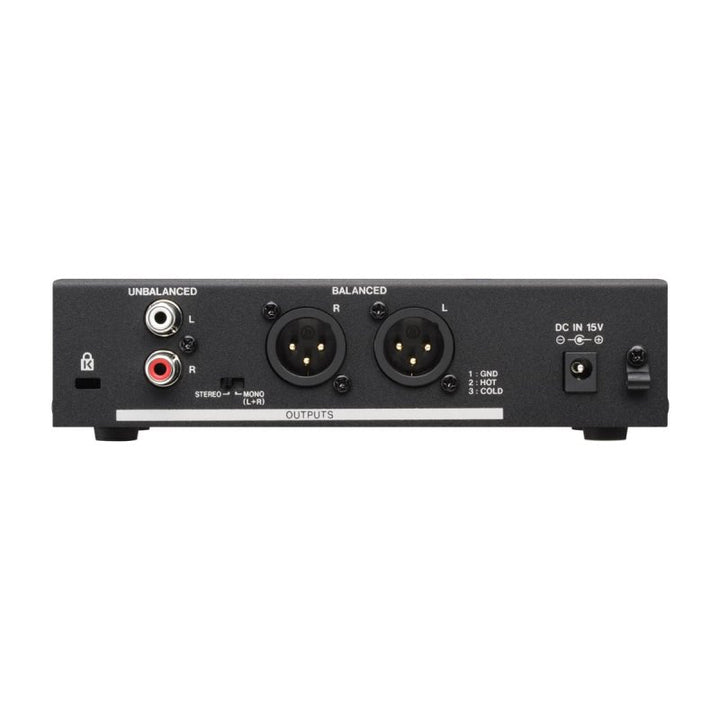

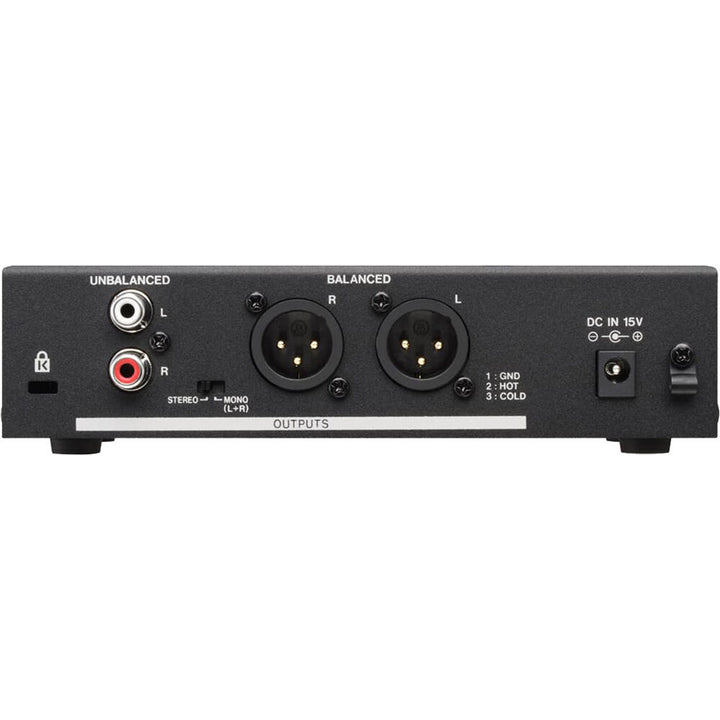

Balanced XLR stereo outputs connect to professional mixers and amplifiers at -2 dBu nominal / +14 dBu maximum. Unbalanced RCA outputs handle consumer-level connections at -10 dBV nominal. A rear-panel mono/stereo switch lets you sum the signal for single-speaker systems.
Mounting and Installation
Top and bottom mounting points and an included bracket kit enable shelf or under-desk installation. For rack-based setups, the optional AK-RS1 1U rack shelf accommodates the RX-BT10 alongside other half-rack Tascam products. Included rubber feet support tabletop use.
Specifications
- Bluetooth Version: 5.1, Class 1 (up to 100 m line-of-sight)
- Supported Profiles: A2DP, AVRCP
- Supported Codecs: SBC, AAC
- Balanced Output: XLR stereo (-2 dBu nominal, +14 dBu max)
- Unbalanced Output: RCA stereo (-10 dBV nominal, +6 dBV max)
- Frequency Response: 20 Hz - 20 kHz, +0.5/-1 dB
- S/N Ratio: 90 dB or more (A-weighted)
- THD+N: 0.04% or less
- Channel Separation: 100 dB or more
- Power: AC adapter (PS-M1524, included), AC 100-240V
- Power Consumption: 1.7W
- Dimensions: 6.73" x 1.77" x 2.87" / 171 x 45 x 73 mm (W x H x D, excluding protrusions)
- Weight: 1.17 lbs / 530 g
In the Box
- Tascam RX-BT10 (with Euroblock plug)
- AC adapter (PS-M1524)
- AC adapter cord
- Bluetooth antenna
- Installation bracket kit (brackets x2, screws x6)
- Safety Guide
