Description
The Tascam IF-ST2110 is a 64-in/64-out SMPTE ST 2110 compliant interface card for the Tascam expansion slot system. It brings IP-based broadcast audio to the Sonicview 24XP, Sonicview 16XP, DA-6400, and DA-6400dp, enabling integration with modern IP studio workflows, remote production setups, and OB vehicles.
SMPTE ST 2110 and AES67 Compliance
The IF-ST2110 supports ST 2110-30/31 uncompressed audio and AES67 standards. It provides up to 64 input and 64 output channels at 48 kHz, or 32 input and 32 output channels at 96 kHz. Bit depths of 16, 24, and 32-bit integer are supported. SMPTE ST 2022-7 redundancy ensures reliable operation in mission-critical broadcast environments.

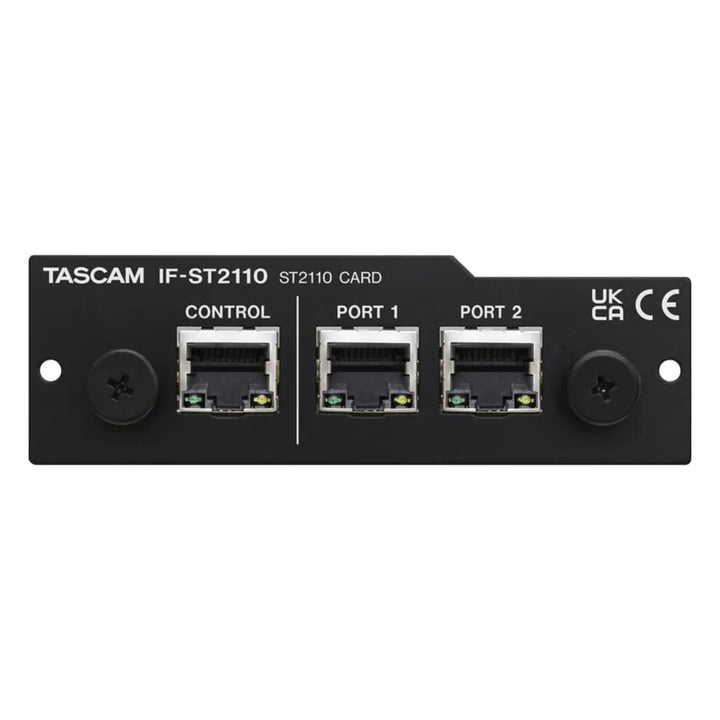

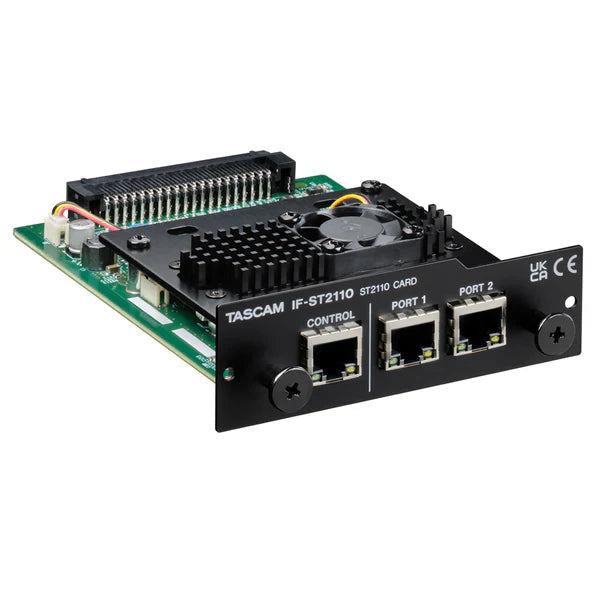

Dedicated Media and Control Ports
The card provides 2 media ports (PORT 1 and PORT 2) for audio streams with ST 2022-7 redundancy, plus a separate CONTROL port for configuration and monitoring. This separation ensures that control traffic does not interfere with audio streams. All ports use RJ-45 connectors with 1000BASE-T Gigabit Ethernet.
NMOS Discovery and Built-In WebUI
AMWA NMOS IS-04/05 support enables automatic device discovery and connection management on IP networks. The built-in WebUI application allows configuration and monitoring from any web browser, including point-to-point connection setup.
Specifications
- Audio channels: 64 in / 64 out at 48 kHz; 32 in / 32 out at 96 kHz
- Standards: SMPTE ST 2110-30/31, AES67
- Bit depth: 16, 24, or 32-bit integer
- Redundancy: SMPTE ST 2022-7
- Discovery: AMWA NMOS IS-04/05 (DNS-SD and mDNS)
- Synchronization: PTP (AES67, IEEE 1588-2008, SMPTE ST 2059-2)
- Ports: 2x media (RJ-45), 1x control (RJ-45), all 1000BASE-T
- Packet times: 1 ms / 125 us
- Compatible with: Sonicview 24XP, Sonicview 16XP, DA-6400, DA-6400dp
- Dimensions: 107 x 34 x 156.8 mm / 4.21 x 1.34 x 6.17 in (W x H x D)
- Weight: 211 g / 7.44 oz
In the Box
- IF-ST2110 card
- Owner's Manual (including warranty)
