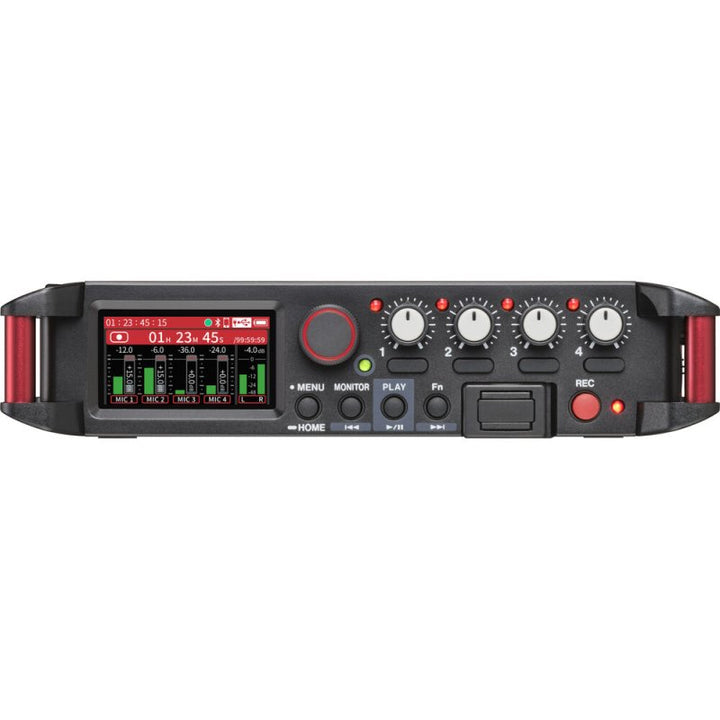

Tascam FR-AV4 4-Channel 32-Bit Float Field Recorder with Mixer, Timecode, and HDMI Sync
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
A few orders are not eligible: items that need specialty shipping (certain cases, stands and other gear that requires special handling), and orders shipping to Newfoundland and Labrador, the Northwest Territories or Nunavut.
Carriers sometimes charge far more for oversized freight to certain locations. In that rare case, we pay most of the extra and ask you to cover a small part.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm and Sezzle financing are available for most products. For Affirm, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Sezzle: eligible customers can split a purchase into 4 interest-free payments over 6 weeks. Approval and payment terms depend on the purchase amount and an eligibility check, may not be available in all provinces or territories, and are shown at checkout. Payment options are provided through Sezzle. For more information, please see sezzle.com/how-it-works.
Affirm: eligible customers can pay over time in monthly instalments. Your rate and available terms depend on an eligibility check based on creditworthiness, your purchase amount, and applicable provincial limits, and may not be available in all provinces or territories. Actual terms, the payment schedule, and any required down payment are shown at checkout. Payment options are provided through Affirm Canada Holdings Ltd. For more information, please see affirm.com/how-it-works.
Description

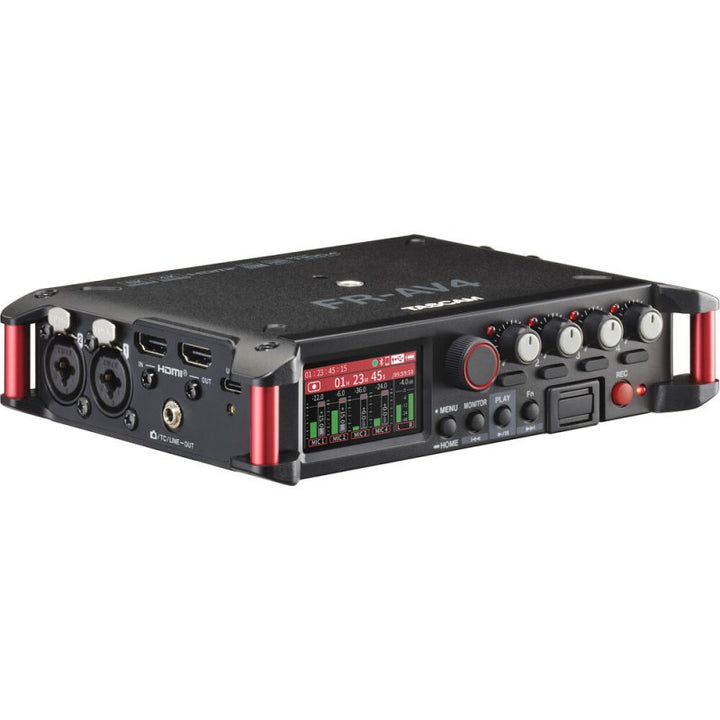

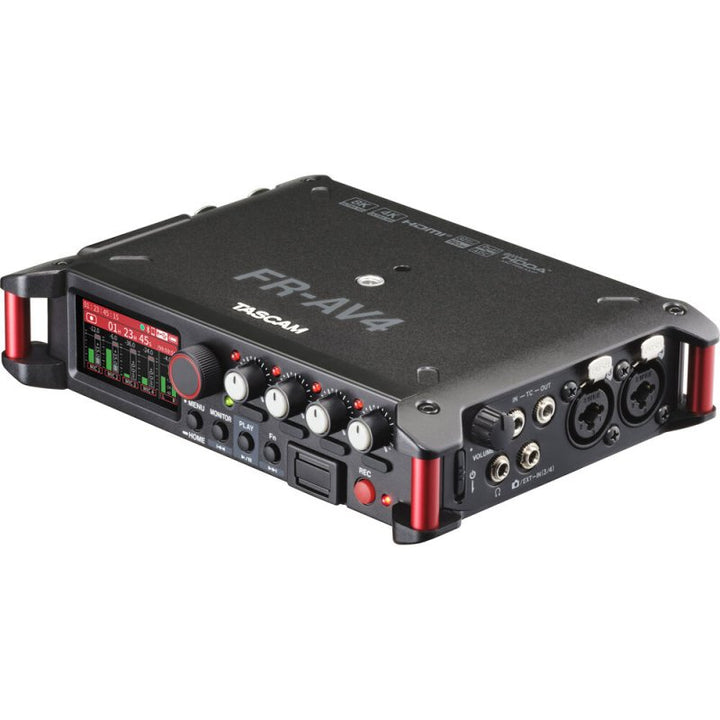

The Tascam FR-AV4 is a 4-channel 32-bit float field recorder with a built-in mixer, timecode generator, and HDMI sync capability. Featuring Ultra HDDA preamps with a 133 dB dynamic range, four XLR/TRS inputs, and support for 4K/8K HDMI pass-through, the FR-AV4 is designed for videographers, sound designers, and production professionals who need locked audio-video synchronization and pristine multi-channel recording in a compact, portable form factor.
133 dB Dynamic Range
Dual A/D converters deliver 133 dB of analog dynamic range with 32-bit float recording at 48, 96, or 192 kHz. The Ultra HDDA preamps (EIN -127 dBu) on all four XLR/TRS combo inputs capture everything from whispers to explosions without clipping or excessive noise floor.
HDMI Timecode Sync
The FR-AV4 enables precise audio-video synchronization via HDMI clock, with cascade and recording trigger control supporting 4K/8K video pass-through. In addition to HDMI, timecode is available via 3.5mm stereo TC IN/OUT, USB output, and wireless Atomos Bluetooth sync (with optional AK-BT2). A high-accuracy TCXO ensures reliable Jam Sync and timecode generation.
Built-In Mixer

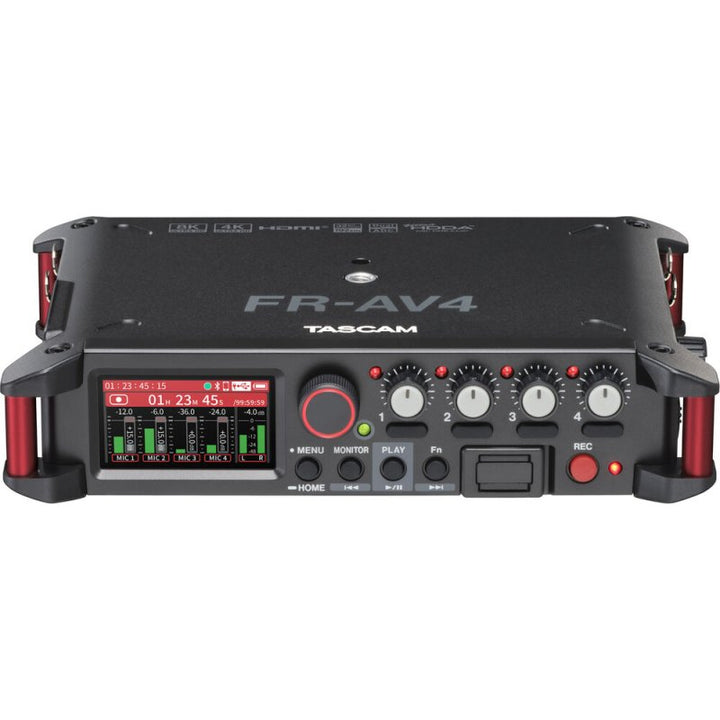

Mix up to four inputs down to two outputs using the onboard mixer. The 1.9-inch color LCD touchscreen and intuitive jog wheel provide quick access to levels, routing, and processing.
6-Track Recording
Record six simultaneous tracks (four individual channels plus a stereo mix) to an SDXC card up to 512 GB. Multiple recording formats are supported including 32-bit float, 24-bit, and 16-bit WAV at sample rates up to 192 kHz.
Input Processing
- Low-cut filter, 3-band EQ, limiter, and noise gate per channel
- Auto Mix with gain sharing across four channels (firmware v1.10 or later)
- Input and output delay (0-300 ms)
- Ambisonics recording in A-format / B-format (AmbiX, FuMa)
Connectivity
- 4x XLR/TRS combo inputs with +48V phantom power

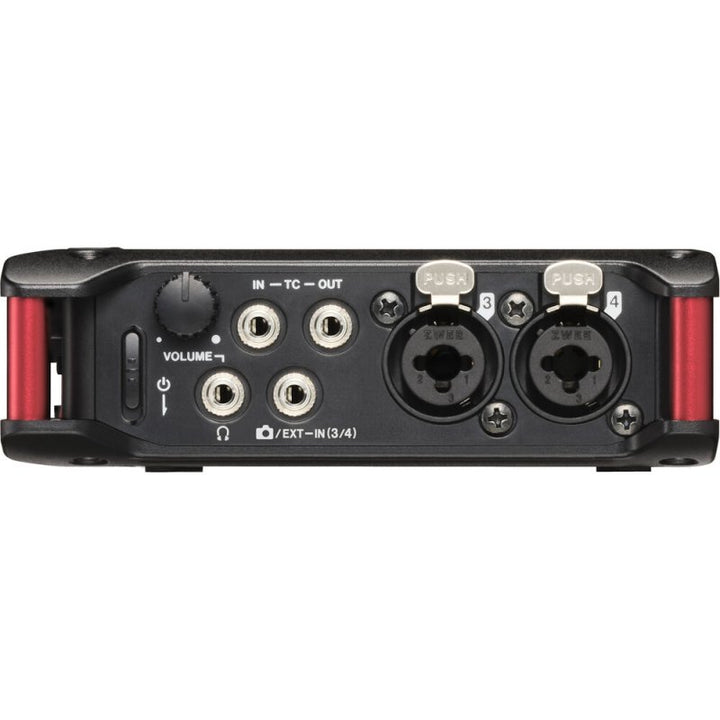

- 3.5mm TRS Camera/EXT input (mono/stereo) with plug-in power (+2.5V/+5.0V)
- 3.5mm stereo Camera/TC/LINE output
- 3.5mm stereo headphone output

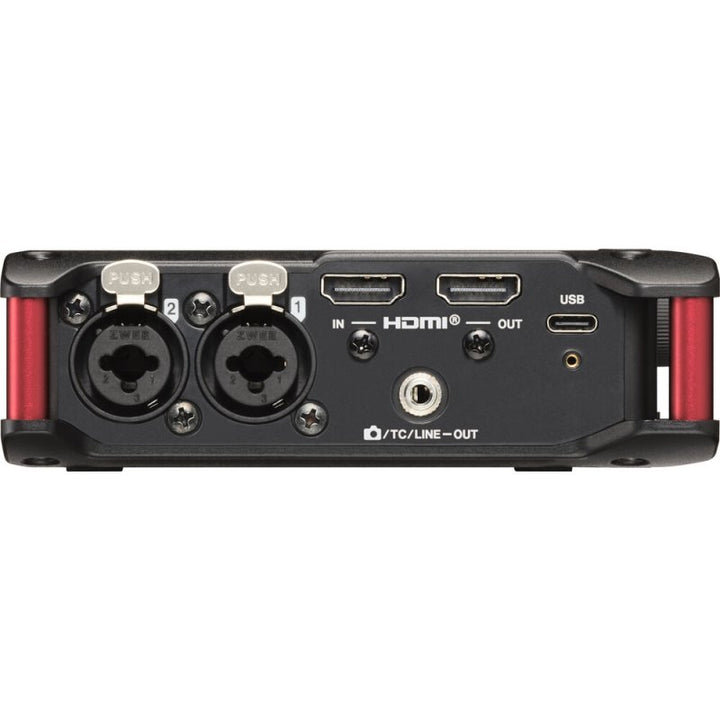

- HDMI (4K/8K pass-through, clock sync, cascade, rec trigger)
- USB-C: 6-in/2-out audio interface (24-bit / 32-bit float)
- Bluetooth: AK-BT2 adapter connector (sold separately)
Additional Features
- Wireless audio monitoring via optional AK-BT2
- Free TASCAM Recorder Connect app for controlling up to 5 units
- Assignable function key for quick access to preferred settings
- Built-in tone generator for level matching
- Auto File Save to prevent data loss on battery depletion
- Monitor Select menu for quick routing changes

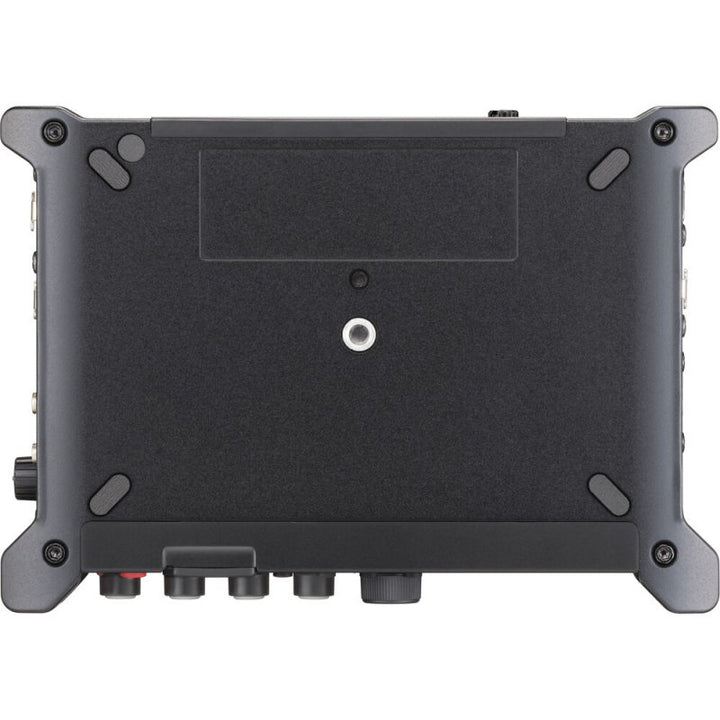

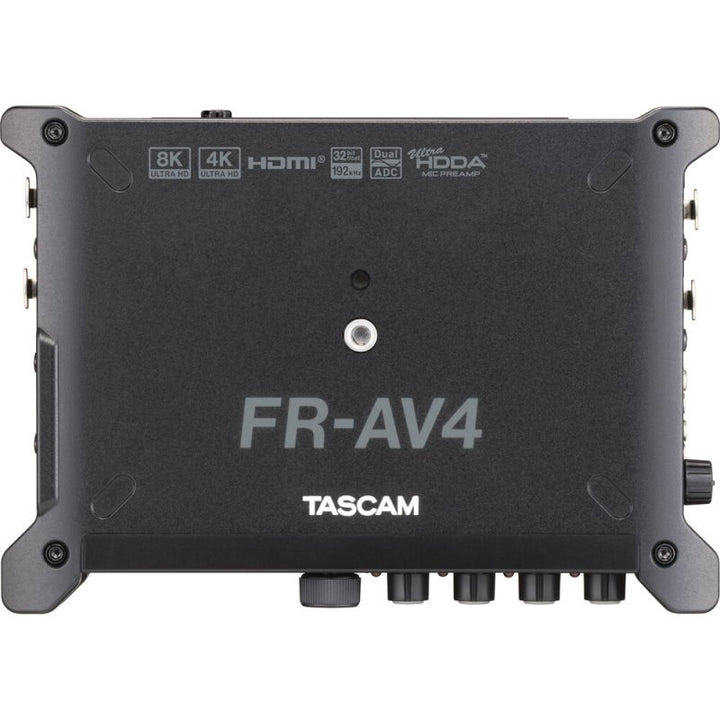

- Camera screw mount for use with camera rigs
- Power via 4 AA batteries, USB mobile battery, or PS-P520U AC adapter (sold separately)
Specifications
- Recording format: WAV (BWF) 48/96/192 kHz, 32-bit float / 24-bit; MP3
- Recording tracks: 6 (4 tracks + stereo mix)
- Mic preamps: Ultra HDDA, EIN -127 dBu
- Dynamic range: 133 dB (dual AD converter)
- Timecode: SMPTE LTC, 23.98/24/25/29.97/29.97DF/30 fps, TCXO
- Display: 1.9-inch color LCD touchscreen
- Recording media: SD / SDHC / SDXC up to 512 GB
- Power: 4 AA batteries, USB bus power, or PS-P520U AC adapter (sold separately)
- Power consumption: 5.4W maximum
- Dimensions: 184 x 42 x 130 mm (7.25 x 1.66 x 5.12 in), including protrusions
- Weight: 756 g / 1.67 lb (with batteries), 660 g / 1.46 lb (without batteries)
In the Box
- Tascam FR-AV4

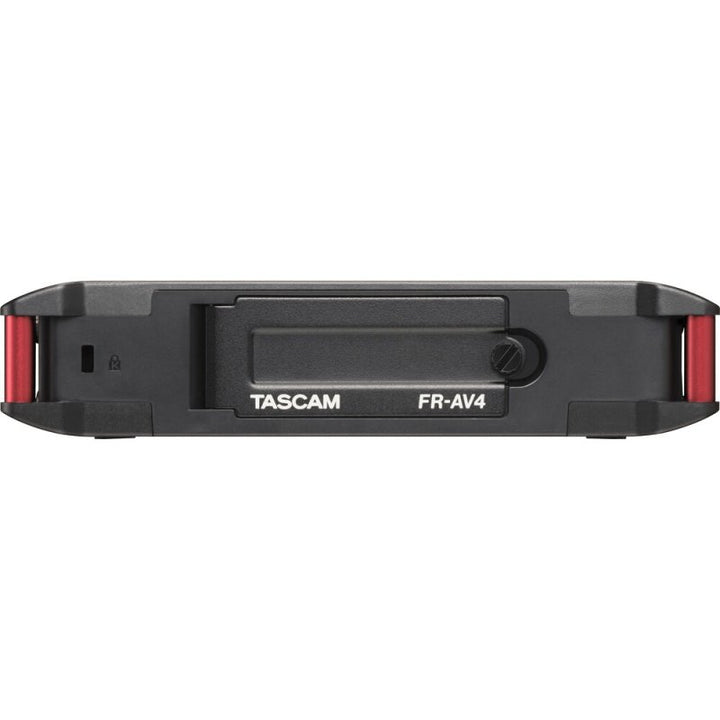

- BH-4AA battery holder (pre-installed)
- Safety guide (including warranty)
- TASCAM ID registration guide
