Description
Overview

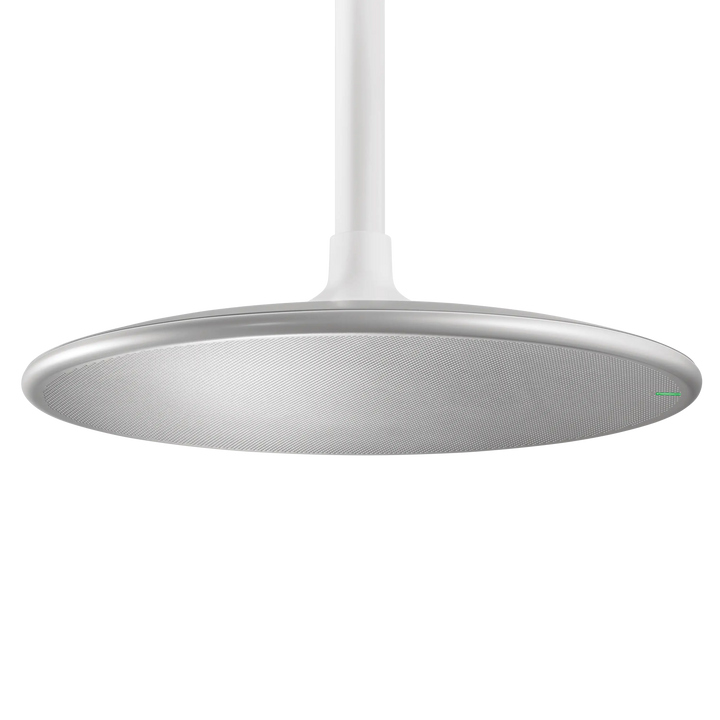

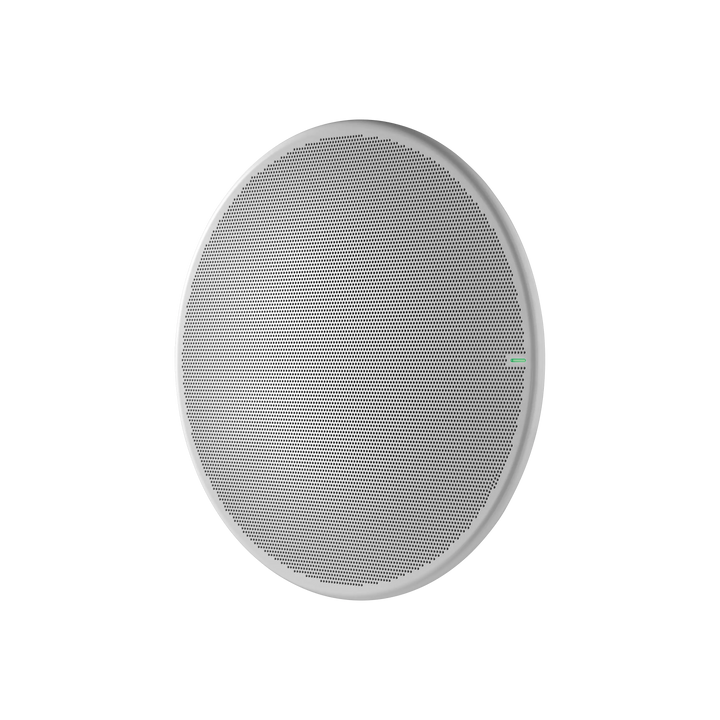

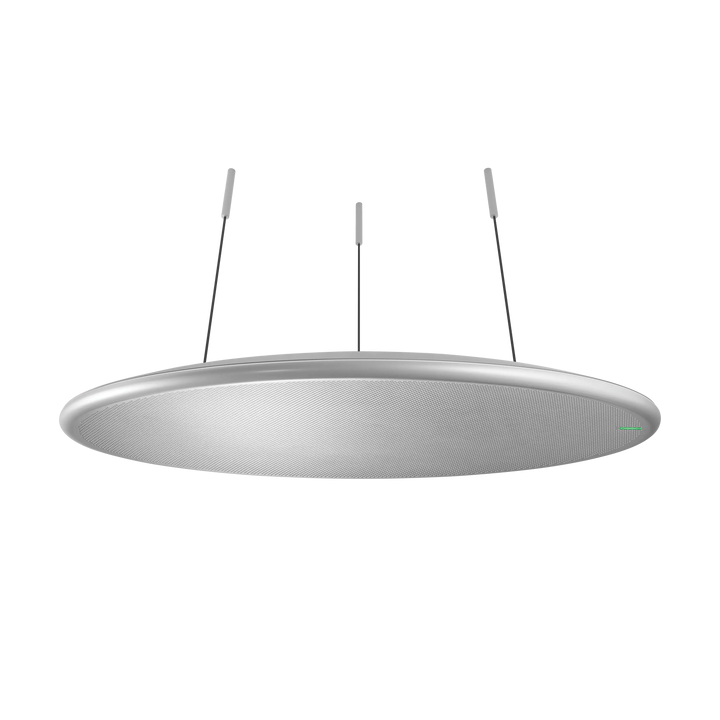

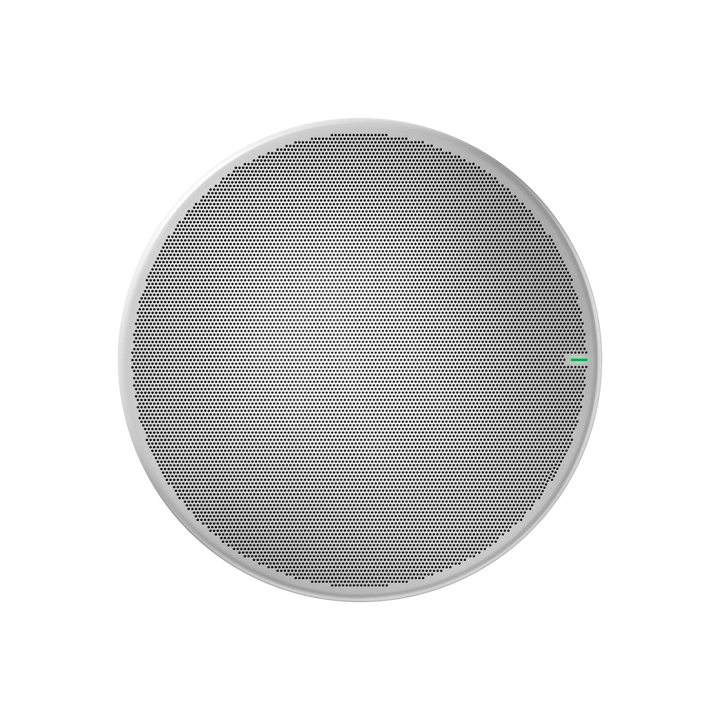

The Shure MXA920 is a ceiling-mount array microphone with Automatic Coverage™ technology that works out of the box with no setup required. Its next-generation array architecture provides enhanced directional pickup and natural-sounding speech capture with a default 30×30 ft (9×9 m) coverage area. The round form factor is designed for open-ceiling or drywall installations using VESA mounts or wire rope suspension.
Key Features
- IntelliMix® DSP built-in: AEC (250 ms tail), noise reduction, AGC, automatic mixing
- Dante™ / AES67 networked audio with Shure encryption support
- IP5X dust protection
- Microsoft Teams certified
- Shure Designer software for optional fine-tuning
Specifications
- Color: Aluminum
- Array type: Planar (ceiling)
- Coverage mode: Automatic (default) or Steerable (up to 8 lobes)
- Default coverage: 30 × 30 ft (9 × 9 m), adjustable
- Dante channels: 2 (Automatic mode) / 10 (Steerable mode: 8 + automix + AEC ref)
- Frequency response: 125 Hz – 20 kHz
- Sensitivity: –1.74 dBFS/Pa at 1 kHz
- SNR: 75.76 dB (A-weighted)
- Dynamic range: 77.5 dB
- Latency: 15.9 ms (direct) / 26.6 ms (automix)
- Power: PoE, Class 0 (10.1W max)
- Connector: RJ45

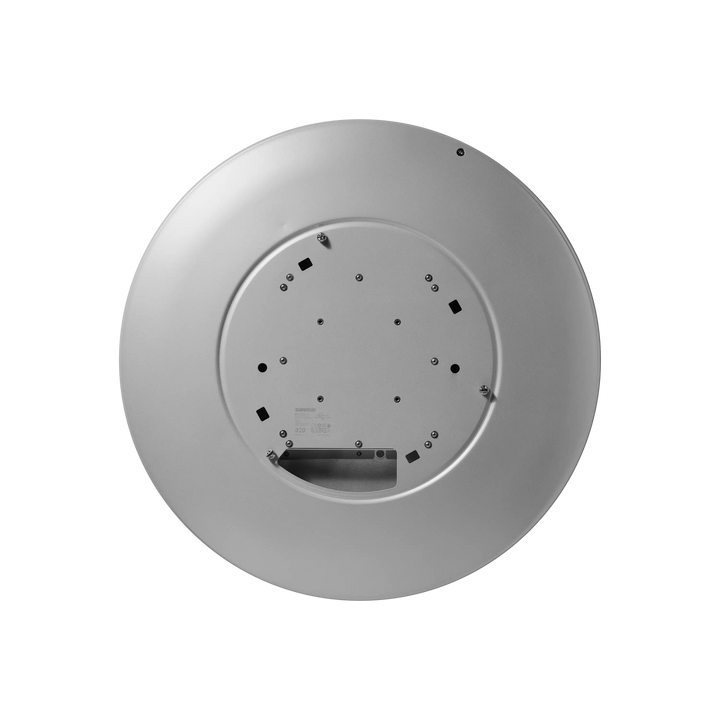

- Mount: VESA MIS-D (100 mm), wire rope, or pole mount
- Plenum rating: Not rated
- Dimensions: Ø 635.4 mm × 61.3 mm H (Ø 25.0 in × 2.4 in H)
- Weight: 5.8 kg (12.7 lb)
In the Box
- MXA920 ceiling array microphone (Aluminum, Round)
- Hardware kit (cable ties, strain relief tabs)
