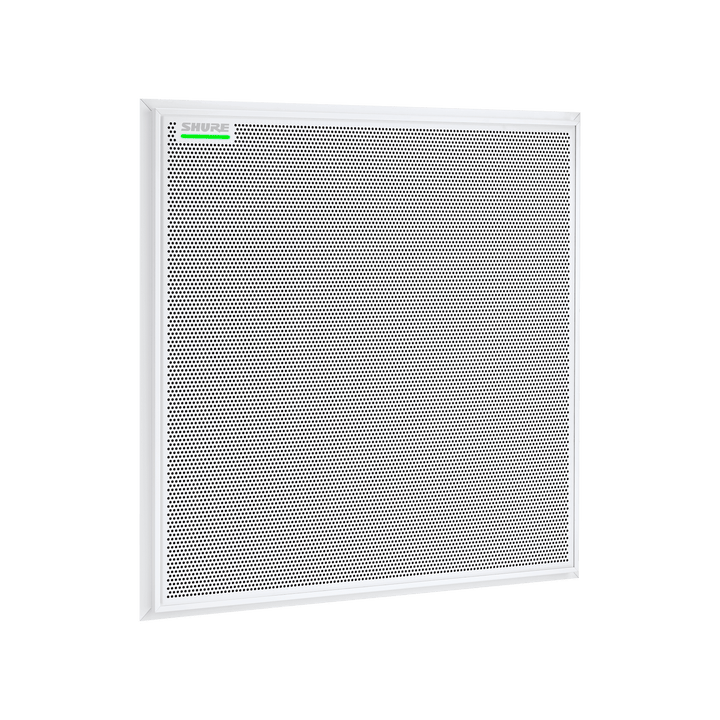

MXA910W-US
Talk to our Experts
Talk to our Experts
Have questions about this product? Our audio experts are here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description
Overview
PLEASE NOTE: The MXA910 has been discontinued and replaced by the MXA920 learn more.
Details
Audio Capture / DSP
Steerable Coverage™ Technology
- Up to eight discrete steerable lobes for precise positioning
- Provides full room coverage for areas up to 30’x30’ right out of the box
- New Autofocus™ Technology continually adjusts lobe location in real time for optimal audio performance
- Faster Auto-Position tool for quick and accurate lobe deployment
Software Control and Monitoring
Designer (v3.2) System Configuration Software
- Enables the creation of projects with multiple “virtual” or live MXA910 Ceiling Array Microphones positioned over an imported room layout diagram, with real-time audio routing between Shure Networked Audio Devices.
- Built in Auto Position tool easily adjusts lobes toward each participant's voice.
SystemOn™ Audio Asset Management Software
- Enables remote monitoring of all MXA910 parameters, including mute status and network connectivity
Connectivity
- Dante™ / AES67 Audio Networking, standard PoE (class 0 / 3) and Control carried on single Ethernet cable
- Control strings for third-party controllers including Crestron and AMX
Encryption
Shure Network Audio Encryption provides encrypted Dante audio when used with IntelliMix® P300 Audio Conferencing Processor and ANI4IN, ANI4OUT, ANI22 and ANIUSB-MATRIX.
Hardware / Installation
- Available in two sizes and three colors (white, black, aluminium; detachable grille can also be custom painted)
- Plenum rated: certified compliant with UL2043 standard
- Dust rating: IEC 60529 IP5X Dust Protected
- Integrated LED light bar has 19 color options and 5 level of brightness
Mounting Flexibility
Versatile installation options include flush mount (ceiling grid), VESA mount, wire rope suspension and hard ceiling mount.
- A910-25MM: Configures a 600mm Ceiling Array for a 625mm grid.
- A910-JB: Allows the Ethernet cable connected to the array to be installed inside flex conduit.
- A910-HCM Hard Ceiling Mount: Can be pre-installed in the ceiling and the MXA910 installed later using the access door. Provides knockouts for conduit connections.
How It Works
With versatile mounting options, the MXA910 delivers speech that’s naturally intelligible, giving you widespread coverage for AV needs of all sizes. Collaboration. Presentation. Training. With no mics or cables in the way, you’re free speak, and clear to connect.
Quality that’s in the Details
- Available in three colors (white, black, aluminum) or custom paintable to match room aesthetics
- Dante Domain Manager / Device Lock compatible
- UL 2043 plenum rated and IP5X rated
- LED status bar with configurable colors and brightness
