Description

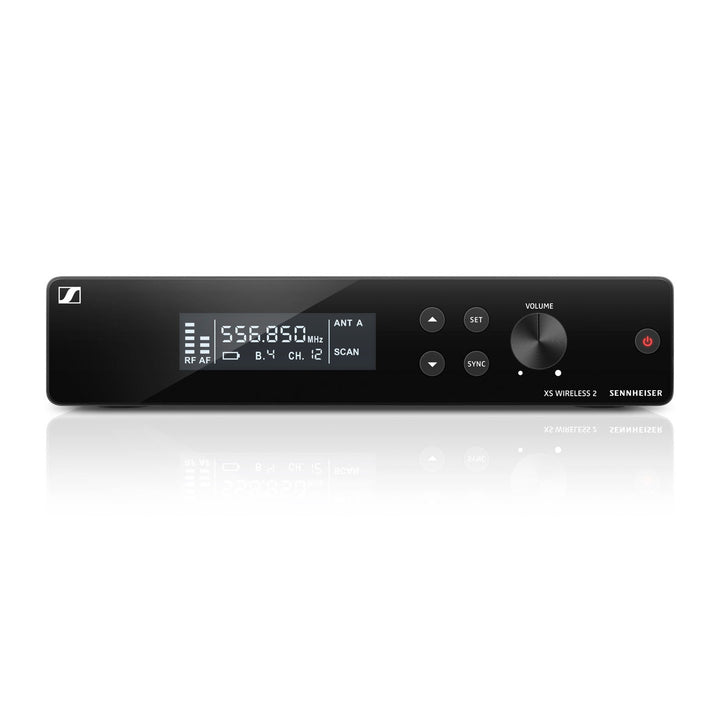

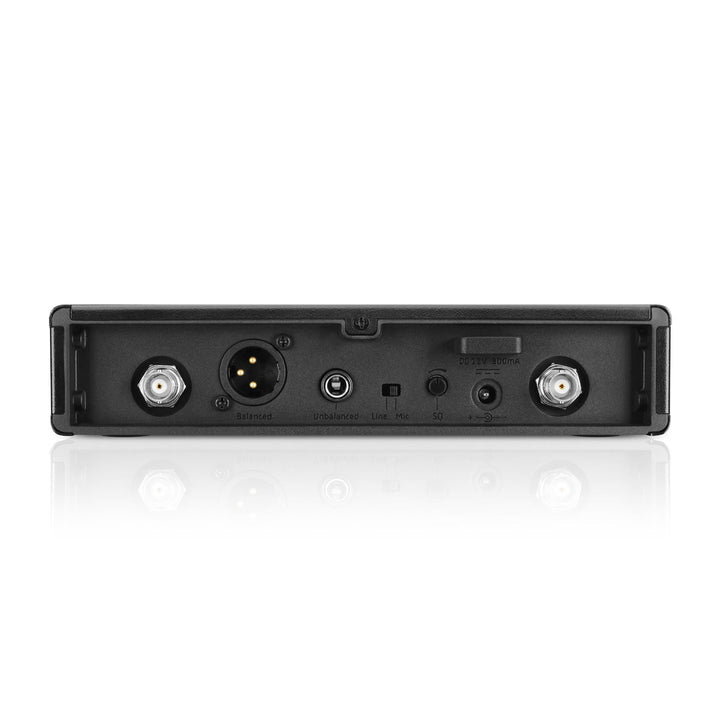

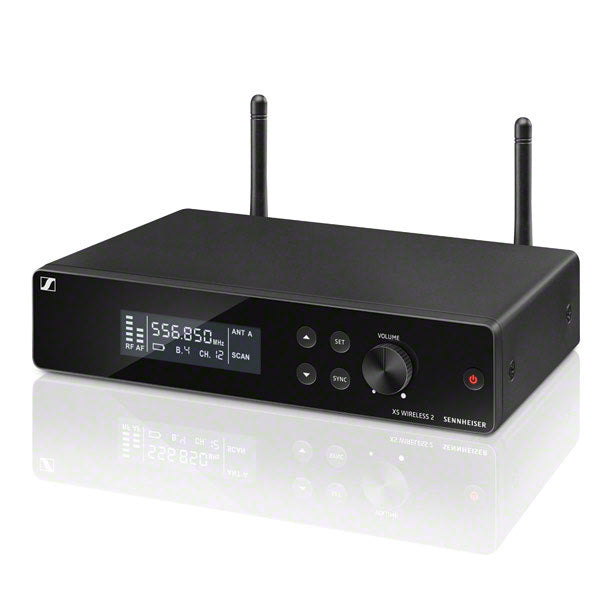

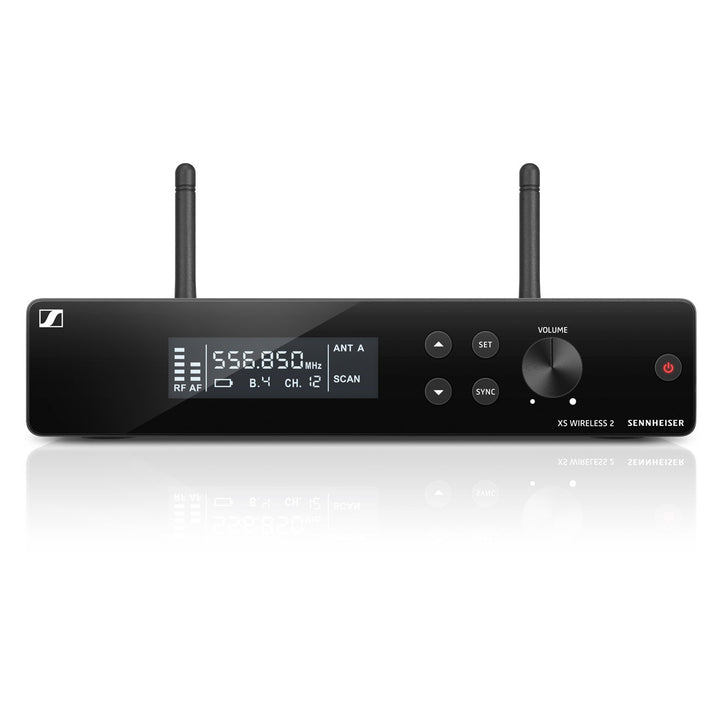

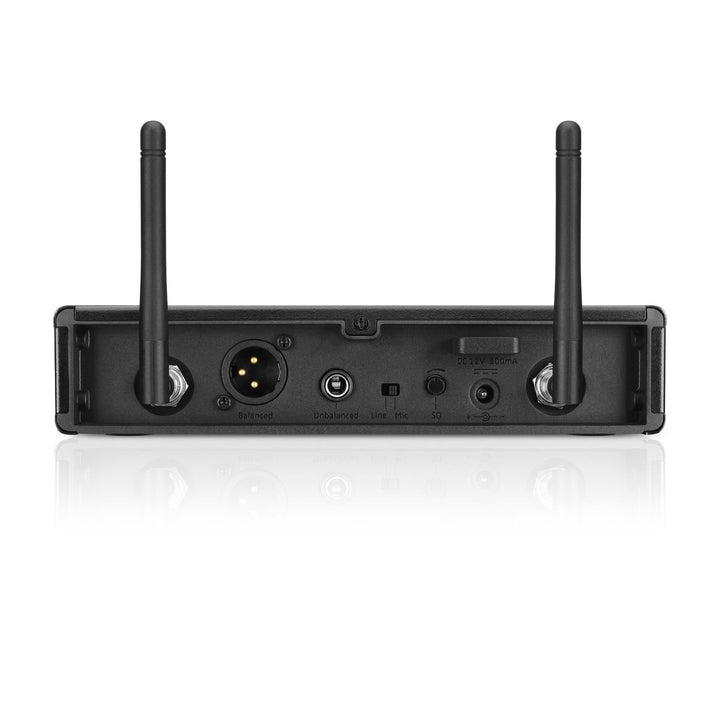

The Sennheiser EM-XSW 2 is an analog UHF true-diversity receiver for XS Wireless 2 systems with external antennas and metal housing. Eight banks of up to 12 presets plus 25 kHz manual tuning give more RF flexibility than XSW 1 for clubs and fixed installs. Removable antennas and optional rack hardware suit permanent wireless vocal racks.
Features
- True-diversity external-antenna receiver for XSW 2
- Up to 24 MHz bandwidth; 8 x 12 presets + manual tune
- Metal housing; approx. 680 g (24.0 oz)
- Optional GA 1-XSW 2 rack kit and antenna front-mount
- Frequency variants such as A (548 - 572 MHz) in catalog
Specifications
- Modulation: Wideband FM
- Receiver principle: Double superheterodyne
- Diversity: True diversity
- Switching bandwidth: up to 24 MHz
- Frequencies: 8 banks x up to 12 factory presets; 25 kHz manual tuning
- AF frequency response: 50 - 16,000 Hz (-3 dB)
- Sensitivity: < 3 µV at 52 dB(A)eff S/N (peak deviation)
- Signal-to-noise: ≥ 103 dBA
- THD: ≤ 0.9 %
- AF outputs: XLR balanced +12 dBu; 6.3 mm unbalanced +6 dBu
- Audio adjustment range: 40 dB in 5 dB steps
- Power: 12 V DC nom. / 300 mA
- Housing: Rugged metal
- Dimensions: 200 x 42 x 127 mm (7.87" x 1.65" x 5.00")
- Weight: approx. 680 g (680 g (24 oz))
- Frequency range: A (548 - 572 MHz)
In the Box
- EM-XSW 2 true diversity receiver
- (4) Rubber feet
- NT 12-5 CW power supply
