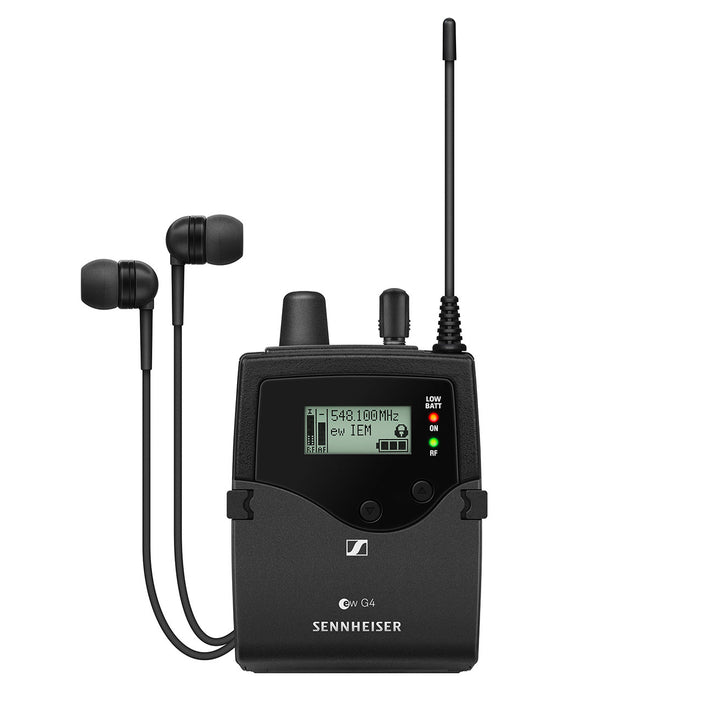

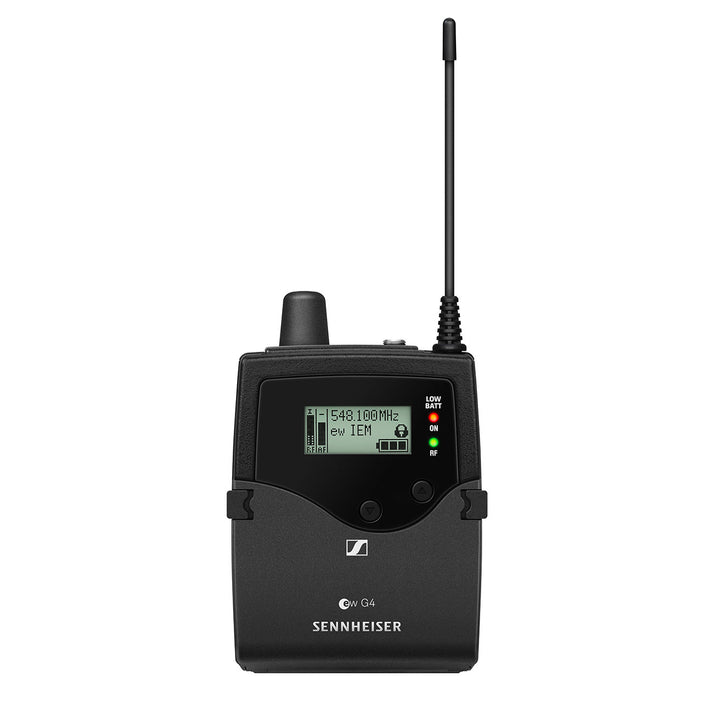

Sennheiser EK IEM G4 Wireless IEM Bodypack Receiver (A)

The Sennheiser EK IEM G4 is a stereo UHF bodypack receiver for evolution wireless IEM G4 monitor systems. Adaptive diversity, HDX companding, and up to 42 MHz switching bandwidth deliver stable personal mixes with IE 4 earphones included. AA or BA 2015 power and Focus/stereo modes suit touring IEM racks paired with SR IEM G4 transmitters.

Features

• Stereo IEM bodypack for SR IEM G4 transmitters
• Adaptive diversity; up to 42 MHz switching bandwidth
• 2 x 100 mW at 32 Ω headphone output
• Frequency variants A / A1 / G and others in catalog
• Approx. 125 g (4.4 oz) with batteries; 4 - 6 h runtime

Specifications

• Modulation: Wideband FM stereo
• Receiver principle: Adaptive diversity
• Switching bandwidth: up to 42 MHz
• Receiving frequencies: up to 1680, 25 kHz steps; 20 banks x 16 presets + 6 user banks
• Nominal / peak deviation: ±24 kHz / ±48 kHz
• Compander: Sennheiser HDX
• Signal-to-noise: approx. 90 dB
• THD: ≤ 0.9 %
• Headphone output: 2 x 100 mW at 32 Ω (at 2.4 V, 5% THD, nominal deviation)
• High Boost: +8 dB at 8 kHz
• Limiter: -18 dB to -6 dB in 6 dB steps, defeatable
• Power: 2x AA 1.5 V or BA 2015 accupack
• Operating time: approx. 4 - 6 h (volume dependent)
• Dimensions: 82 x 64 x 24 mm (3.23" x 2.52" x 0.94")
• Weight: approx. 125 g (125 g (4.4 oz)) with batteries
• Frequency range: A (516 - 558 MHz)

In the Box

• EK IEM G4 stereo receiver
• (2) AA batteries
• IE 4 earphones
• Quick guide
• Safety guide
