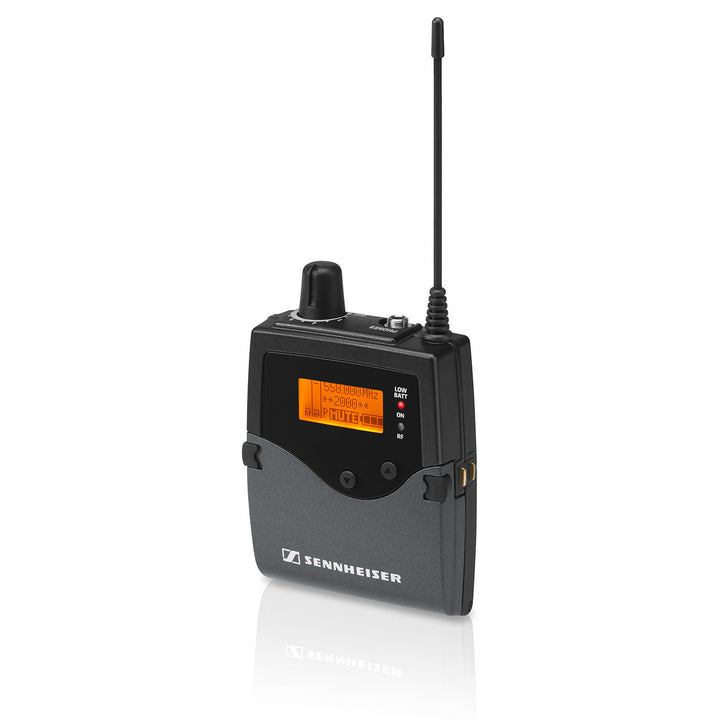

Sennheiser EK 2000 IEM Wireless IEM Bodypack Receiver (GW1)

The Sennheiser EK 2000 IEM is a professional stereo UHF bodypack receiver for 2000 Series in-ear monitoring with a rugged all-metal housing. Adaptive diversity, up to 75 MHz switching bandwidth, and WSM software compatibility suit large coordinated RF plots. Higher headphone output (2 x 200 mW at 32 Ω) and IR sync with SR 2000 IEM transmitters cover demanding stage IEM work.

Features

• All-metal 2000 Series stereo IEM bodypack
• Up to 75 MHz switching bandwidth; adaptive diversity
• 2 x 200 mW at 32 Ω headphone output
• WSM-compatible frequency coordination
• Band variants such as AW+ and GW1 in catalog

Specifications

• Modulation: Wideband FM
• Receiver principle: Adaptive diversity
• Switching bandwidth: up to 75 MHz
• Receiving frequencies: up to 3000+, 25 kHz steps; 20 banks x up to 32 presets + 6 user banks
• Compander: Sennheiser HDX
• Signal-to-noise: approx. 90 dB
• THD: ≤ 0.9 %
• Headphone output: 2 x 200 mW at 32 Ω (at 2.4 V, 5% THD, nominal deviation)
• Power: 2x AA 1.5 V or BA 2015 accupack
• Operating time: approx. 4 - 6 h (volume dependent)
• Dimensions: 82 x 64 x 24 mm (3.23" x 2.52" x 0.94")
• Weight: approx. 140 g (139 g (4.9 oz)) with batteries
• Frequency range: GW1 (558 - 608 MHz)

In the Box

• EK 2000 IEM adaptive diversity receiver
• IE 4 earphones
• Quick guide
• Safety guide
