DFINDISTRO4

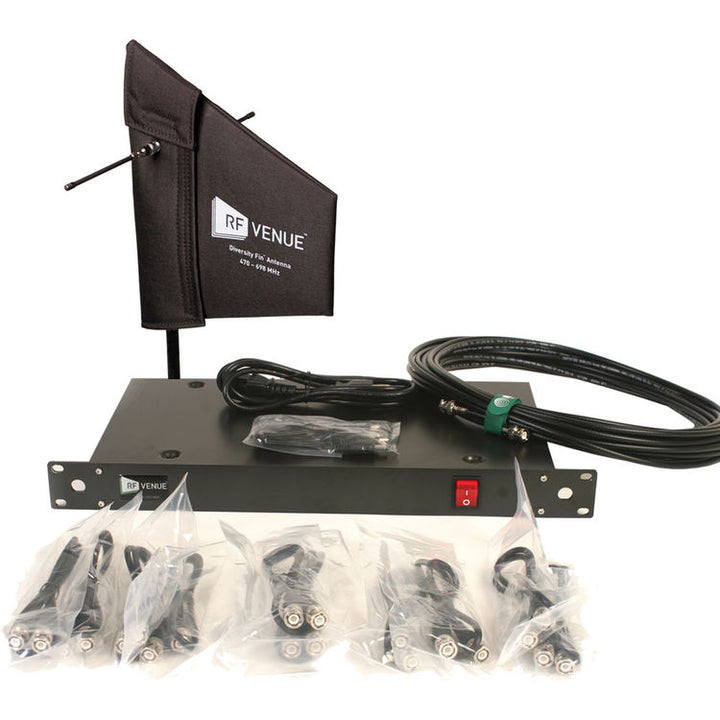

The 4-Channel Antenna Distributor with Cloth-Covered Diversity Fin Antenna and Cables Bundle from RFvenue features the DISTRO4 which supplies RF and DC power to four wireless microphone systems of any brand, allowing for splitting two incoming antenna signals across multiple receivers.

The bundle also includes the cloth-covered DFIN Diversity Fin Antenna, a portable, simple to operate wireless microphone antenna that reduces microphone dropouts and interference in tough RF environments. Multiple-thread microphone stand mounts are provided.

DC and RF jumper cables required for four-channel microphone system operation are also included, along with two 25-foot RG8X coaxial cables.

RF and DC 4-Channel Distribution System

The RF and DC 4-Channel Distribution System from RFvenue is designed to provide DC power and split the signal from 2 antennas between up to 4 optional wireless receivers. RFvenue includes 4 BNC cables for splitting the RF signal as well as 4 DC jumpers to provide your wireless receivers with power.

Diversity Fin Antenna

The RFvenue Diversity Fin Antenna is capable of receiving diversity signals with just a single antenna, and avoids cumbersome multi-antenna configurations. The Diversity Fin Antenna will work with any wireless microphone or EIM system operating within the 470 - 698 UHF band. The antenna incorporates LPDA and dipole antennas oriented at exactly 90°. Easily mount the Diversity Fin onto any 1/4-20, 3/8-16 or 5/8-27 stand without the need for any adapters.
