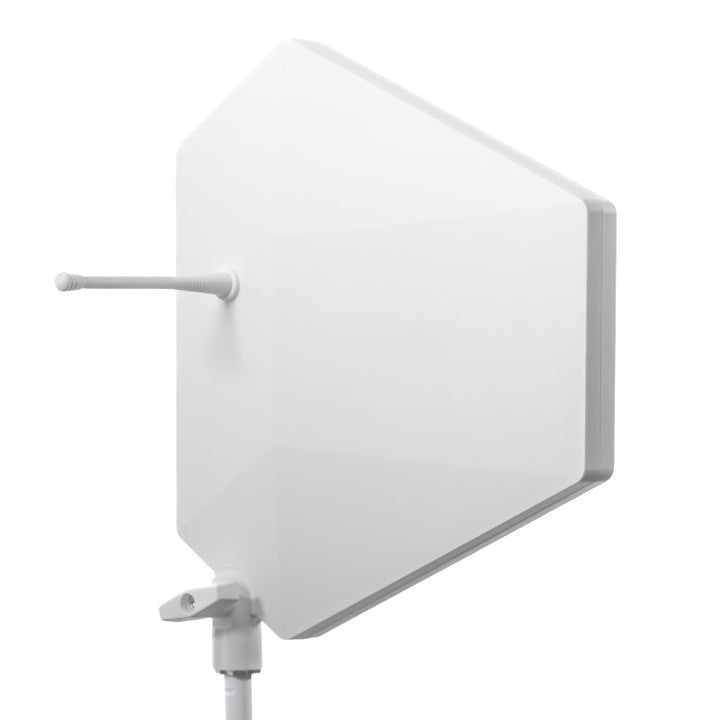

Diversity Fin IPX Antenna, White (470 to 928 MHz)

<p><strong>Diversity Fin® IPX Antenna, White: Rugged, Weather-Resistant, Reliable</strong></p>

<p>The Diversity Fin® IPX Antenna, White, is the next evolution of RF Venue’s industry-standard flagship. Engineered to provide the same legendary performance as the original Diversity Fin, the IPX version is built to withstand the unpredictability of the elements for permanent wallmount installation.</p>

<p>The Diversity Fin IPX White delivers a consistently reliable wireless microphone signal as part of a permanent outdoor installation. Its bulletproof design effectively eliminates multi-path interference and signal dropouts. This is achieved by combining a log-periodic dipole array (LPDA) and a dipole antenna within a single, IP-rated ruggedized housing, allowing the IPX to capture both vertical and horizontal signals.</p>

<p><strong>KEY FEATURES</strong></p>

<ul>

<li>All-Weather Reliability: Like the CP Stage Antenna, IPX is Rated IP44, featuring a weather-resistant seal and downward-facing BNC connectors to protect against rain and dust. </li>

<li>Patented Cross-Polarized Design: Replaces two traditional "shark fin" paddle antennas with a single, high-performance unit that reduces cost, setup time, and user error.</li>

<li>Superior Signal Integrity: Specifically designed to combat multi-path interference, providing a more stable RF environment for wireless microphones. </li>

<li>Versatile Mounting: Includes a standard 5/8”-27 threaded microphone stand connector (with EU adapter). </li>

<li>High Compatibility: Operates across the 470-928 MHz range, making it compatible with nearly all modern wireless microphone systems.</li>

</ul>

<p><strong>WHY CHOOSE THE DIVERSITY FIN IPX ANTENNA?</strong></p>

<p>For years, the Diversity Fin has been the go-to solution for eliminating dropouts. The IPX version takes that performance outdoors and to tough stage environments. By utilizing a cross-linear polarization design, the IPX captures signals regardless of how the performer holds the transmitter or what multi-path environment you find yourself in.</p>

<p>One Antenna System for Diversity Wireless: Because the Diversity Fin IPX houses two antenna elements in one, you only need a single mount and a single location to achieve diversity reception. This not only cleans up your stage plot but also provides a more cost-effective solution than purchasing two separate high-quality paddles.</p>

<p><strong>TECHNICAL SPECIFICATIONS</strong></p>

<ul>

<li>Operating Frequency: 470–928 MHz </li>

<li>Weather Rating: IP44 (Weather-resistant) </li>

<li>Connector Type: Downward-facing BNC-F (50 ohm) </li>

<li>Polarization: Cross-Linear (Vertical & Horizontal) </li>

<li>Impedance: 50 ohm </li>

<li>Type: Passive (No active electronics) </li>

<li>Mounting: 5/8”-27 threaded mount (EU adapter included) </li>

<li>Available Finishes: Matte Black or Matte White</li>

</ul>

<p><strong>IN THE BOX</strong></p>

<ul>

<li>(1) Diversity Fin IPX Antenna, White </li>

<li>(2) Dipole Antennas </li>

<li>(2) Spare Dipole Antennas</li>

<li>(1) Threaded EU Microphone Stand Adapter</li>

</ul>

<p><strong>PRO TIP</strong>: While the Diversity Fin IPX White is perfect for outdoor installation, for sleek, aesthetic-focused indoor installations, we recommend the RF Venue Diversity Architectural Antenna.</p>

• All-Weather Reliability: Like the CP Stage Antenna, IPX is Rated IP44, featuring a weather-resistant seal and downward-facing BNC connectors to protect against rain and dust.
• Patented Cross-Polarized Design: Replaces two traditional "shark fin" paddle antennas with a single, high-performance unit that reduces cost, setup time, and user error.
• Superior Signal Integrity: Specifically designed to combat multi-path interference, providing a more stable RF environment for wireless microphones.
• Versatile Mounting: Includes a standard 5/8”-27 threaded microphone stand connector (with EU adapter).
• High Compatibility: Operates across the 470-928 MHz range, making it compatible with nearly all modern wireless microphone systems.
