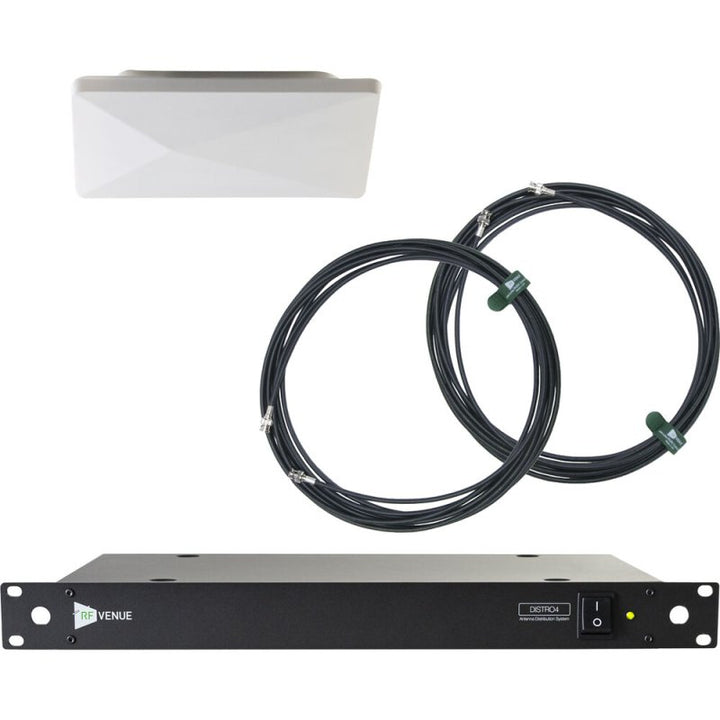

D-ARCDISTRO4

The new Diversity Architectural Antenna by RF Venue is a high performance antenna system for wireless microphones. Featuring a slim profile enclosure, the Diversity Architectural Antenna can be installed in any position on a wall or ceiling and can be painted to match any interior. Using a unique patent-pending dual-feed antenna design, both A and B diversity connections are provided, so there's no need to install two separately spaced antennas resulting in a more professional look that room designers and architects appreciate.

About the DISTRO4

DISTRO4 is a 4-way active antenna splitter plus cascade port with external power that allows you to share one pair of diversity antennas with up to 5 wireless receivers. Built in a full metal housing it ships with 8 BNC cables and 4 dc power cables to connect up your receivers. Multiple DISTRO4s can be connected together up to 25 receivers to a single diversity pair of antennas.

To utilize directional antennas with more than two receivers, an antenna distributor is the right tool for the job. With a single Diversity Fin and DISTRO4, you can avoid crosstalk bleed from multiple whip antennas, and remove questionable wall warts and unneeded powerstrips that can cause other avoidable issues.

About RF Venue Coaxial Cables

Coaxial cabling can make the difference between flawless RF performance and total system failure. Even the slightest crimp or ding in coaxial cable can cause signals to drop sharply or short out.

RF Venue provides premium made in USA low loss, 50O RG8X coaxial cable with BNC male connectors for wireless audio applications. Our cables are custom made to our specifications: double shielded braid over foil with a perfect balance between loss and flexibility. All cables are terminated in-house and QC on calibrated Agilent network analyzers for guaranteed performance. RF Venue stocks a variety of lengths from 5' to 150'.
