Description

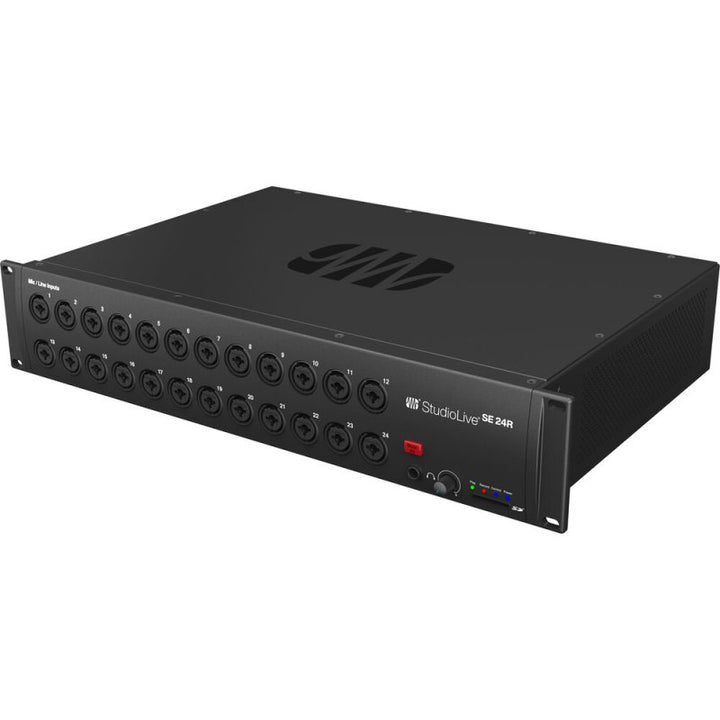

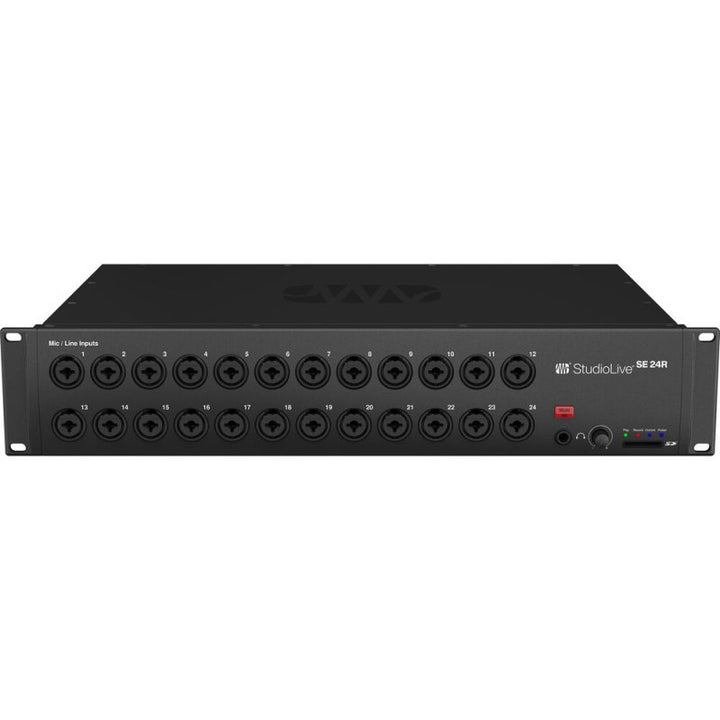

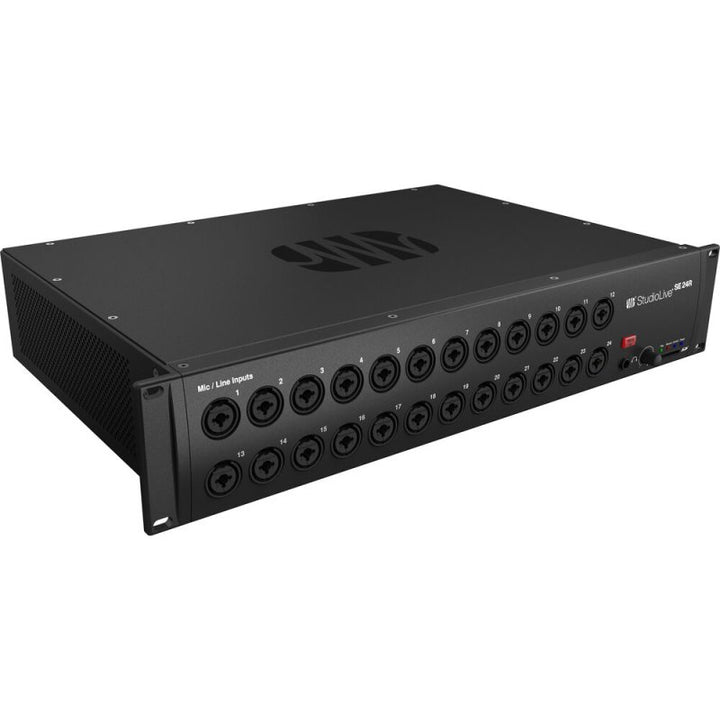

The PreSonus StudioLive SE 24R is a 40-channel digital rack mixer with 24 recallable XMAX-R mic preamps, powered by the FLEX DSP Engine. It delivers vintage-style EQ and compression on every input and bus, and functions as a standalone rack mixer, AVB-networked stage box, or monitor mixer in a compact rackmount chassis.
Mixing and DSP
Sixteen FlexMixes can be configured as auxes, subgroups, or matrix mixes with access to all 24 inputs and buses. Four dedicated FX mixes with stereo returns and 24 DCA groups provide precise control over large channel counts and complex mixes. Four subgroups simplify processing for grouped sources. Fat Channel processing delivers studio-quality sound with vintage-modeled EQ and compressor options on every channel and bus.
Recording and Interface
A built-in 64x64 USB audio interface provides high-channel-count recording and playback to your DAW. An onboard stereo SD card recorder captures any mix without a computer. Each channel can switch between analog, USB, SD, and AVB sources for seamless integration. Includes Capture multitrack recording software with Virtual Soundcheck and Fender Studio Pro DAW.
AVB Networking
Milan-certified AVB networking enables plug-and-play use as a stage box or monitor mixer for StudioLive Series III consoles. Create a complete networked system with other StudioLive Series III products. Optional Dante connectivity is available with the AVB-D16 bridge. Universal Control remote mixing software with Offline Editor ensures complete control from anywhere. QMix-UC provides personal monitor control for iOS and Android.

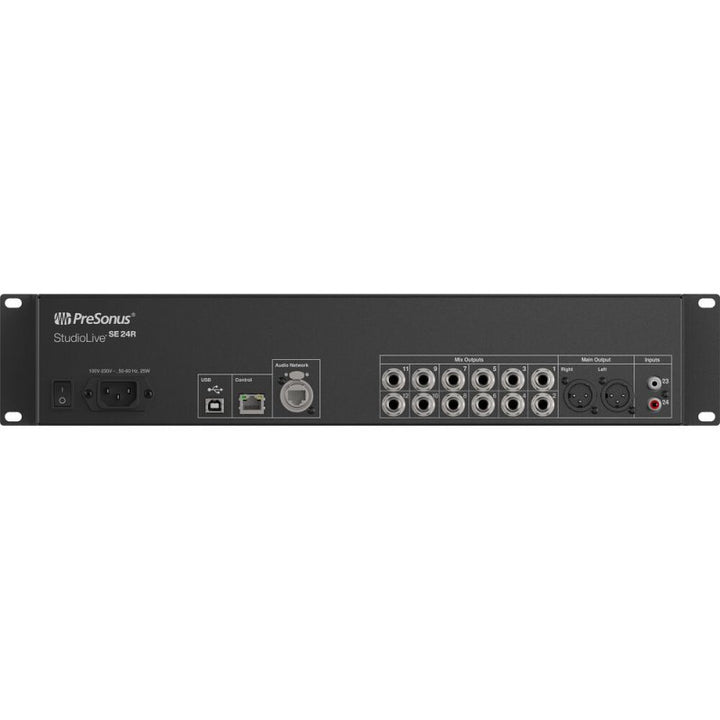

Inputs and Outputs
- 24 locking combo XLR/TRS mic/line inputs with recallable XMAX-R preamps
- 16 FlexMix outputs
- Main stereo outputs
- Headphone output
- AVB audio network port
- Ethernet control network port
- USB 2.0 Type-B recording port
- SD card slot for stereo recording
Specifications
- Mixing channels: 40
- XMAX-R preamps: 24 (recallable)
- FlexMixes: 16 (configurable as aux, subgroup, or matrix)
- FX mixes: 4 with stereo returns
- DCAs: 24
- Subgroups: 4
- USB interface: 64x64
- AVB networking: Milan-certified
- Form factor: Rackmount
In the Box
- PreSonus StudioLive SE 24R
- Quick Start Guide
