Description
The PreSonus StudioLive SE 16R is an 18-channel digital rack mixer powered by the FLEX DSP Engine, equipped with 16 fully recallable XMAX-R mic preamps. It delivers vintage-style EQ and compression on every channel and bus, and functions as a standalone rack mixer, AVB-networked stage box, or monitor mixer in a compact 1U rackmount chassis.
Mixing and DSP
Six FlexMixes can be individually configured as aux mixes, subgroups, or matrix mixes. Two dedicated FX mixes with stereo returns provide lush reverbs and delays without consuming valuable buses. Fat Channel processing delivers studio-quality sound with vintage-modeled EQ and compressor options on every channel and bus.
Recording and Interface
A built-in 18x18 USB audio interface provides multitrack recording to your DAW. An onboard stereo SD card recorder captures any mix without a computer. Each channel can switch between analog, USB, SD, and AVB sources, making hybrid workflows effortless. Includes Capture multitrack recording software with Virtual Soundcheck and Fender Studio Pro DAW.
AVB Networking
Milan-certified AVB networking allows the SE 16R to function as a plug-and-play stage box or monitor mixer for StudioLive Series III consoles. Optional Dante connectivity is available with the AVB-D16 bridge. Universal Control remote mixing software provides complete wireless control, with Offline Editor support for mix preparation anywhere.

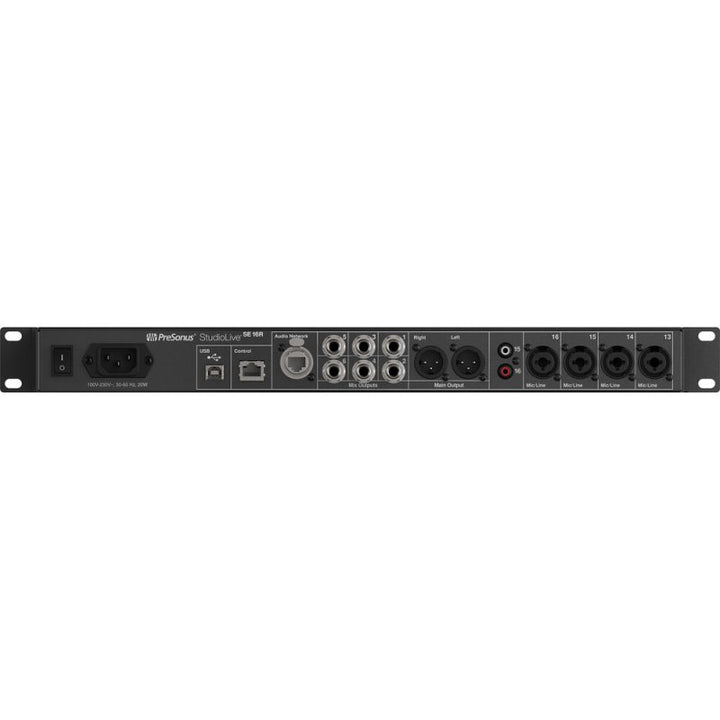

Inputs and Outputs
- 16 locking combo XLR/TRS mic/line inputs with recallable XMAX-R preamps
- 6 FlexMix outputs
- Main stereo outputs
- Headphone output
- AVB audio network port
- Ethernet control network port
- USB 2.0 Type-B recording port
- SD card slot for stereo recording
Specifications
- Mixing channels: 18
- XMAX-R preamps: 16 (recallable)
- FlexMixes: 6 (configurable as aux, subgroup, or matrix)
- FX mixes: 2 with stereo returns
- USB interface: 18x18
- AVB networking: Milan-certified
- Form factor: Rackmount
In the Box
- PreSonus StudioLive SE 16R
- Quick Start Guide
