QUANTUM-HD2

Beneath its robust chassis, the Quantum HD 2 contains an armada of premium recording tech. Custom-designed low-latency drivers are complemented by high-caliber converters that employ up to 124dB of dynamic range to maximize clarity and signal preservation, ensuring that audio is crystal clear and brimming with detail from input to playback. For its pair of combination mic/line jacks, PreSonus debuted their next-gen MAX-HD preamps, capable of up to +75dB of gain across a formidable 20Hz, 20kHz range, resulting in unmatched transparency and clarity via digitally attenuated analog character. With impressive pream…

Key Features

• Elegant form factor blends ergonomic accessibility with a minimal footprint, ensuring maximum control without sacrificing real estate in your setup
• Auto Gain function matches gain levels for your mic or instrument signal to optimize input for peak-free recording
• MAX-HD preamps supply next-gen clarity via digitally controlled analog processing with up to +75dB of gain and unrivaled transparency
• Loopback support means monitor and streaming mixes are painlessly produced whenever needed
• Universal Control App guarantees comprehensive control over interface capabilities to make solo, group, live, studio, and broadcast capture a breeze
• ADAT optical connectors and S/PDIF port expand production, composition, and recording opportunities to seamlessly integrate MIDI connectivity and digital gear

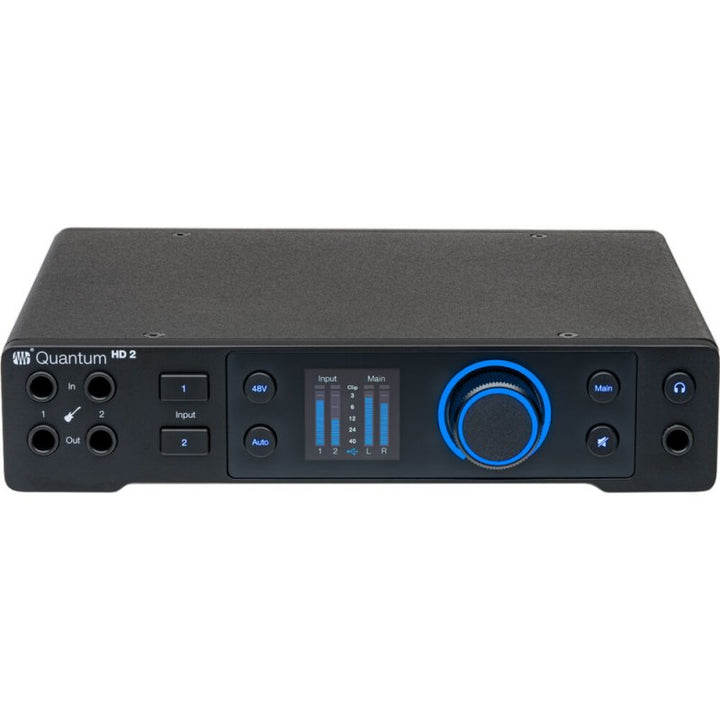

• Vivid LED metering provides a balance of detailed information in real time without disrupting your recording experience

Overview

What's more, the Quantum HD 2's Auto Gain capability dials in the optimum gain levels for microphone and instrument signals, teeing you up for the perfect take every time.

Versatile interfacing with Fender-designed finesse

Through a collaborative effort with Fender, the Quantum HD 2 was engineered to facilitate recording for virtually any style and environment, including a pair of front-mounted instrument inputs that feature dedicated re-amp outputs, supplying guitarists and bassists with user-friendly plug-and-play accessibility. Its vivid LED display gives users real-time feedback through a thoughtfully-arranged interface, intentionally designed to deliver relevant details without distraction. To expand the interface's interoperative potential, the Quantum HD 2 accommodates 16 channels via ADAT optical connectors at 48kHz, alongside a stereo-capable S/PDIF port and MIDI compatibility. Moreover, its balanced stereo output jacks are DC-coupled, opening the possibility of sending CV signals to compatible modules, synthesizers, effects units, or pedals. Plus, the Quantum HD 2 includes a built-in Loopback capability, making quick work of crafting monitor or streaming mixes.

Specifications

• Computer Connectivity: USB 2.0
• Form Factor: Desktop
• Simultaneous I/O: 20 x 24
• Number of Preamps: 2
• A/D Resolution: 32-bit/192kHz

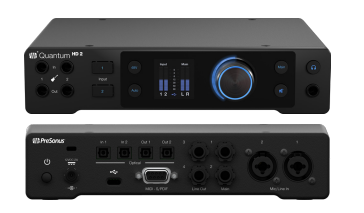

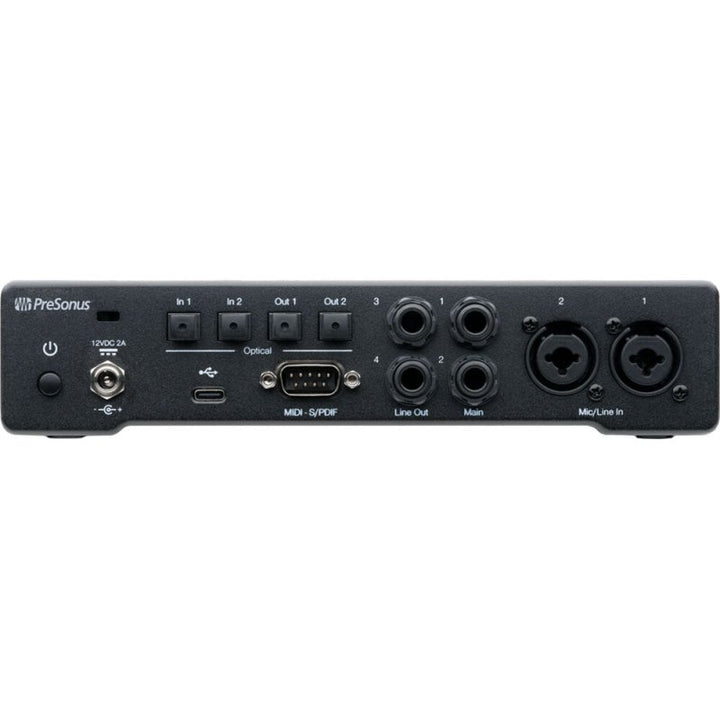

• Analog Inputs: 2 x XLR-1/4" combo (mic/line), 2 x 1/4" TRS (insturment)
• Analog Outputs: 4 x 1/4" TRS
• Digital Inputs: 2 x Optical
• Digital Outputs: 2 x Optical
• MIDI I/O: In/Out
• USB: 1 x USB-C
• Software: Fender Studio Pro
• Power Supply: 12V DC power supply (included)
• Height: 1.9"

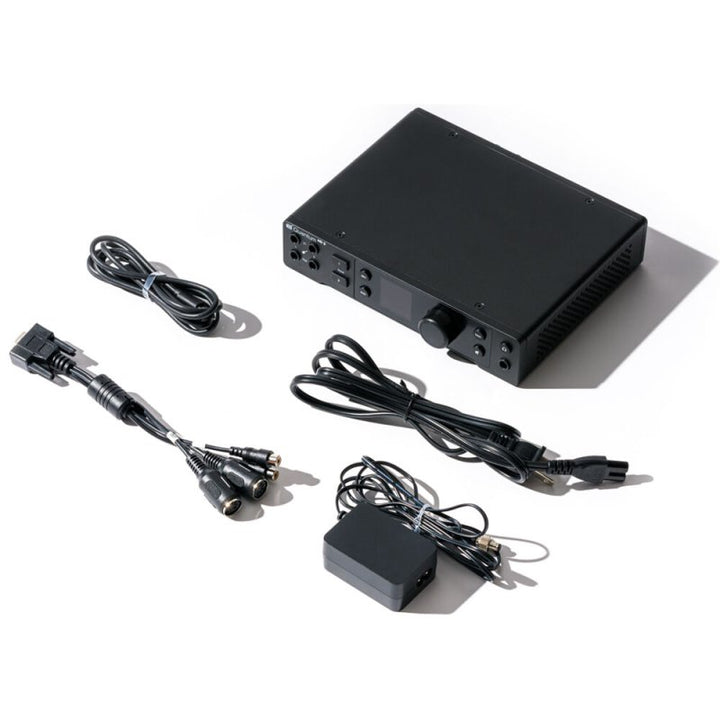

In the Box

• PreSonus QUANTUM-HD2
• Quick Start Guide
