Description
The Lewitt DTP 640 REX is a dual-element kick drum microphone that pairs a phase-aligned dynamic capsule with a permanently polarized condenser capsule in one housing. Each element has its own output via the included 5-pin to dual 3-pin XLR Y-cable, so you can blend punch and low-end body on separate mixer channels. A three-position Enhanced Frequency Response switch and switchable pre-attenuation pad give you flexible tone shaping for studio and live kick drum work.
Features
- Dynamic and condenser capsules in a single cardioid housing
- Separate outputs for independent level and EQ control of each element
- Three switchable Enhanced Frequency Response settings (FFR, Dynamic EFR, Dual EFR)
- Switchable pre-attenuation pad: 0 dB, -10 dB, and -20 dB
- Dynamic capsule tuned for kick attack; condenser captures shell low end and definition
- Hardened hexagonal ruthenium-galvanized steel mesh grille
- Solid die-cast metal body built for stage and studio use

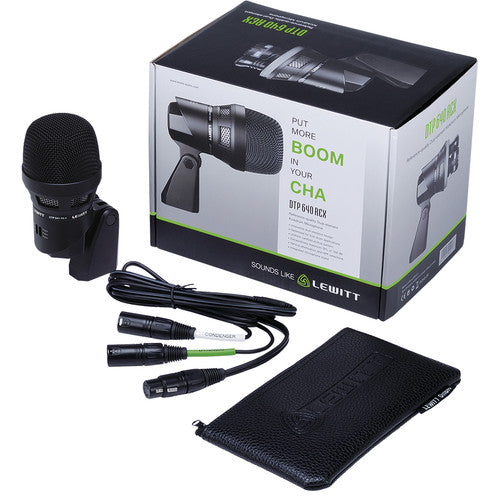

- Includes DTP 40 Trs Y-cable and transport bag
Specifications
- Type: Dynamic moving coil and permanently polarized condenser
- Polar pattern: Cardioid
- Transducer diameter: 31.7 mm dynamic, 22.4 mm condenser
- Sensitivity: 0.4 mV/Pa (-69 dBV/Pa) dynamic, 2 mV/Pa (-54 dBV/Pa) condenser (FFR)
- Self-noise: 28 dB (A)
- Max. SPL: 150 dB SPL at 0.5% THD, 0 dB attenuation
- Dynamic range: 122 dB (A), condenser
- Internal impedance: 500 Ω dynamic, 200 Ω condenser
- Phantom power: 48 V ± 4 V (condenser element only)
- Connector: Gold-plated 5-pin XLR (1.5 m dual-shielded Y-cable to two 3-pin XLR)
- Dimensions: 71 mm dia. x 158 mm (2.8" dia. x 6.2")
- Weight: 755 g (27.3 oz)
Also suited for toms, percussion, and other bass-heavy sources where you want the control of a dual-capsule setup in a single mic body.
