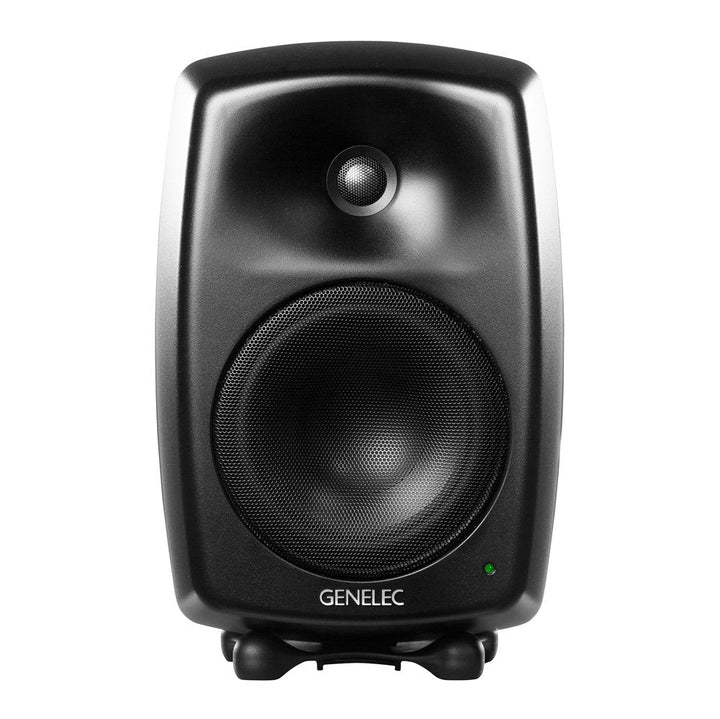

Genelec 8340A 6.5" SAM Studio Monitor (Black)
Color
Talk to our Experts
Talk to our Experts
Have questions about this product? Our team is here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description
The Genelec 8340A is a Smart Active Monitor (SAM) featuring a 6.5" bass driver, 3/4" metal dome tweeter, and 300W of Class D amplification. With GLM room calibration and both analog and digital AES/EBU connectivity, the 8340A delivers elevated monitoring precision with bass extension to 38 Hz (-6 dB) and 110 dB of output. Built for medium-sized control rooms and professional facilities where calibrated accuracy and high SPL capability are both required.
Smart Active Monitoring (SAM)
- GLM calibration: Automated room compensation via Genelec Loudspeaker Manager software over RJ45 network
- Room-adaptive DSP: Multi-band equalization compensates for standing waves, reflections, and boundary effects at the listening position
- System alignment: Level alignment (60 dB range) and delay alignment (up to 200 ms) for stereo, surround, or immersive systems
- Digital audio: AES/EBU single-wire input and output supporting 16-24 bit, 32-192 kHz
Acoustic Design
- Minimum Diffraction Enclosure (MDE): Aluminium enclosure with flowing curves for minimal edge diffraction
- Directivity Control Waveguide (DCW): Controlled directivity for a wide, uncoloured sweet spot
- Iso-Pod stand: Decoupling and tilt adjustment for precise axis alignment
- Intelligent Signal Sensing (ISS): Automatic standby mode (under 1W idle)
Specifications
- Finish: Black
- Type: 2-way SAM active monitor
- Bass driver: 6.5" (165 mm) cone
- Treble driver: 3/4" (19 mm) metal dome
- Amplifier power: 150W + 150W (Class D)
- Frequency response: 45 Hz - 20 kHz (+/-1.5 dB, GLM calibrated)
- Frequency range: 38 Hz - 22 kHz (-6 dB)
- Max SPL: 110 dB @ 1 m
- Crossover frequency: 2.6 kHz
- Analog input: XLR balanced (10 kOhm)
- Digital input: AES/EBU XLR (16-24 bit, 32-192 kHz)
- Digital output: AES/EBU XLR thru
- Control network: 2x RJ45 (GLM)
- Mains voltage: 100-240 VAC, 50/60 Hz
Dimensions
- Dimensions (H x W x D): 14.4 x 9.3 x 8.8 in (365 x 237 x 223 mm)
- Weight: 8.4 kg / 18.5 lb
In the Box
- Genelec 8340A monitor (single)
- Mains cable (1.8 m)
- RJ45 network cable (5 m)
- Operating manual
