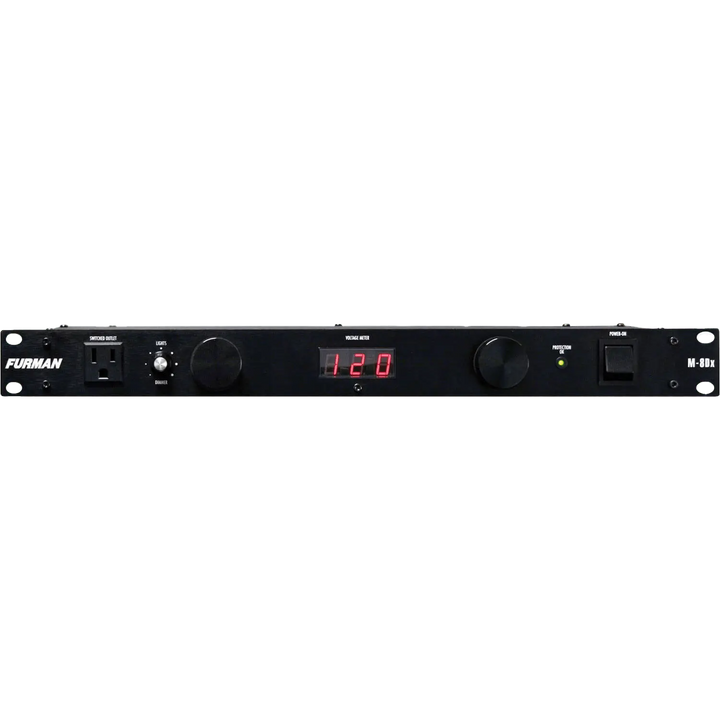

Merit Series M-8Dx Power Conditioner with Pull-out Lights and Digital Voltmeter
Talk to our Experts
Talk to our Experts
Have questions about this product? Our audio experts are here to help!
- Call us: (647) 953-1559
- Email: contact@blackoutaudio.com
- Live Chat: Monday-Friday 12:30pm to 7:30pm
Shipping, Returns & Financing
Orders above $199 qualify for Free Standard Shipping.
For international shipping, please request a quote through the contact form.
| Province | Standard Shipping | Express Shipping |
|---|---|---|
| ON | $19 | $39 |
| QC, MB | $29 | $69 |
| Other | $39 | $119 |
Payment & Financing Options
We accept credit and debit cards, Apple Pay, Google Pay, Shop Pay, and PayPal.
Affirm financing is available for most products. To access flexible payment options, select Shop Pay when checking out. Please note that order cancellations or refunds are not available for financed purchases.
Description
The Furman M-8Dx is a 15-amp 1U rackmount power conditioner from the Merit Series, delivering reliable surge protection and RFI/EMI noise filtering at an accessible price point — perfect for any instrument rig, home studio, or portable rack system. Eight rear-panel outlets with wall-wart spacing accommodate bulky power supplies without blocking adjacent outlets, while the 3-digit LED voltmeter keeps you informed of incoming line voltage at all times. Two pull-out incandescent rack lights add hands-free rear-rack illumination to complete the package.
Surge Protection & Filtering
- Spike protection: Clamps transient voltages from line to neutral with zero ground leakage, defending connected equipment from lightning and switching transients.
- RFI/EMI filtration: Transverse-mode noise attenuation of more than 23 dB from 200 kHz to 10 MHz keeps AC noise out of your signal chain.
- 12,000A peak impulse current: Rated for severe surge events with 170 joules of energy dissipation capacity.
Practical Rack Features
- Wall-wart friendly spacing: Rear-panel outlets are spaced to accommodate bulky adapters and power supplies without blocking neighbors.
- 3-digit LED voltmeter: Displays incoming voltage on the front panel so you always know the health of your power supply.
- Pull-out incandescent rack lights: Two 120V, 4W lamps slide out independently for illuminating the back of the rack.
- 6 ft. captive cord: 14 AWG with 3-conductor Edison plug — short enough to keep your power distribution tidy.
Specifications
- Maximum Output Current: 15A
- Outlets: 8 x Rear, 1 x Front
- Operating Voltage: 120VAC 60 Hz
- Energy Dissipation: 170 joules
- Peak Impulse Current: 12,000A
- Noise Attenuation: >23 dB, 200 kHz–10 MHz
- Dimensions: 19" W × 7.5" D × 1.75" H (1U)
- Weight: 6 lbs.
