Description

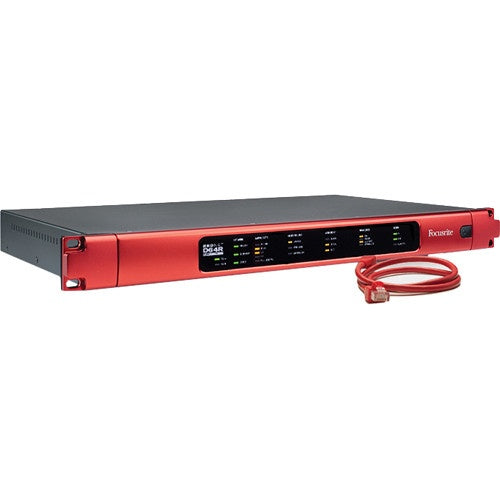

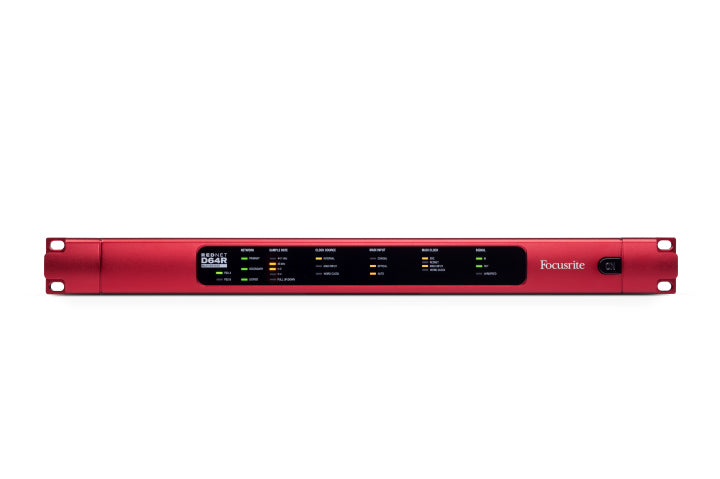

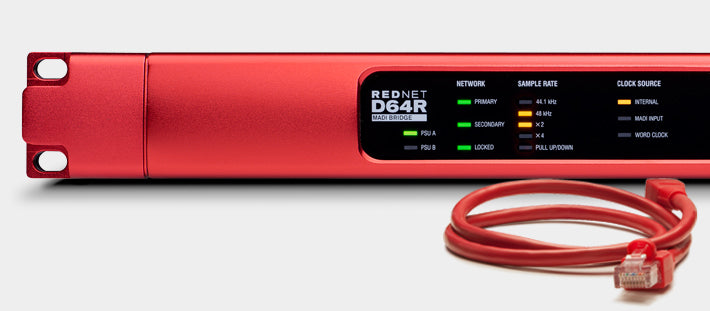

The Focusrite RedNet D64R is a 1U rackmount interface that bridges MADI (AES10) systems with Dante audio-over-IP networks. It supports up to 64 bidirectional channels at 44.1/48kHz, 32 channels at 88.2/96kHz, and 16 channels at 176.4/192kHz, with both coaxial (BNC) and optical (Duplex SC) MADI connections.
Sample Rate Conversion
Sample rate conversion on every input and output allows MADI and Dante systems to operate at different sample rates simultaneously. The D64R supports both standard (64-channel) and varispeed (56-channel) MADI modes, with automatic detection of incoming channel count and sample rate. Dual etherCON network ports and dual internal power supplies provide full redundancy.

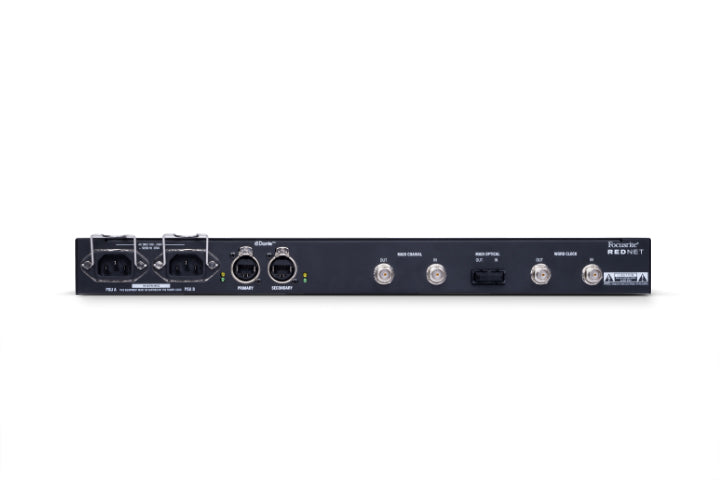

Connectivity
- MADI coaxial I/O on BNC (75 ohm)
- MADI optical I/O on Duplex SC (multi-mode fiber, per AES10:2008)
- Word Clock input on BNC (switchable 75 ohm termination)
- Word Clock output on BNC
- 2 x etherCON Dante ports (redundant or switched mode, compatible with standard RJ45)
- 2 x IEC power inlets with retaining clips (dual redundant PSUs)
Specifications
- Channel count: 64 at 48kHz (56 in varispeed mode), 32 at 96kHz, 16 at 192kHz
- Dynamic range: greater than 139dB (-60dBFS method)
- THD+N: less than -130dB (0.00003%)
- Sample rate conversion on all inputs and outputs
- MADI sample rate lock range: 41 to 216kHz
- Supported sample rates: 44.1 to 192kHz at 24-bit
- Clock sources: internal, MADI, Word Clock, Dante network
- Latency: 43 to 196 samples (network and MADI sample rate dependent)
- Form factor: 1U rackmount
- Power: 2 x internal PSU, 100-240V, 50/60Hz, 30W
