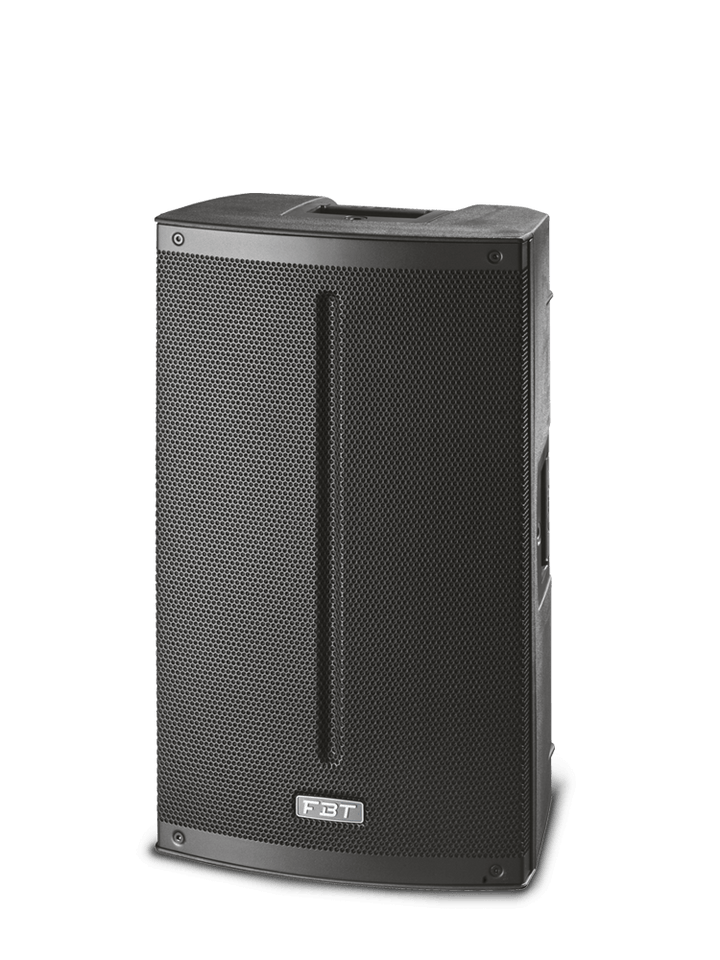

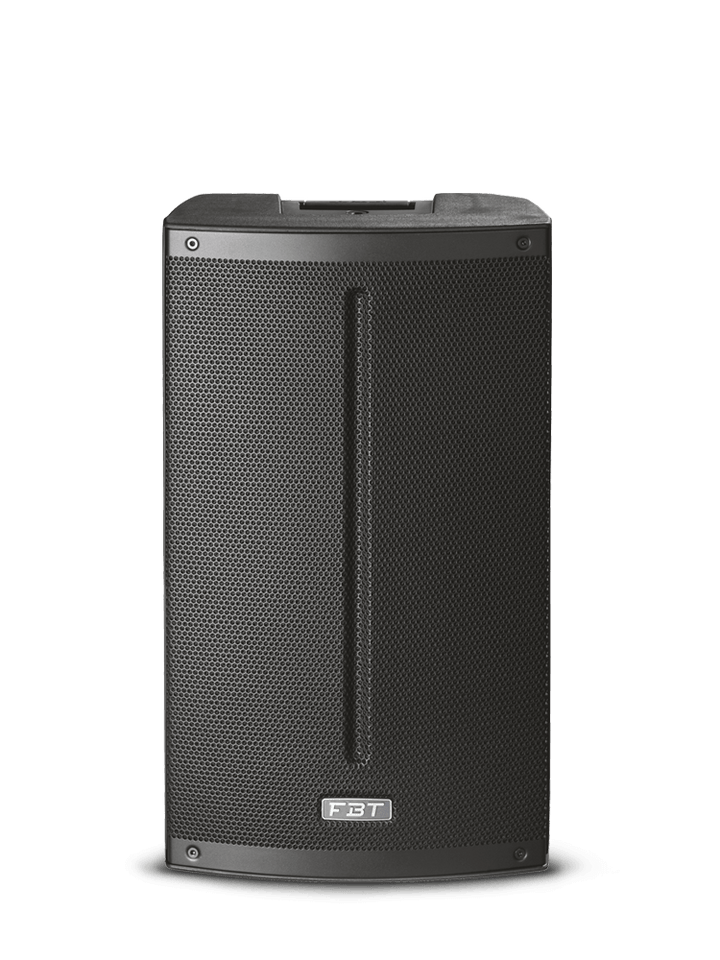

X-LITE 112 800W Passive 2-Way Portable Loudspeaker (Black) - 12"

The FBT X-Lite 112 is a high-performance passive loudspeaker designed to deliver exceptional sound in both live sound applications and fixed installations. Featuring a lightweight yet durable polypropylene molded cabinet, the X-Lite 112 combines sleek design with rugged construction to provide a speaker that can perform in a variety of environments. Its modern black finish and compact size make it an ideal solution for applications where both aesthetics and audio quality are important. Additionally, the asymmetrical shape of the cabinet allows for easy use as a floor stage monitor, providing flexibility in deployment.

The FBT X-Lite 112 is built with a 2-way design, incorporating a 12-inch low-frequency woofer with a 2.5-inch voice coil and a 1-inch throat, 1.4-inch voice coil high-frequency compression driver. Together, these components deliver a frequency response range from 55Hz to 20kHz, ensuring high-fidelity sound reproduction for both speech and music. With a maximum SPL of 126.5dB, the X-Lite 112 can handle a wide range of performance situations, from smaller venues to medium-sized installations. The speaker's 90° horizontal x 60° vertical constant directivity horn ensures consistent and wide coverage, making it perfect for evenly distributing sound across various listening areas.

Designed for versatility, the FBT X-Lite 112 features a fixed 1.8kHz crossover frequency, providing smooth transition between the low-frequency woofer and high-frequency driver. The speaker's nominal impedance of 8 ohms makes it compatible with a variety of amplifiers, with a recommended amplifier power of 400W RMS. The speaker can handle short-term peaks of 800W, ensuring clean, distortion-free sound even at high volumes. The built-in polypropylene molded enclosure is equipped with a front face steel grille for added durability and protection against external damage, while four M10 rigging points provide flexible suspension and mounting options.

Whether used in a fixed installation or as part of a mobile sound system, the FBT X-Lite 112 offers excellent performance and installation flexibility. The speaker features a standard 1.38-inch speaker stand socket, allowing for easy mounting on speaker stands, and the optional mounting brackets make it suitable for wall or ceiling mounting. With its lightweight design, high-quality components, and versatile mounting options, the FBT X-Lite 112 is a great choice for applications where both sound quality and ease of installation are paramount.

Features

• 2-way passive speaker with 12-inch low-frequency woofer and 1-inch throat, 1.4-inch voice coil high-frequency compression driver
• Frequency response from 55Hz to 20kHz for full-range sound
• Maximum SPL of 126.5dB, suitable for small to medium venues
• 90° horizontal x 60° vertical constant directivity horn for even sound coverage
• Recommended amplifier power: 400W RMS, with a peak power handling of 800W
• Fixed 1.8kHz crossover frequency for smooth integration between drivers
• Durable polypropylene molded enclosure with front face steel grille for protection
• 4 M10 rigging points for flexible suspension and mounting options
• Standard 1.38-inch speaker stand socket for portable setups
• Dimensions: 14.01 x 24.37 x 14.05 inches, net weight of 36.15 lbs

Specifications

General

• Configuration: 2-way
• Recommended Amplifier: 400W RMS
• Long Term Power: 200W
• Short Term Power: 800W
• Nominal Impedance: 8 Ohms

Acoustical

• Frequency Response: 55Hz - 20kHz
• Low Frequency Woofer: 12-inch, 2.5-inch coil
• High Frequency Driver: 1-inch, 1.4-inch coil
• Sensitivity (@1W/1m): 97dB
• Max SPL cont/peak: 123.5dB / 126.5dB
• Dispersion: 90° x 60° HxV
• Crossover Frequency: 1.8kHz
• Recommended HP Filter: HP 45Hz - 12/24dB/oct.
• Recommended External Filter: FBT DSP Processor

Inputs/Outputs

• Input Connector: 2 x Speakon

Mechanical

• Dimensions (WHD): 14.01 x 24.37 x 14.05 inches
• Net Weight: 36.15 lbs
