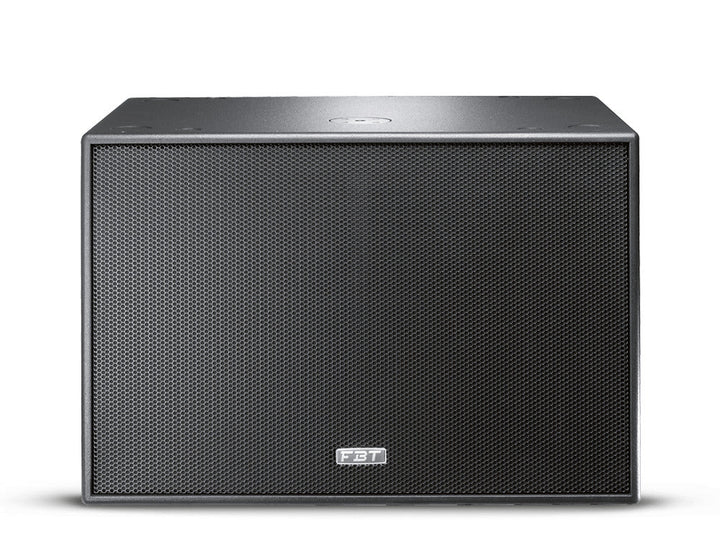

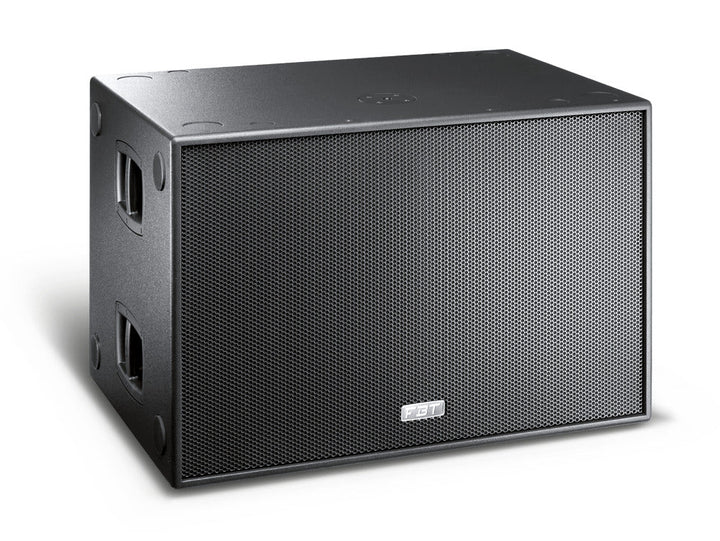

SUBLINE 218SA 1200W Processed Active Subwoofer - 18"

The SUBLINE 218SA active subwoofe is built in birch 5/8” plywood with scratch & scuff resistant paint finish. Aimed to extend the low frequency response to a wide range of FBT speaker systems. Designed with a Band Pass configuration

It has a Class D amplifier, switch mode power supply and Digital Signal Processor with presets to match any other FBT speaker. IN/OUT stereo, it is possible to use only one subwoofer with Left and Right satellites.

Neutrik TRUE1 Power connection negates the need for a switch and provides a secure connection.

Additional optional wheels, ergonomic integrated carrying handles and light cabinet allow an easy transport.

• Bass-reflex design Subwoofer
• 2 x 460mm (18”) high excursion woofer with 75mm (3”) voice coil, custom made for FBT by B&C
• Frequency response from 30Hz to 120Hz
• 1200W RMS Class D power amplifier with switch mode power supply
• DSP with 6 presets, 3 x EQ with 2 x LPF crossover settings, 6-step digital delay line

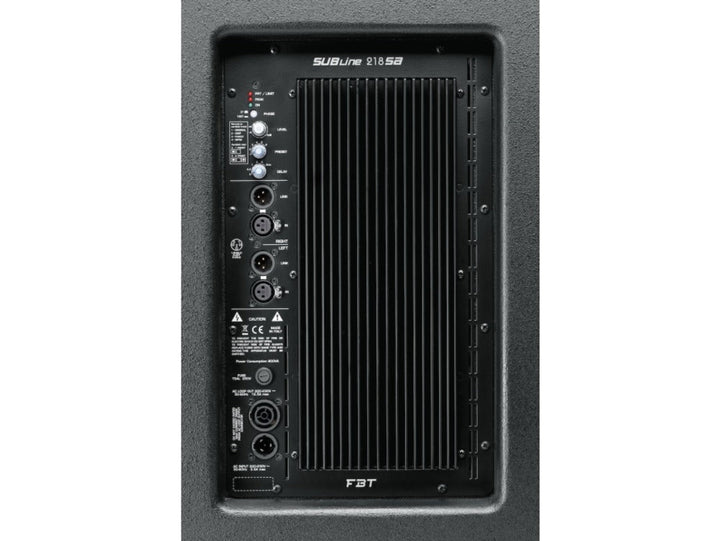

• Control panel with stereo XLR in/out, Volume. EQ presets, Delay, Phase reversal switch 0°-180°, 3 status LED indicators
• 18mm Baltic birch plywood enclosure with heavy duty coating
• 2 x M20 threads for stand pole mount and 4 x aluminum ergonomic FBT handles, optional wheels
• Provides additional low frequency extension when used along with MUSE 210LA active line array system

• Configuration: 1 Way bass reflex
• Frequency response: 30Hz - 120Hz
• Low frequency woofer: 2x 18
• Maximum SPL cont/peak: 136 / 140db
• Dispersion: Omnidirectional
• Input impedance: 22kohm
• Input connector: Stereo XLR with Link and HP Filter out
• Net Dimension (WxHxD): 970 x 661 x 670mm
• Net Weight: 81kg
• Transport Dimension (WxHxD): 1150 x 780 x 800m
• Transport Weight: 94kg
• AC Power requirements: 1000VA
• Built-in amplifier LF/HF: 1200W RMS
• Built-in amplifier peak LF/HF: 2400w
• Power cord: 5m TrueCon1
